Generator replacement parts for 2012 Honda VT1300CSA

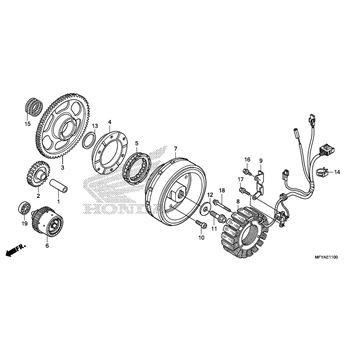

OEM Parts Honda 2012 Honda VT1300CSA Generator

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	PIN, PISTON Part #: 13111-KE6-P00 Required per assembly: 1 Not Available
02	GEAR (27T) Part #: 28101-MCH-000 Required per assembly: 1 $80.17 $66.83 - + Add to cart
03	GEAR (76T) Part #: 28110-MCH-000 Required per assembly: 1 $187.11 $156.01 - + Add to cart
04	CLUTCH OUTER Part #: 28121-MAH-000 Required per assembly: 1 $163.64 $132.46 - + Add to cart
05	CLUTCH, ONE-WAY Part #: 28126-MK5-004 Required per assembly: 1 $115.85 $92.39 - + Add to cart
06	LIMITER, TORQUE Part #: 28140-MCH-000 Required per assembly: 1 $366.49 $296.66 - + Add to cart
07	FLYWHEEL Part #: 31110-MFR-671 Required per assembly: 1 $600.07 $485.74 - + Add to cart
08	STATOR Part #: 31120-MFR-671 Required per assembly: 1 $476.81 $397.52 - + Add to cart
09	CLAMP Part #: 32961-MEA-670 Required per assembly: 1 $2.34 $2.17 - + Add to cart
10	BOLT, SOCKET, (8MM) Part #: 90010-MCH-000 Required per assembly: 6 $3.39 - + Add to cart
11	BOLT, FLANGE, (12X45) Part #: 90023-MBT-010 Required per assembly: 1 $7.70 $6.72 - + Add to cart
12	WASHER (12.2X40X5) Part #: 90402-MBA-A40 Required per assembly: 1 $6.15 $5.47 - + Add to cart
13	WASHER (34MM) Part #: 90451-383-000 Required per assembly: 1 $10.33 $8.87 - + Add to cart
14	CLIP, CABLE, (20MM) Part #: 90690-GHB-661 Required per assembly: 1 $3.15 $2.93 - + Add to cart
15	BEARING (34X44X24) Part #: 91021-MCH-003 Required per assembly: 1 $33.94 $28.30 - + Add to cart
16	BOLT, FLANGE, (6X12) Part #: 96001-06012-00 Required per assembly: 1 $2.79 $2.60 - + Add to cart
17	BOLT, FLANGE, (6X20) Part #: 96001-06020-00 Required per assembly: 2 $2.27 $2.10 - + Add to cart
18	BOLT, FLANGE, (6X45) Part #: 96001-06045-00 Required per assembly: 3 $2.94 $2.73 - + Add to cart
19	BEARING (6000) Part #: 96100-60000-00 Required per assembly: 1 $9.76 $8.40 - + Add to cart
