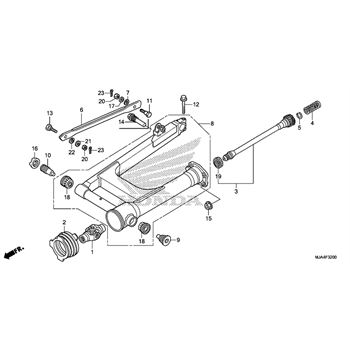

Swingarm (1) replacement parts for 2012 Honda VT750C2F

OEM Parts Honda 2012 Honda VT750C2F Swingarm (1)

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	JOINT, YOKE Part #: 40200-MR6-671 Required per assembly: 1 $363.24 $294.03 - + Add to cart
02	BOOT, JOINT Part #: 40207-MT3-610 Required per assembly: 1 $30.23 $24.48 - + Add to cart
03	SHAFT, PROPELLER Part #: 40210-MEG-000 Required per assembly: 1 $221.95 $179.66 - + Add to cart
04	SPRING Part #: 40215-ME9-003 Required per assembly: 1 $7.09 $6.24 - + Add to cart
05	RING, STOPPER Part #: 40221-MB0-000 Required per assembly: 1 $5.44 $4.89 - + Add to cart
06	ARM, RR. Part #: 43431-MEG-640 Required per assembly: 1 $22.98 $18.60 - + Add to cart
07	RUBBER, STOPPER, ARM Part #: 43434-ME1-670 Required per assembly: 1 $4.80 $4.36 - + Add to cart
08	SWINGARM, ASSEMBLY, RR. Part #: 52100-MFS-000 Required per assembly: 1 $598.72 $509.65 - + Add to cart
09	BOLT, R., SWINGARM Part #: 90121-MAM-A60 Required per assembly: 1 $13.29 $10.88 - + Add to cart
10	BOLT, L., SWINGARM Part #: 90122-MAM-L40 Required per assembly: 1 $27.72 $22.68 - + Add to cart
11	BOLT, RR. Part #: 90127-393-000 Required per assembly: 1 $5.83 $5.23 - + Add to cart
12	BOLT, FLANGE, (8X32) Part #: 90129-KFG-000 Required per assembly: 1 $3.09 $2.87 - + Add to cart
13	BOLT, RR. Part #: 90133-286-000 Required per assembly: 1 $5.39 $4.85 - + Add to cart
15	NUT, HEX., (10MM) Part #: 90308-MEG-000 Required per assembly: 4 $4.60 - + Add to cart
16	NUT Part #: 90355-469-000 Required per assembly: 1 $20.32 $16.46 - + Add to cart
17	WASHER A Part #: 90524-030-000 Required per assembly: 1 $2.40 $2.22 - + Add to cart
17	WASHER A Part #: 90524-030-000 $2.40 $2.22 - + Add to cart
18	BEARING Part #: 91066-HA7-672 $71.95 $59.99 - + Add to cart
19	OIL SEAL (27X43X7) Part #: 91261-ME9-005 Required per assembly: 1 $14.06 $11.38 - + Add to cart
20	NUT, HEX., (8MM) Part #: 94001-08000-0S Required per assembly: 2 $2.33 $2.16 - + Add to cart
21	WASHER, PLAIN, (8MM) Part #: 94101-08000 Required per assembly: 1 $1.87 $1.73 - + Add to cart
22	WASHER (10MM) Part #: 94111-10000 Required per assembly: 1 $2.37 $2.19 - + Add to cart
23	PIN, SPLIT, (2.0X35) Part #: 94201-20350 Required per assembly: 2 $2.07 $1.91 - + Add to cart
23	PIN, SPLIT, (2.0X35) Part #: 94201-20350 Required per assembly: 2 $2.07 $1.91 - + Add to cart
23	PIN, SPLIT, (2.0X35) Part #: 94201-20350 Required per assembly: 2 $2.07 $1.91 - + Add to cart
