Electrical, Ignition System replacement parts for 2012 Polaris Hawkeye 400 HO 2X4 (A12MB46FZ)

OEM Parts Polaris 2012 Polaris Hawkeye 400 HO 2X4 (A12MB46FZ) Electrical, Ignition System

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

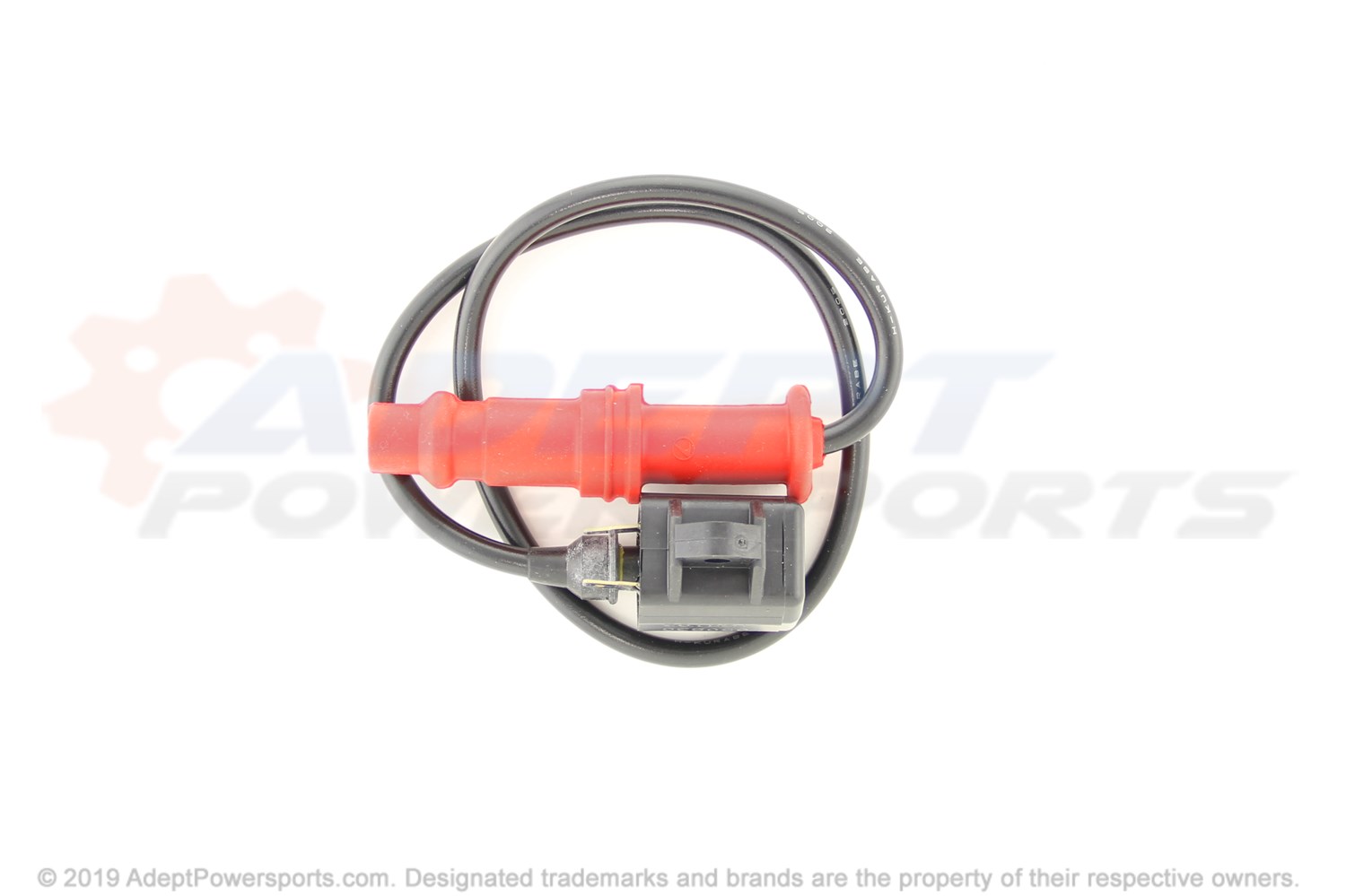

1	ASSEMBLY, IGNITION, COIL Part #: 3089239 Required per assembly: 1 Note: Coil, Ignition Currently Not Available
2	CAP, SPARKPLUG Part #: 3084980 Required per assembly: 1 Note: Cap, Spark Plug Currently Not Available
3	ASSEMBLY, PLATE Part #: 3090061 Required per assembly: 1 Note: Asm., Plate [Incl. 3,5,10,12-15] Currently Not Available
4	ASSEMBLY, PLATE Part #: 3090061 Required per assembly: 1 Note: Asm., Plate [Incl. 3,5,10,12-15] Currently Not Available
4	PLATE Part #: 3089248 Required per assembly: 1 Currently Not Available
5	BEARING, METAL Part #: 3084972 Required per assembly: 1 Note: Metal, Bearing Currently Not Available
6	SPARK PLUG - BKR6E Part #: 3070172 Required per assembly: 1 Note: NGK BKR6E Currently Not Available
7	BOLT & WASHER ASM. Part #: 3081657 Required per assembly: 5 Note: Asm., Bolt and Washer Currently Not Available
8	SEAL, OIL Part #: 3084973 Required per assembly: 1 Currently Not Available
9	O-RING Part #: 3084978 Required per assembly: 1 Currently Not Available
10	FLYWHEEL W/RING GEAR Part #: 3090239 Required per assembly: 1 Currently Not Available
11	ASSEMBLY, SCREW, AND, WASHER Part #: 3089547 Required per assembly: 3 Currently Not Available
12	SCREW&WASHER ASM. Part #: 3084976 Required per assembly: 2 Note: Asm., Screw and Washer Currently Not Available
13	BAND, PULSE Part #: 3089250 Required per assembly: 1 Currently Not Available
14	COIL, PULSER Part #: 3089254 Required per assembly: 1 Currently Not Available
15	SCREW&WASHER ASM Part #: 3081256 Required per assembly: 1 $2.99 $1.73 - + Add to cart
16	CDI SYSTEM COMPLETE Part #: 3090270 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7512024 Required per assembly: 1 Currently Not Available
18	CLAMP-CABLE, NYLON, 5/16" Part #: 7080960 Required per assembly: 1 Currently Not Available
19	NUT Part #: 7541925 Required per assembly: 1 $1.99 $1.15 - + Add to cart
20	SCREW Part #: 7512007 Required per assembly: 1 Currently Not Available
21	BRACKET, CDI Part #: 5246747 Required per assembly: 1 Note: Bracket, CDI Currently Not Available
22	PAD, BULK, FUEL Part #: 8360026 Required per assembly: 1 Currently Not Available
