OEM Parts Polaris 2012 Polaris MILITARY FS WIDETRAK M12PU7EML Shock Towers - M12pu7eml

2012 Polaris MILITARY FS WIDETRAK - M12PU7EML - Shock Towers - M12pu7eml

Shock Towers - M12PU7EML Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SCREW

Part #: 7518179 Required per assembly: 12
Currently Not Available
2

MOUNT, SHOCK/BUMPER, LH

Part #: 1017100-329 Required per assembly: 1
Currently Not Available
2

MOUNT, SHOCK/BUMPER, RH

Part #: 1016306-329 Required per assembly: 1
Currently Not Available
3

NUT

Part #: 7547180 Required per assembly: 2 Note: Nut, Flanged
$3.99
$2.30
-
+
Add to cart
4

SUPPORT, SHOCK, TOWER, LH, W/RELIEF

Part #: 5137469 Required per assembly: 1
Currently Not Available
4

SUPPORT, SHOCK, TOWER, RH

Part #: 5136317 Required per assembly: 1
Currently Not Available
5
Polaris 7515440 Screw

SCREW

Part #: 7515440 Required per assembly: 1
Currently Not Available
6

BRACE, BULKHEAD, RH, BLACK

Part #: 1016493-329 Required per assembly: 1
Currently Not Available
7
Polaris 7517386 Screw

SCREW

Part #: 7517386 Required per assembly: 2 Note: Screw
$2.99
$1.73
-
+
Add to cart
8

SHIELD, HEAT, ALTERNATOR, WIDE

Part #: 5252573 Required per assembly: 1
Currently Not Available
9
Polaris 7661637 Rivet, Interlock, Z

RIVET, INTERLOCK, Z

Part #: 7661637 Required per assembly: 10 Note: Sold in multiples of 50 only
Currently Not Available
10

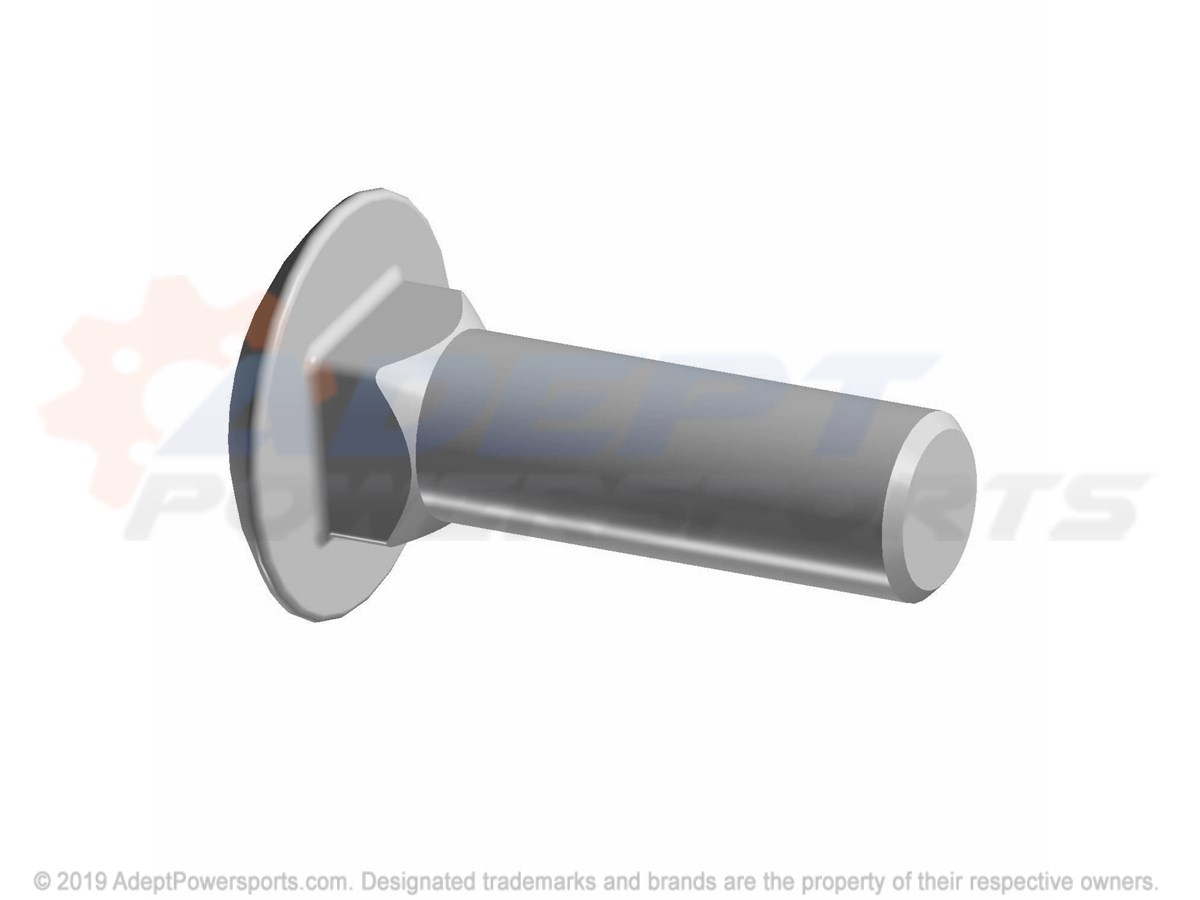

Polaris 7518494 Bolt, Carriage

BOLT, CARRIAGE

Part #: 7518494 Required per assembly: 1
Currently Not Available
11
Polaris 7670146 Retainer

RETAINER

Part #: 7670146 Required per assembly: 1
Currently Not Available
12

RIVET

Part #: 7661130 Required per assembly: 8
Currently Not Available
13

SCREW

Part #: 7518444 Required per assembly: 2
Currently Not Available
14

CHANEL, STRG/SHOCK

Part #: 5137094 Required per assembly: 1
Currently Not Available
