Front Wheels replacement parts for 2012 Polaris RZR 800 EFI/EPS

OEM Parts Polaris 2012 Polaris RZR 800 EFI/EPS Front Wheels

FRONT WHEELS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT Part #: 7547237 Required per assembly: 8 Note: VH76AD Sold in multiples of 10 only Currently Not Available
2	RIM-FRONT 12X6 CAST 26.2 M.BLK Part #: 1521106-458 Required per assembly: 2 Note: VH76AF Currently Not Available
2	RIM-FRONT 12X6 CAST 26.2 M.BLK Part #: 1521106-458 Required per assembly: 2 Note: VH76AF Currently Not Available
2	WELD-RIM, FRT600LB, 12X6 Part #: 1523448-067 Required per assembly: 2 Note: VH76AD Currently Not Available
2	WELD-RIM, FRT600LB, 12X6 Part #: 1523448-067 Required per assembly: 2 Note: VH76AD Currently Not Available
3	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
4	NUT, CASTLE, [4X4] Part #: 7547337 Required per assembly: 2 Note: Nut, Castle ~~$3.99~~ $2.30 - + Add to cart
5	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
6	WASHER, CONE Part #: 7555796 Required per assembly: 4 Currently Not Available
7	HUB-WHEEL FRONT (MACH) Part #: 5137219 Required per assembly: 2 Currently Not Available

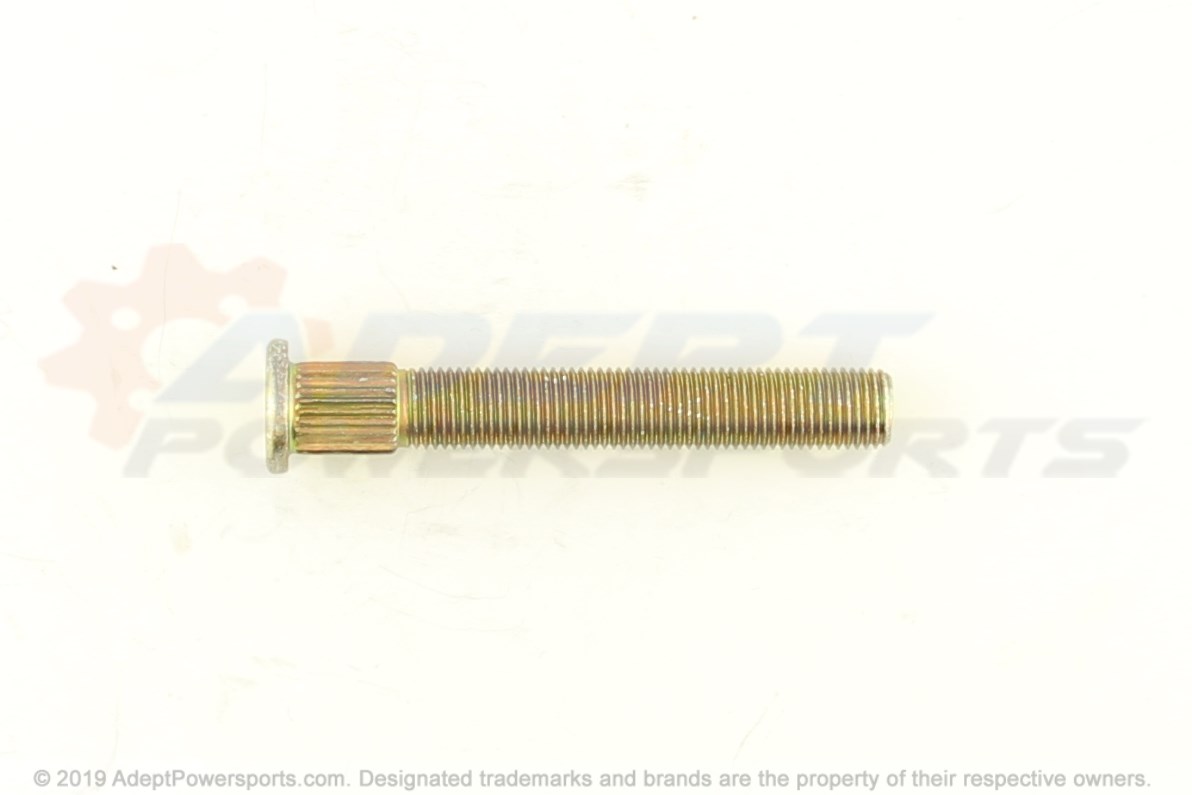

8	STUD Part #: 7518654 Required per assembly: 8 Currently Not Available
9	DISC, BRAKE, FRONT Part #: 5250068 Aftermarket alternatives available Required per assembly: 2 Currently Not Available
10	TIRE, FRONT, 25X8-12 Part #: 5414804 Required per assembly: 2 Currently Not Available
11	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
12	BEARING-BALL SEALED 44X72X33.1 Part #: 3514699 Required per assembly: 2 Currently Not Available
13	CARRIER, BEARING, RH Part #: 5135443 Required per assembly: 1 Currently Not Available
13	CARRIER, BEARING, LH Part #: 5135442 Required per assembly: 1 Currently Not Available
14	CAP, RIM, [USE, W/CAST, RIMS] Part #: 1521128 Required per assembly: 2 Note: VH76AF Currently Not Available
15	NUT, WHEEL Part #: 7547309 Required per assembly: 8 Note: VH76AF Sold in multiples of 10 only Currently Not Available
