OEM Parts Polaris 2012 Polaris RZR 4 800 EFI Side Nets

2012 Polaris RZR 4 800 EFI R12XE76AD/7EAB/EAO - Side Nets

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
2

NET-REAR

Part #: 2684616 Required per assembly: 2 Note: Incl. 8 Qty. 2, 10
Currently Not Available
3

WASHER

Part #: 7556034 Required per assembly: 4 Note: Rear Net
Currently Not Available
4

SCR, #10X3/4, HI/LO

Part #: 7517790 Required per assembly: 4 Note: Rear Net
$3.99
$2.30
-
+
Add to cart
5

NUT

Part #: 7542153 Required per assembly: 2 Note: Nut, Flanged, Nylok
$3.47
$2.30
-
+
Add to cart
6

SCREW

Part #: 7517230 Required per assembly: 2
$1.99
$1.15
-
+
Add to cart
7

WASHER, FLAT

Part #: 7556064 Required per assembly: 4
Currently Not Available
8

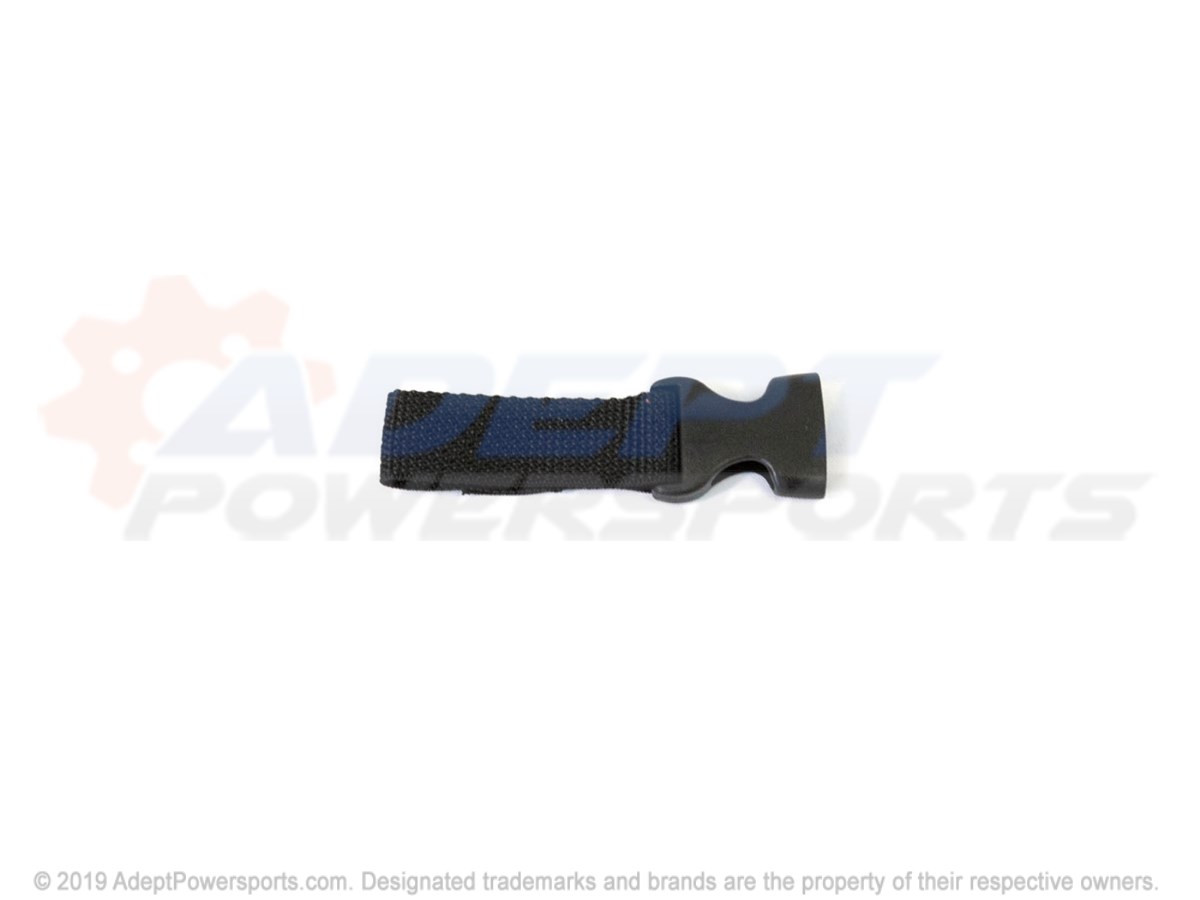

NET-STRAP LATCH (7515118-3000)

Part #: 2684647 Required per assembly: 3
Currently Not Available
9

NET-STRAP LP LCH(7515050-4000)

Part #: 2684648 Required per assembly: 1
Currently Not Available
10

NET-STRAP LOCK (7515118-4000)

Part #: 2684649 Required per assembly: 1
Currently Not Available
