Suspension, Rear replacement parts for 2012 Polaris RANGER 400 4X4 (R12RH45AG/AH/AR)

OEM Parts Polaris 2012 Polaris RANGER 400 4X4 (R12RH45AG/AH/AR) Suspension, Rear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW Part #: 7519043 Required per assembly: 8 Note: Bolt ~~$9.99~~ $5.75 - + Add to cart
2	NUT, FLANGE Part #: 7547333 Required per assembly: 16 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
3	SHAFT-PIVOT 73.96MM ZINC OLIVE Part #: 5137591 Required per assembly: 8 Note: Sold in multiples of 10 only Currently Not Available
4	BUSHING A-ARM SHORT BLACK Part #: 5439270 Required per assembly: 24 ~~$4.99~~ $3.56 - + Add to cart
5	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
6	BOLT, FLANGE Part #: 7518563 Required per assembly: 2 Currently Not Available
7	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 4 Note: FITTING, ZERK (90o) Currently Not Available
8	SHOCK, REAR Part #: 7043548 Required per assembly: 2 Currently Not Available

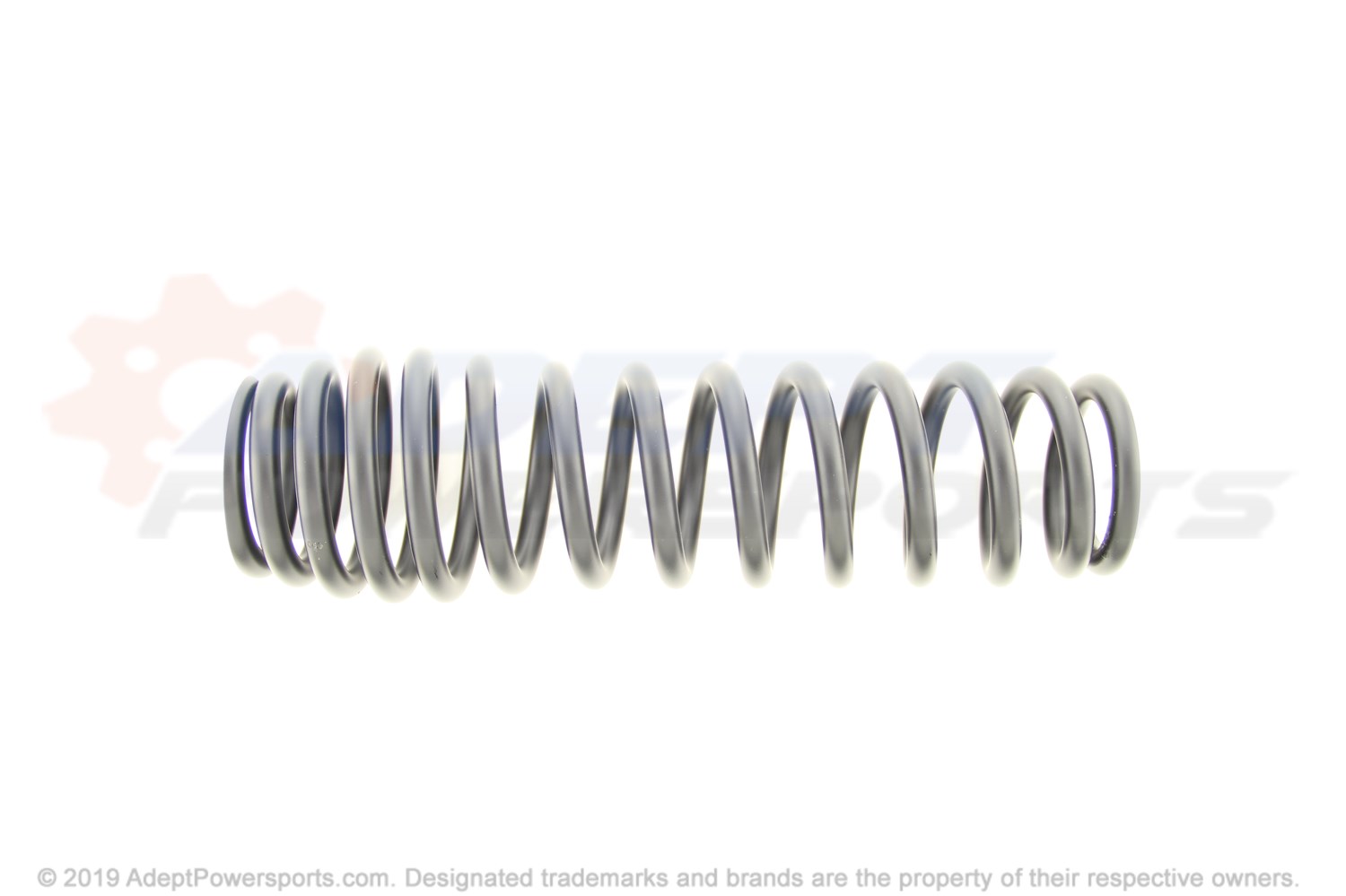

9	SPRING-REAR M. BLK Part #: 7043707-458 Required per assembly: 2 Currently Not Available
10	CAM-ADJUSTING SPRING STEEL Part #: 5253768 Required per assembly: 2 Currently Not Available
11	WELD-CONTROL ARM UPPER M.BLK Part #: 1018189-458 Required per assembly: 2 Currently Not Available
12	SHAFT-PIVOT 89.71MM ZINC YEL Part #: 5137592 Required per assembly: 2 Currently Not Available
13	SCREW, CAP Part #: 7512365 Required per assembly: 4 ~~$4.79~~ $1.73 - + Add to cart
14	BOLT, FLANGE Part #: 7518562 Required per assembly: 2 Currently Not Available
15	WELD-CONTROL ARM LWR M.BLK Part #: 1018190-458 Required per assembly: 2 Currently Not Available
16	CARRIER, BEARING, WHEEL, LH Part #: 5134741 Required per assembly: 1 Currently Not Available
16	CARRIER, BEARING, WHEEL, [RH] Part #: 5134531 Required per assembly: 1 Note: Carrier, Bearing, Wheel, RH Currently Not Available
17	BEARING, CARRIER, WHEEL Part #: 3514635 Required per assembly: 2 Note: Bearing, Carrier, Wheel Currently Not Available
18	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
19	BOLT Part #: 7518566 Required per assembly: 2 Currently Not Available
20	SHAFT-PIVOT 115.11MM ZINC YEL Part #: 5137593 Required per assembly: 2 Currently Not Available
21	LOCK WASHER Part #: 7552901 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
22	WASHER STEEL Part #: 7558402 Required per assembly: 4 ~~$1.34~~ $0.97 - + Add to cart
23	SPACER Part #: 5334945 Required per assembly: 2 Currently Not Available
24	SCREW Part #: 7518610 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
