2012 Polaris RANGER EV LSV 4X4 (R12RC08LG) - Electrical, Motor, 48 Vac

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2205688 Assembly, Motor

ASSEMBLY, MOTOR

Part #: 2205688 Required per assembly: 1
Currently Not Available
2

SCREW

Part #: 7516823 Required per assembly: 3
Currently Not Available
3

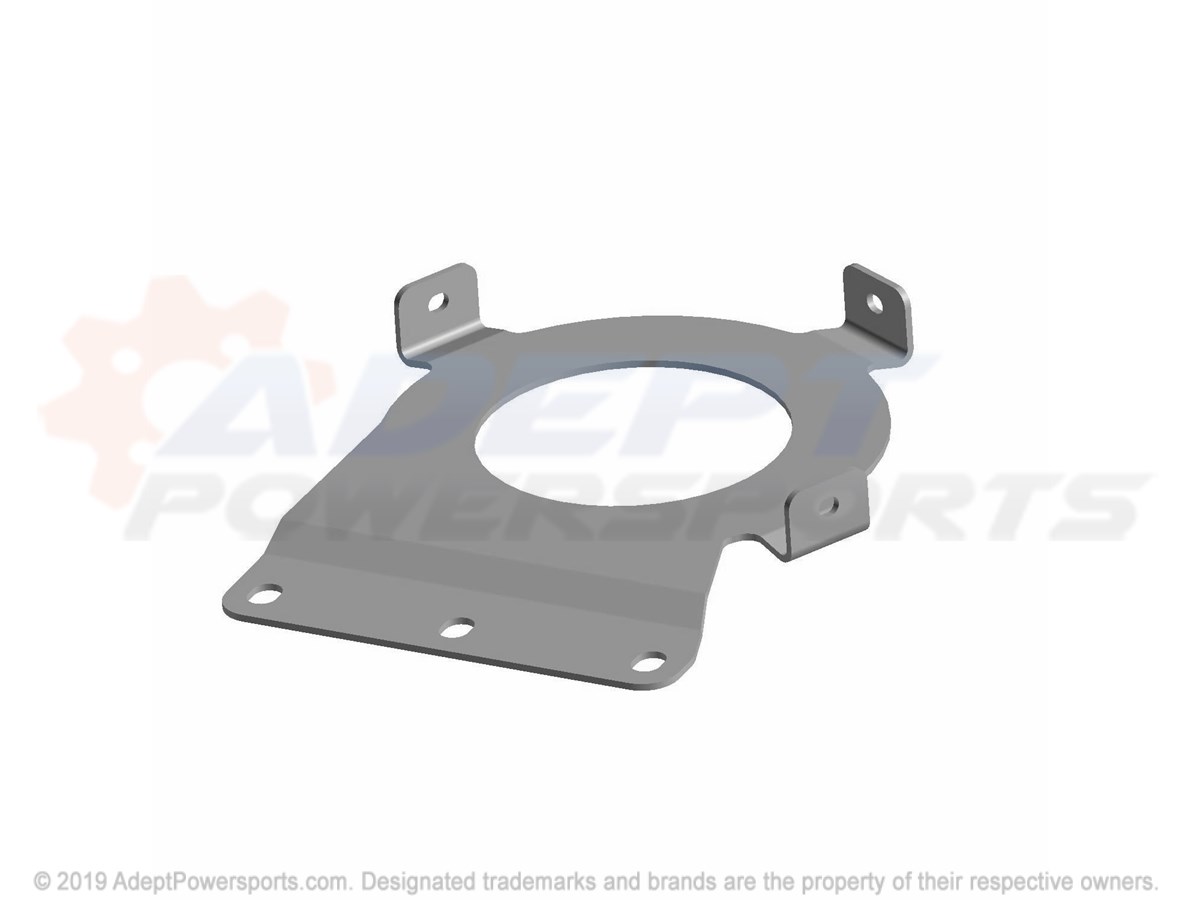

Polaris 5253461-458 Brkt-Motor Mnt Rr M Blk

BRKT-MOTOR MNT RR M BLK

Part #: 5253461-458 Required per assembly: 1
Currently Not Available
4
Polaris 7518391 Screw, Flange

SCREW, FLANGE

Part #: 7518391 Required per assembly: 1 Note: Bolt
Currently Not Available
5
Polaris 7516820 Screw, Flange

SCREW, FLANGE

Part #: 7516820 Required per assembly: 3 Note: Screw
Currently Not Available
6
Polaris 7518450 Screw, Flange

SCREW, FLANGE

Part #: 7518450 Required per assembly: 3
Currently Not Available
7
Polaris 5438508 Cover-Terminal Motor

COVER-TERMINAL MOTOR

Part #: 5438508 Required per assembly: 1
Currently Not Available
8
Polaris 7080761 Strap, Panduit, 14"

STRAP, PANDUIT, 14"

Part #: 7080761 Required per assembly: 2 Note: Cable Tie
Currently Not Available
