OEM Parts Polaris 2012 Polaris Scrambler 500 4X4 (A12NG50AA) Engine, Water Pump

2012 Polaris Scrambler 500 4X4 (A12NG50AA) - Engine, Water Pump

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

THERMOSTAT

Part #: 3084940 Required per assembly: 1 Note: Thermostat
Currently Not Available
2

BOLT, FLANGE

Part #: 3088064 Required per assembly: 4 Note: Bolt
Currently Not Available
3

CLAMP, HOSE

Part #: 3084191 Required per assembly: 2
Currently Not Available
4

HOSE-MAIN

Part #: 3090291 Required per assembly: 1
Currently Not Available
5

GASKET, COPPER

Part #: 3088030 Required per assembly: 1
Currently Not Available
6

WASHER, FLAT

Part #: 7555998 Required per assembly: 1
$1.99
$1.15
-
+
Add to cart
7

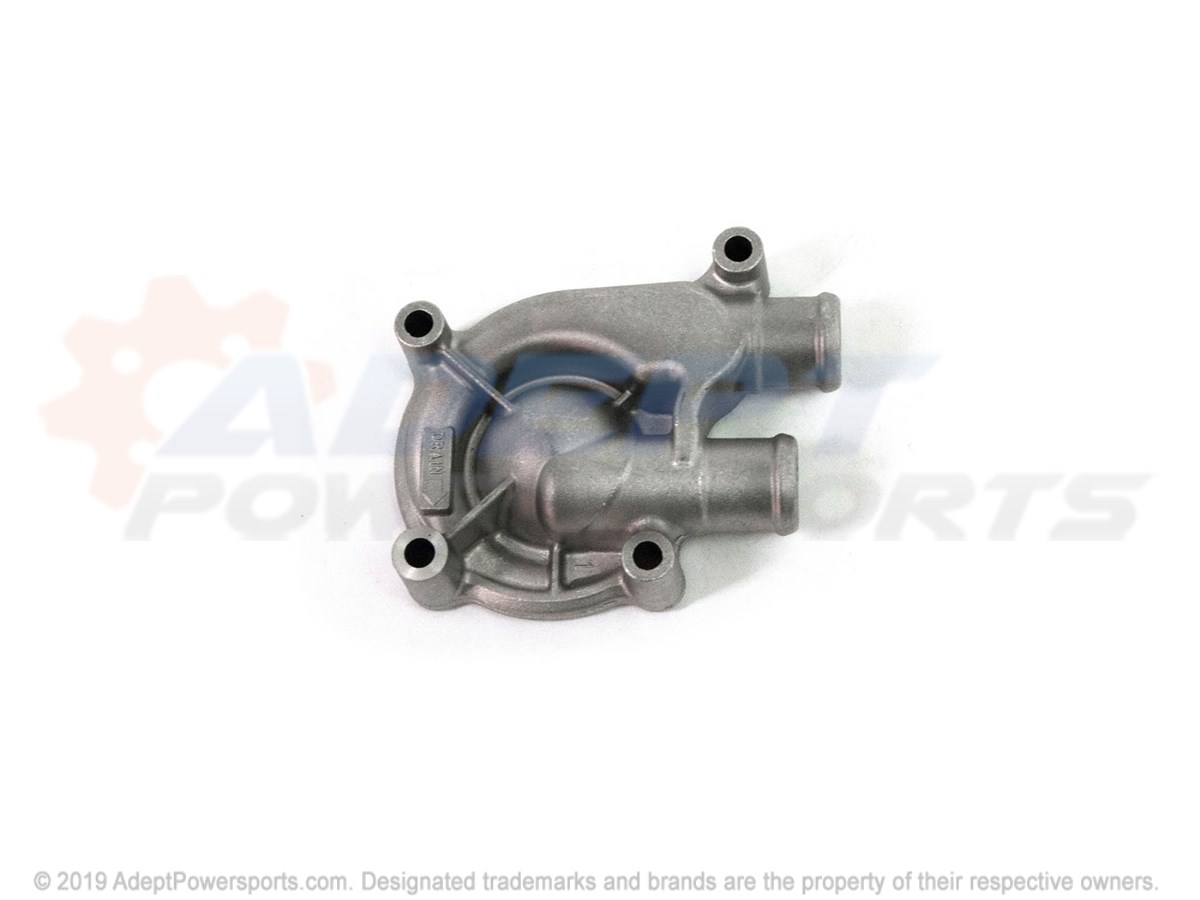

COVER-WATERPUMP

Part #: 3090292 Required per assembly: 1
Currently Not Available
8

GASKET, WATER-PUMP

Part #: 3086840 Required per assembly: 1 Note: Gasket, Water Pump
$5.99
$3.51
-
+
Add to cart
9

NUT, SELF-LOCK

Part #: 3085077 Required per assembly: 1 Note: Nut, Self Lock
Currently Not Available
10

IMPELLER, WATER, PUMP

Part #: 3084935 Required per assembly: 1 Note: Impeller
$49.75
$23.29
-
+
Add to cart
11

WASHER, SEAL

Part #: 3084942 Required per assembly: 1 Note: Washer, Seal
Currently Not Available
12

SENSOR, WATER, TEMP

Part #: 3089892 Required per assembly: 1
Currently Not Available
