Engine, Crankcase replacement parts for 2012 Polaris Sportsman 550 FOREST (A12ZN5EFF)

OEM Parts Polaris 2012 Polaris Sportsman 550 FOREST (A12ZN5EFF) Engine, Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-CRANKCASE Part #: 3090086 Required per assembly: 1 Currently Not Available
2	BEARING, BALL Part #: 3090087 Required per assembly: 2 Currently Not Available
3	BEARING, BALL Part #: 3084835 Required per assembly: 1 Note: Bearing, Ball Currently Not Available

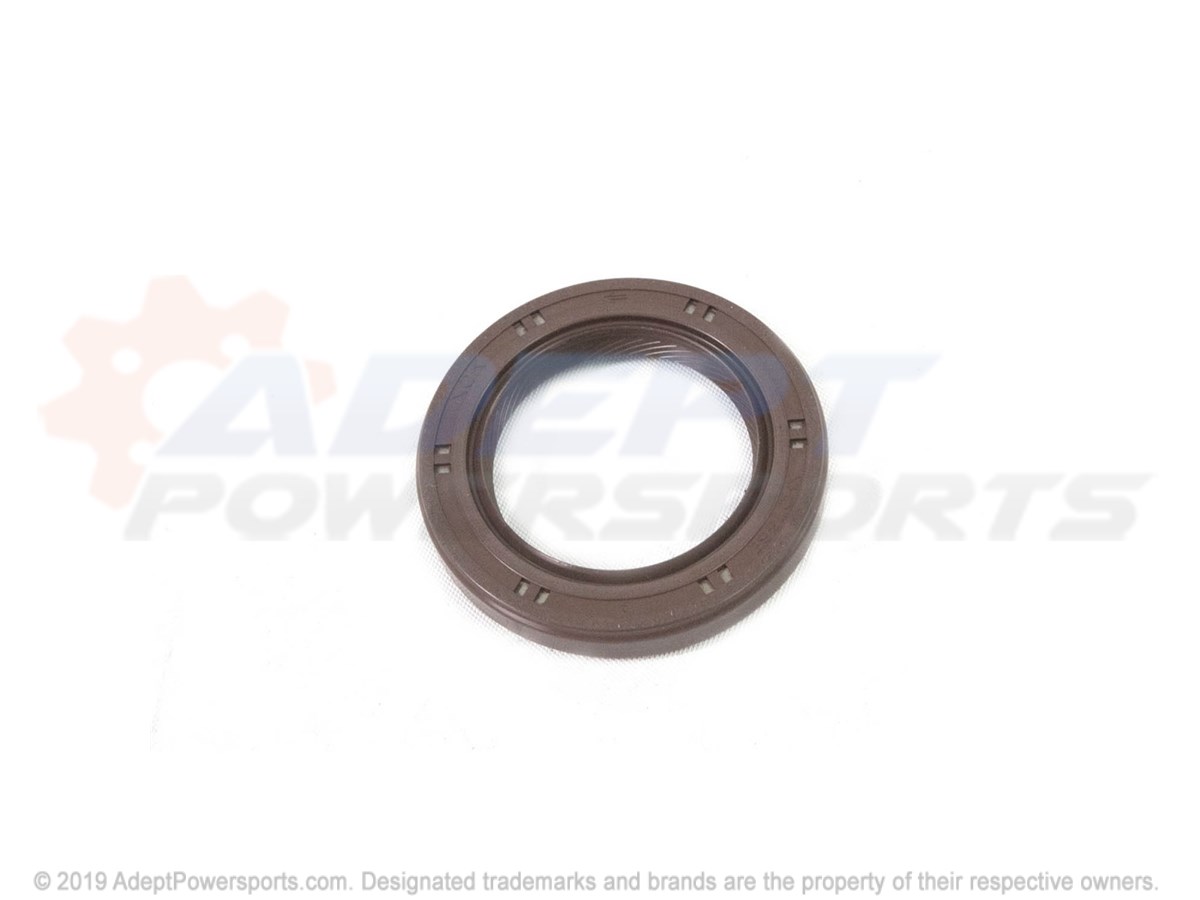

4	SEAL, OIL Part #: 3084836 Required per assembly: 1 Currently Not Available
5	SEAL, MECHANICAL Part #: 3084837 Required per assembly: 1 Note: Seal, Mechanical Currently Not Available
6	UNION, OIL, FILTER Part #: 3089956 Required per assembly: 1 Note: Union Currently Not Available
7	FITTING Part #: 7052145 Required per assembly: 1 Note: Fitting Currently Not Available
8	O-RING Part #: 3090153 Required per assembly: 1 Currently Not Available
9	BEARING, BALL Part #: 3090044 Required per assembly: 1 Currently Not Available
10	BEARING, BALL Part #: 3090087 Required per assembly: 2 Currently Not Available
11	SEAL, OIL Part #: 3090088 Required per assembly: 1 Currently Not Available
12	DOWEL-PIN Part #: 3086838 Required per assembly: 6 Currently Not Available

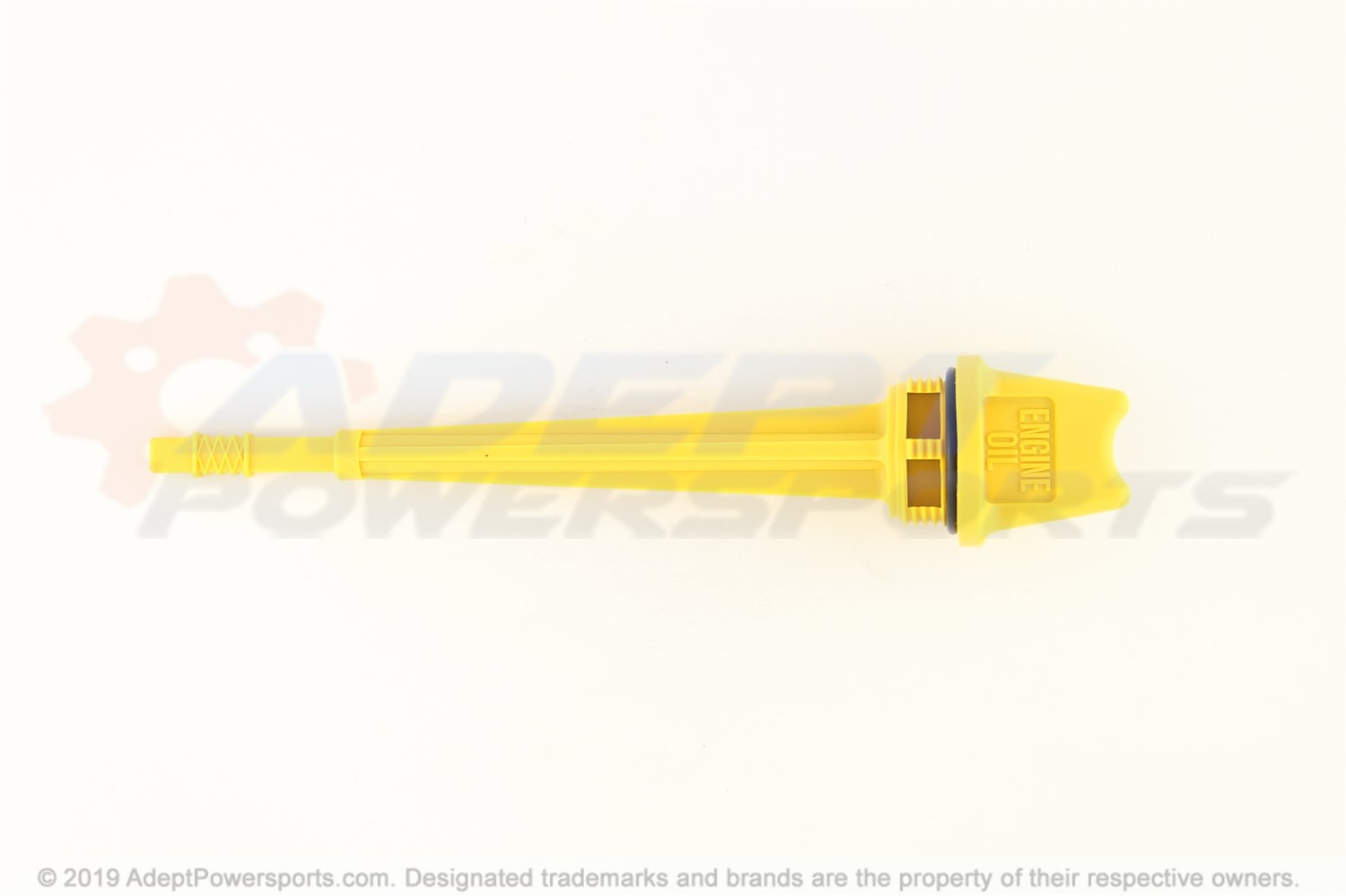

13	ASSEMBLY, GAUGE, OIL Part #: 3090152 Required per assembly: 1 Note: Asm., Gauge, Oil [Incl. 8] Currently Not Available
14	PLUG, OIL, JET Part #: 3090200 Required per assembly: 1 Currently Not Available
15	BOLT, FLANGE Part #: 3087159 Required per assembly: 11 Currently Not Available
16	BOLT, FLANGE Part #: 3087940 Required per assembly: 3 Currently Not Available
17	BOLT-FLANGE Part #: 3090089 Required per assembly: 2 Currently Not Available
18	PLUG Part #: 3083453 Required per assembly: 1 Currently Not Available
19	GASKET Part #: 3082956 Required per assembly: 1 $4.95 $2.92 - + Add to cart
20	PIPE KNOCK Part #: 3087266 Required per assembly: 2 Note: Pipe, Knock Currently Not Available
