Suspension, Rear replacement parts for 2012 Polaris Sportsman 800 6X6 EFI (A12CF76AA)

OEM Parts Polaris 2012 Polaris Sportsman 800 6X6 EFI (A12CF76AA) Suspension, Rear

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WHEEL BEARING CARRIER (NO BEARING) Part #: 5135563 Required per assembly: 4 Currently Not Available
2	BUSHING, BEARING, CARRIER Part #: 5632291 Required per assembly: 8 Currently Not Available
3	BUSHING, CONTROL, LOWER Part #: 5438902 Required per assembly: 16 Note: Bushing, Control, Lower ~~$9.99~~ $5.75 - + Add to cart
4	WASHER Part #: 7555740 Required per assembly: 8 Currently Not Available
5	WASHER, LOCK Part #: 7552614 Required per assembly: 8 Currently Not Available
6	SCREW Part #: 7517873 Required per assembly: 8 Note: Bolt ~~$3.99~~ $2.30 - + Add to cart
7	BOLT Part #: 7515415 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
8	NUT-LOCK Part #: 7542439 Required per assembly: 24 ~~$1.99~~ $1.43 - + Add to cart
9	SHOCK, REAR Part #: 7043451 Required per assembly: 4 Currently Not Available
10	CAM, SPRING, ADJUST, 1-3/8 Part #: 5631014 Required per assembly: 4 Note: CAM,SPRING ADJUST,1-3/8 (If built after 10/23/00) Currently Not Available
11	BUSHING A-ARM SHORT BLACK Part #: 5439270 Required per assembly: 24 ~~$4.99~~ $3.56 - + Add to cart
12	SPRING-COMP, 130/165, 13.8LG Part #: 7041986-067 Required per assembly: 4 Note: Spring, Compression, Black Currently Not Available
13	RETAINER, SPRING Part #: 5251753 Required per assembly: 4 Currently Not Available
14	BOLT Part #: 7515415 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
15	SHAFT, A-ARM, SHORT Part #: 5020826 Required per assembly: 12 Note: Shaft, A-Arm, Short Currently Not Available
16	ARM, CONTROL, UPPER, RH Part #: 1014321-067 Required per assembly: 2 Note: Arm, Control, Upper, Black, RH Currently Not Available
16	ARM, CONTROL, UPPER, LH Part #: 1014320-067 Required per assembly: 2 Note: Arm, Control, Upper, Black, LH Currently Not Available

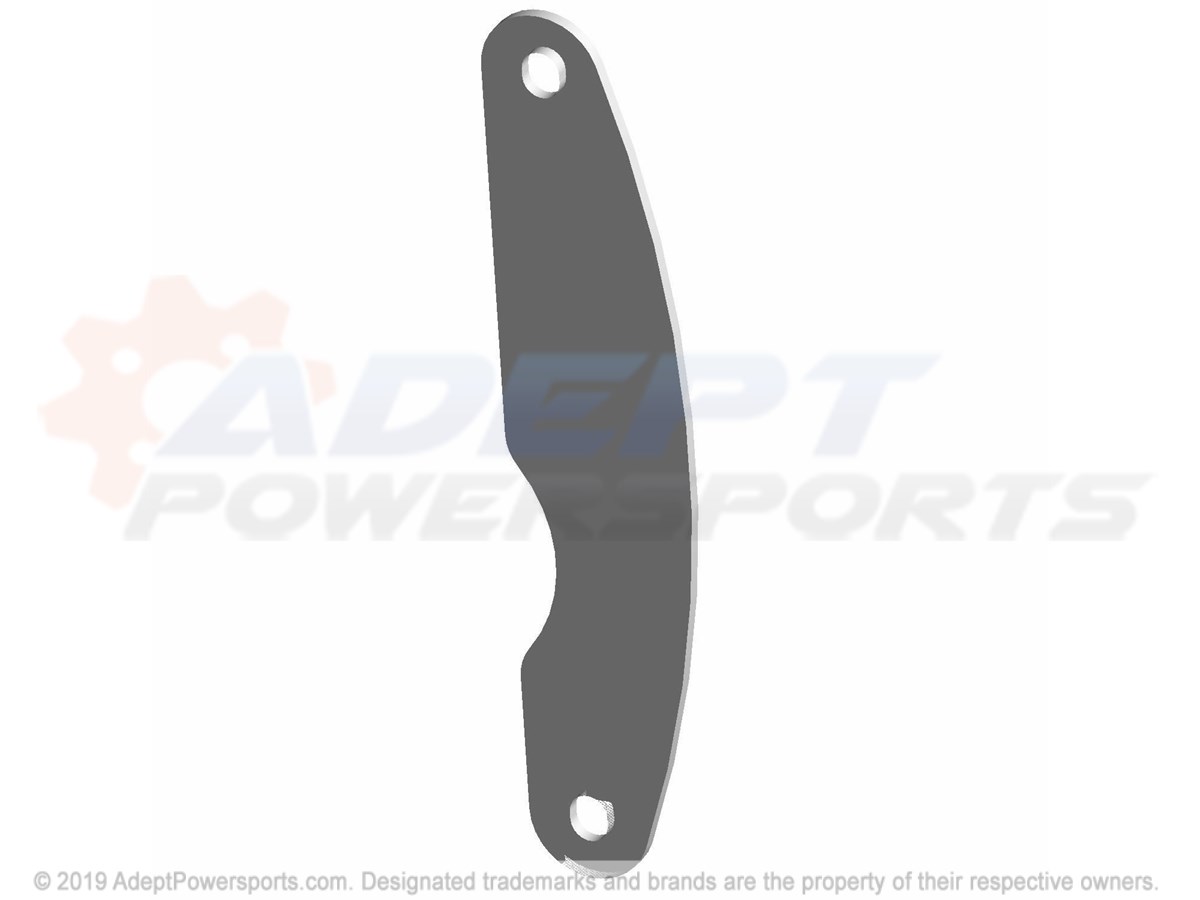

17	STRAP, GEARCASE, REAR, BLACK Part #: 5252941-067 Required per assembly: 1 Currently Not Available
18	BUSHING, PIVOT, WEAR Part #: 5136760 Required per assembly: 8 Currently Not Available
19	SCREW Part #: 7519065 Required per assembly: 4 Currently Not Available
20	WASHER, FLAT Part #: 7556153 Required per assembly: 8 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
21	BUSHING, CONTROL, ARM Part #: 5436833 Required per assembly: 8 Currently Not Available
22	CONTROL, LOWER, BLACK, LH Part #: 1015888-067 Required per assembly: 2 Currently Not Available
22	CONTROL, LOWER, BLACK, RH Part #: 1015889-067 Required per assembly: 2 Currently Not Available
23	SCREW Part #: 7512084 Required per assembly: 8 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
24	SHIELD, REAR, LH Part #: 5435008-070 Required per assembly: 2 Note: Shield, CV Rear, Black, LH Currently Not Available
24	SHIELD, REAR, RH Part #: 5435009-070 Required per assembly: 2 Note: Shield, CV Rear, Black, RH Currently Not Available

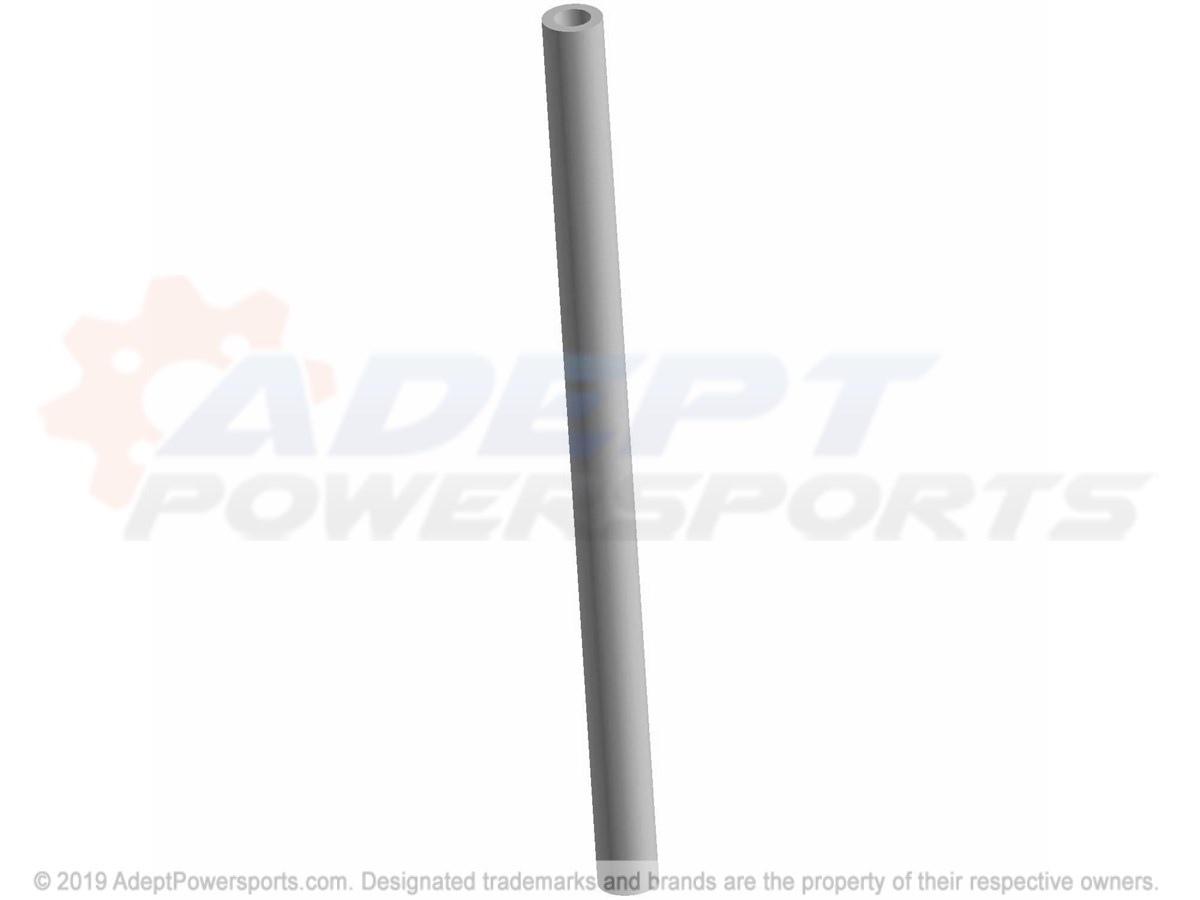

25	TUBE-PIVOT .625 OD X .385 ID Part #: 5136759 Required per assembly: 4 Currently Not Available
26	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
27	BOLT Part #: 7515472 Required per assembly: 12 Currently Not Available
28	STRAP, MID, GEAR, CASE, BLACK Part #: 5252849-067 Required per assembly: 1 Currently Not Available
29	NUT Part #: 7547344 Required per assembly: 4 Currently Not Available
30	SLEEVE, SHOCK, PROTECTOR Part #: 5433551 Required per assembly: 4 Currently Not Available
