Cooling System - M12zn8eaa/Eai replacement parts for 2012 Polaris Sportsman 850 MV

OEM Parts Polaris 2012 Polaris Sportsman 850 MV M12ZN8EAA/EAI Cooling System - M12zn8eaa/Eai

Cooling System - M12ZN8EAA/EAI Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HOSE, RADIATOR, ENGINE, OUT Part #: 5414392 Required per assembly: 1 Note: Built 12/06/11 and After Currently Not Available
1	HOSE, RADIATOR, ENGINE, OUT Part #: 5414392 Required per assembly: 1 Note: Built 12/05/11 and Before Currently Not Available
2	HOSE, RADIATOR, ENGINE, IN Part #: 5414391 Required per assembly: 1 Note: Built 12/06/11 and After Currently Not Available
3	ASSEMBLY, BOTTLE, COOLANT, RECOVERY Part #: 1240406 Required per assembly: 1 Note: Incl. 14-17,20 Currently Not Available
4	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 1 Currently Not Available
5	ASSEMBLY, GROMMET, AND, INSERT Part #: 5413509 Required per assembly: 2 Currently Not Available
6	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
7	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 2 Currently Not Available
8	CAP, PRESSURE Part #: 1240466 Required per assembly: 1 Currently Not Available
9	RADIATOR Part #: 1240404 Required per assembly: 1 Currently Not Available
9	ASSEMBLY, RADIATOR Part #: 1240702 Required per assembly: 1 Note: Incl. 3,4,8-10,18 Currently Not Available
10	GROMMET, RADIATOR, MOUNT, LOWER Part #: 5413510 Required per assembly: 2 Currently Not Available
11	STRAP, BLACK, WEATHER-RESIST. Part #: 7080492 Required per assembly: 3 Currently Not Available
12	SCREW Part #: 7518513 Required per assembly: 1 Currently Not Available
13	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 2 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
14	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
15	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart
16	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap $4.79 $2.92 - + Add to cart
17	ASSEMBLY, BOTTLE, COOLANT, RECOVERY Part #: 1240406 Required per assembly: 1 Currently Not Available

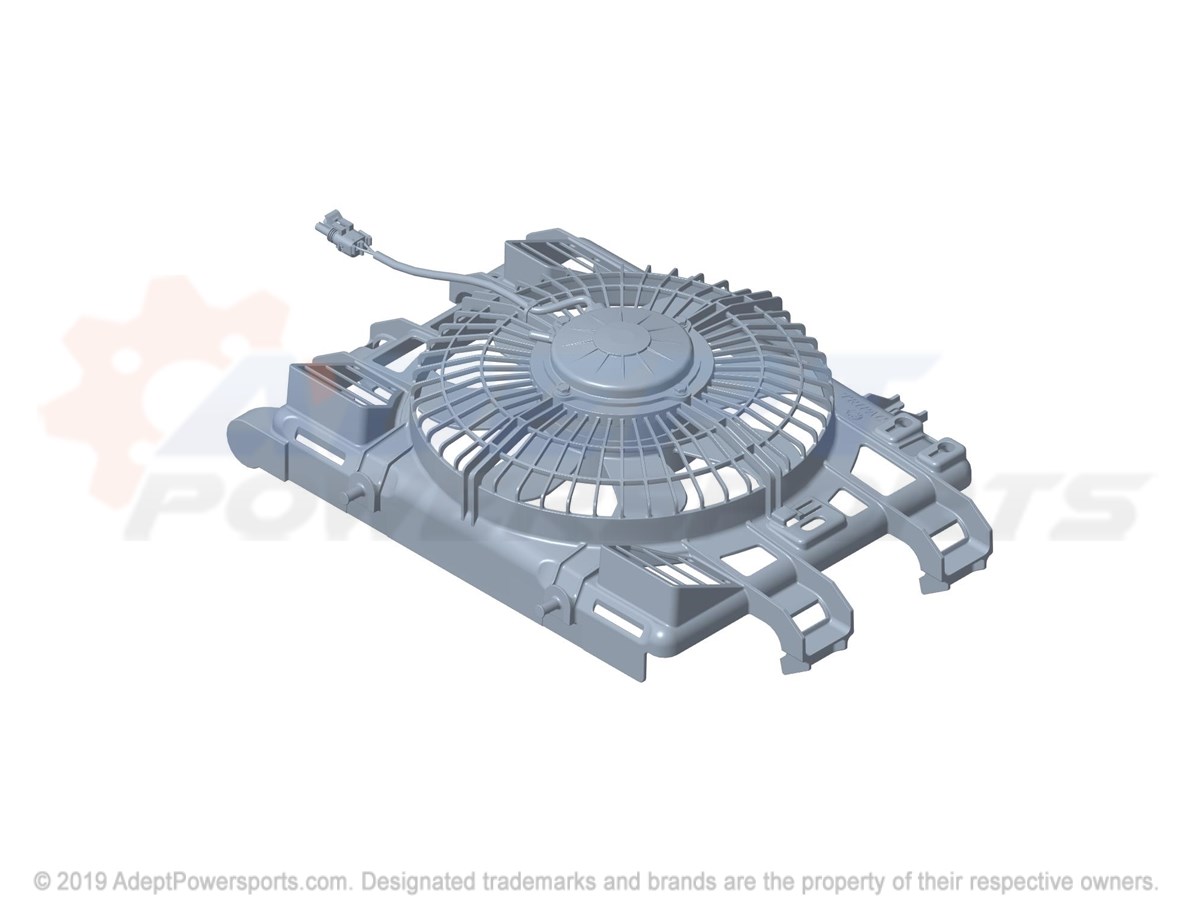

18	FAN-12", RING, SHROUD, LED Part #: 2415280 Required per assembly: 1 Currently Not Available
19	CLAMP, HOSE Part #: 7081192 Required per assembly: 1 Currently Not Available
20	LINE, COOLANT, (27CM) Part #: 8450128-27 Required per assembly: 1 Currently Not Available
21	CLAMP, HOSE Part #: 7080908 Required per assembly: 1 Currently Not Available
