2012 Polaris Trail Blazer 330 (A12NA32AA) - Electrical, Headlight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

BRACKET, HEADLIGHT, MOUNT, FRONT, BLACK

Part #: 5253286-067 Required per assembly: 1
Currently Not Available
2

ASSEMBLY, HEADLIGHT

Part #: 2411093 Required per assembly: 1
Currently Not Available
3

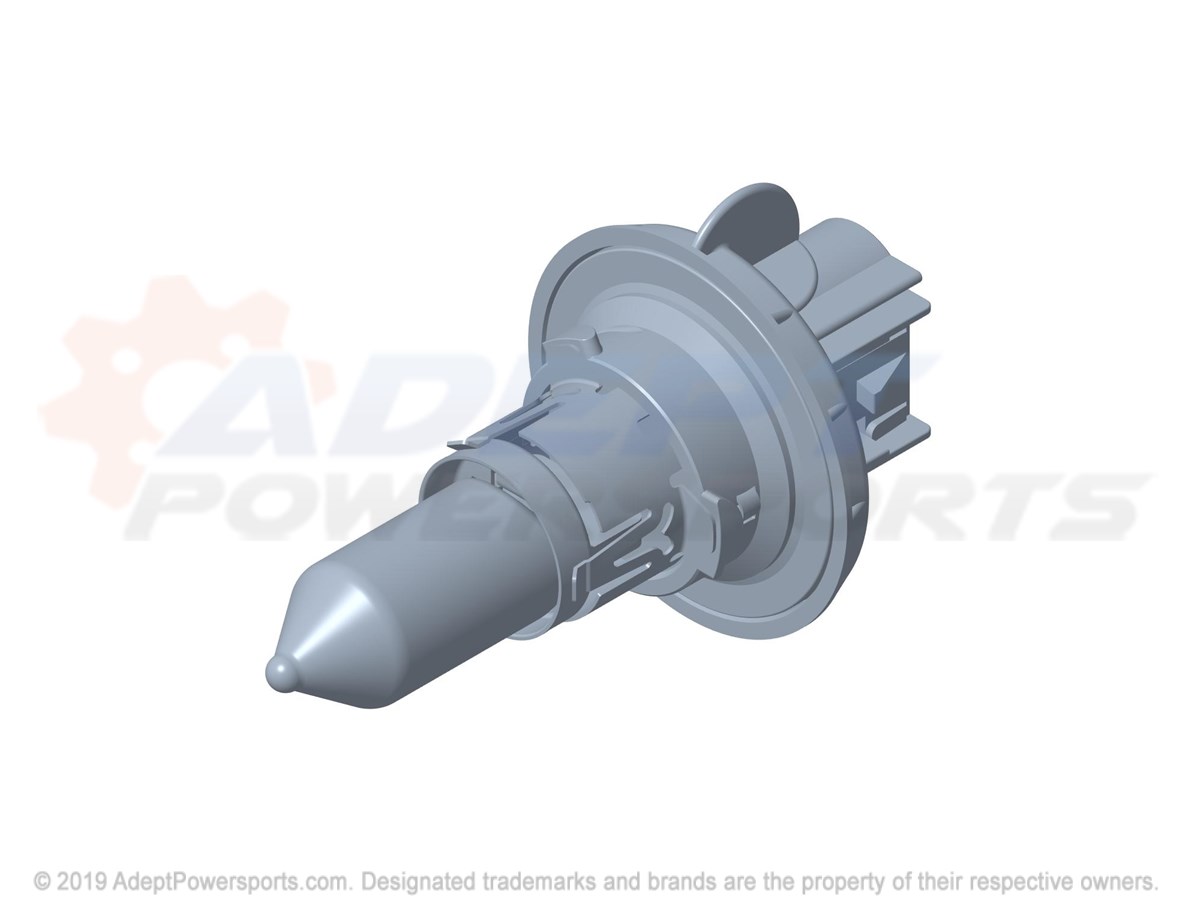

BULB, 12V, 50W, HI/LO, HALOGEN

Part #: 4012279 Required per assembly: 1 Note: Bulb, 50 W, Hi/Low, Halogen
Currently Not Available
4

GROMMET

Part #: 5412148 Required per assembly: 2
Currently Not Available
5

SCREW

Part #: 7512024 Required per assembly: 4
Currently Not Available
6

SCREW

Part #: 7518280 Required per assembly: 3
Currently Not Available
7

NUT, SPEED

Part #: 7670057 Required per assembly: 1 Note: Nut, Speed
$1.99
$1.15
-
+
Add to cart
8

BRKT-HEADLIGHT MNT

Part #: 5253285 Required per assembly: 2
Currently Not Available
