Electrical, Headlight replacement parts for 2012 Polaris Trail Blazer 330 INTL (A12NA32FA)

OEM Parts Polaris 2012 Polaris Trail Blazer 330 INTL (A12NA32FA) Electrical, Headlight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BRKT-HEADLIGHT MNT ECE Part #: 5253284 Required per assembly: 1 Currently Not Available
2	ASM-HEADLIGHT ECE Part #: 2411243 Required per assembly: 1 Currently Not Available

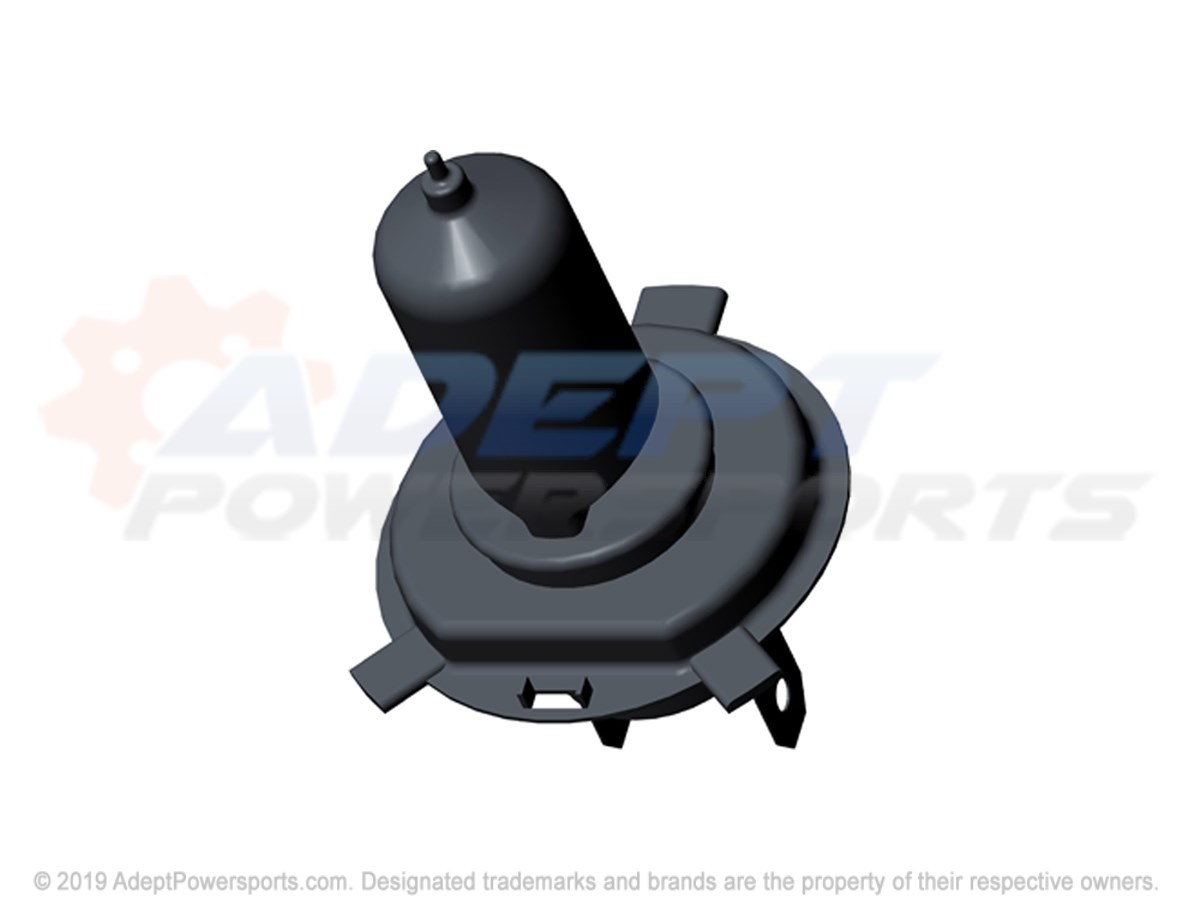

3	BULB-H4 12V 55/60W LONG LIFE Part #: 4011524 Required per assembly: 1 Currently Not Available
4	BULB, TAILLIGHT Part #: 4010340 Required per assembly: 2 Note: Bulb, Taillight $7.99 $5.05 - + Add to cart
5	SCREW Part #: 7512024 Required per assembly: 4 Currently Not Available
6	SPRING-HEADLIGHT Part #: 7043589 Required per assembly: 3 Currently Not Available
7	SCREW 1.50 Part #: 7517566 Required per assembly: 3 Currently Not Available
8	COLLAR, LOCK Part #: 4032077 Required per assembly: 1 Currently Not Available
