Engine, Crankshaft And Piston replacement parts for 2012 Polaris Trail Boss 330 (A12EA32AA)

OEM Parts Polaris 2012 Polaris Trail Boss 330 (A12EA32AA) Engine, Crankshaft And Piston

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

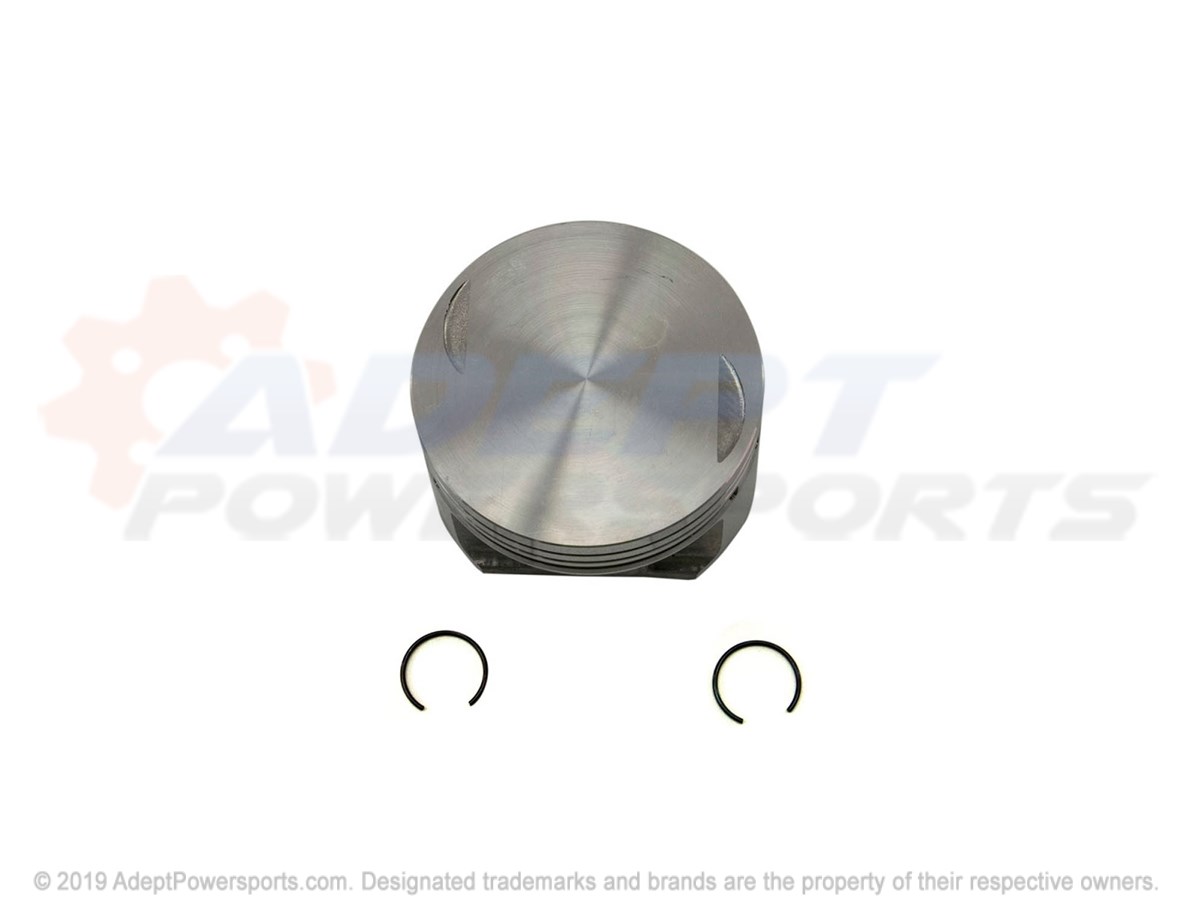

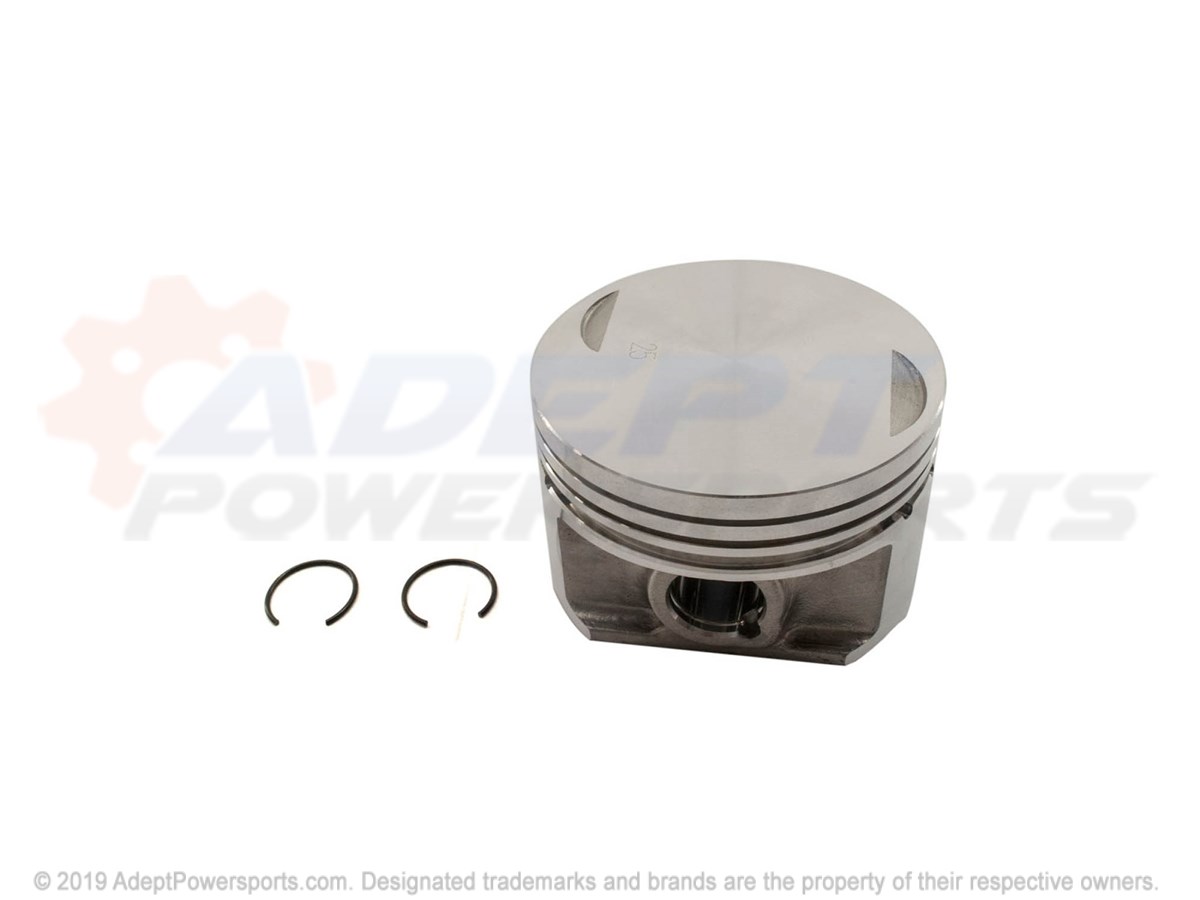

1	SET, PISTON, .25, O/S Part #: 3090236 Required per assembly: 1 Note: Set, Piston, .25 O/S [Incl. 4] Currently Not Available
1	SET, PISTON, .50, O/S Part #: 3090237 Required per assembly: 1 Note: Set, Piston, .50 O/S [Incl. 4] Currently Not Available
1	SET, PISTON, STANDARD Part #: 3090235 Required per assembly: 1 Note: Set, Piston, Standard [Incl. 4] Currently Not Available

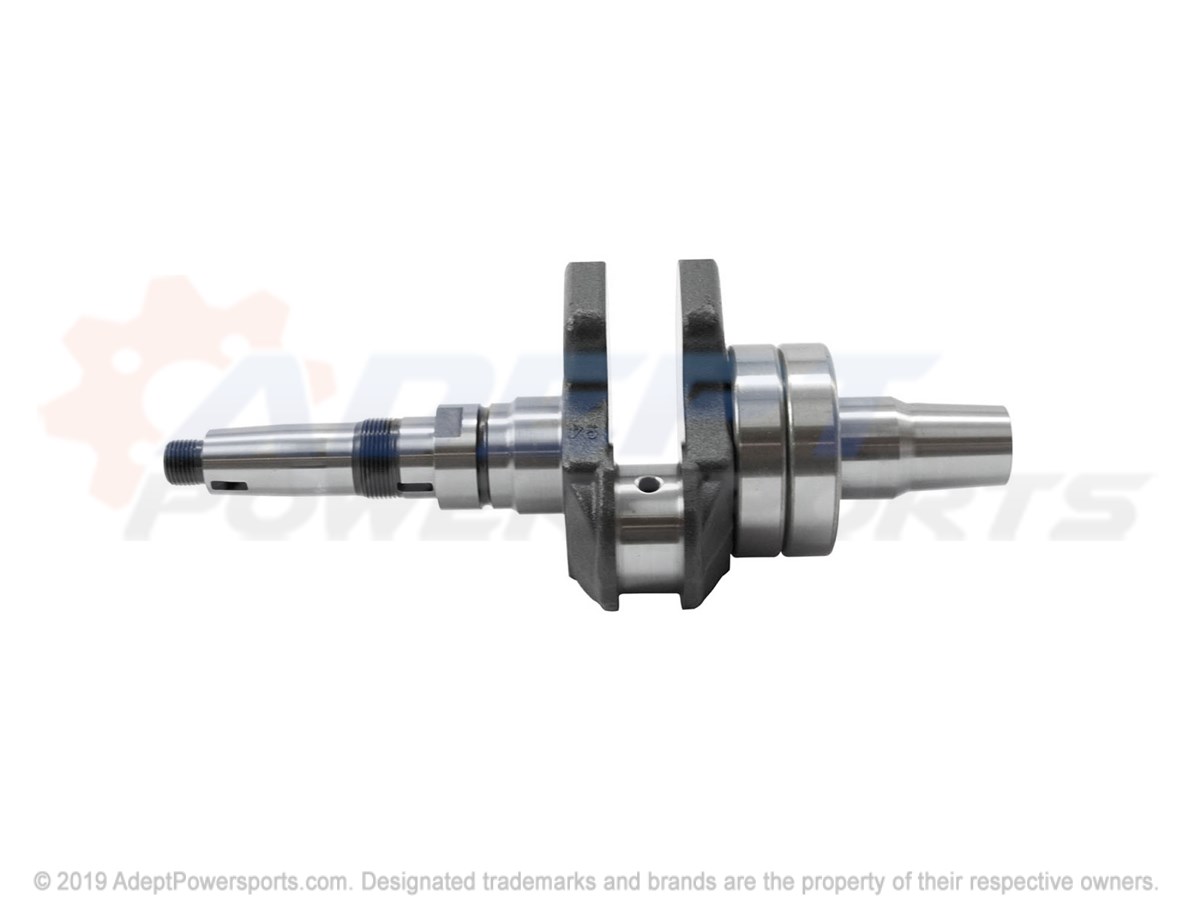

2	ASM. CRANKSHAFT Part #: 3087051 Required per assembly: 1 Note: DESC NOT_AVAILABLE (Incl. 16) Currently Not Available
3	ASSEMBLY, CONNECTING, ROD Part #: 3087239 Required per assembly: 1 Currently Not Available

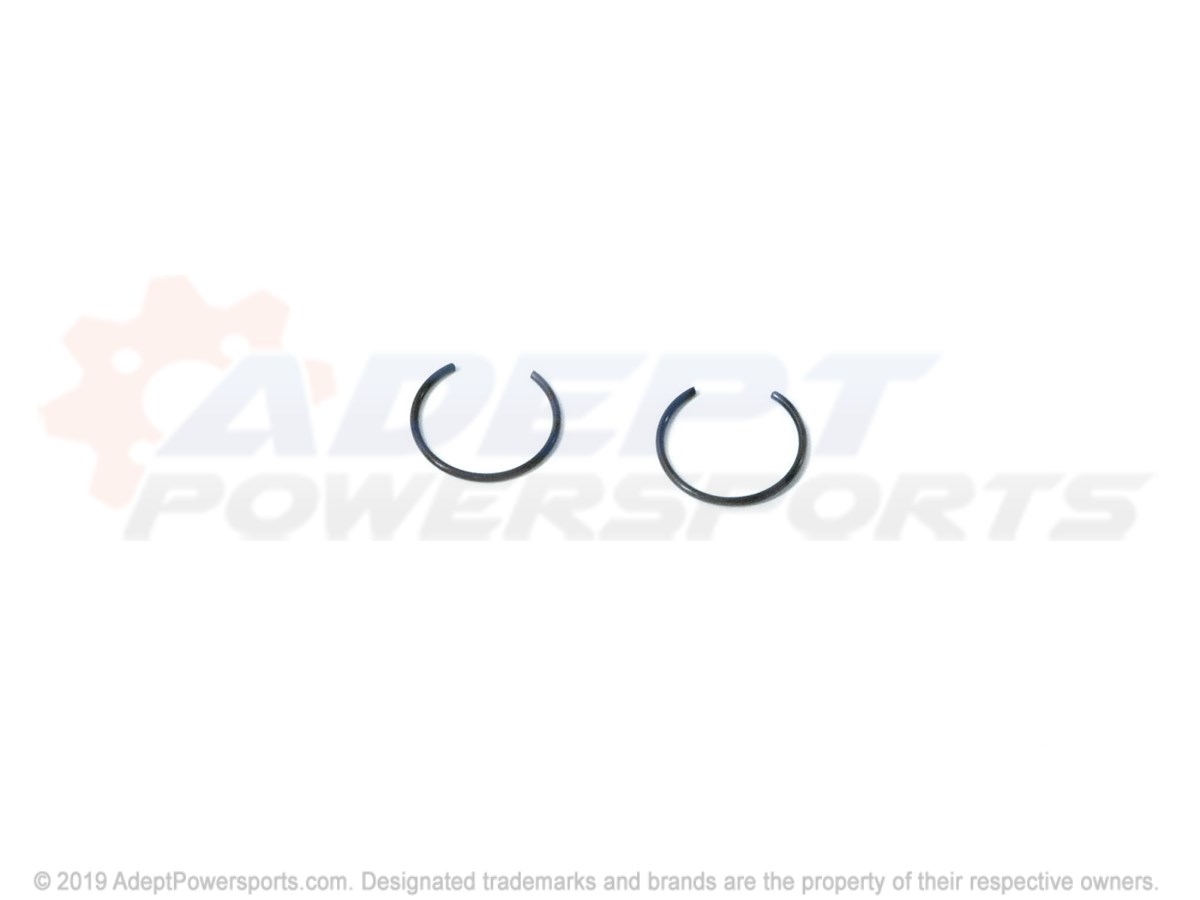

4	CLIP, (PISTON, PIN) Part #: 3084167 Required per assembly: 2 Note: CLIP,(10) $7.99 $4.60 - + Add to cart
5	BOLT Part #: 3087240 Required per assembly: 2 Note: Bolt, Connecting Rod $9.99 $5.75 - + Add to cart
6	PIN, PISTON Part #: 3089821 Required per assembly: 1 Currently Not Available

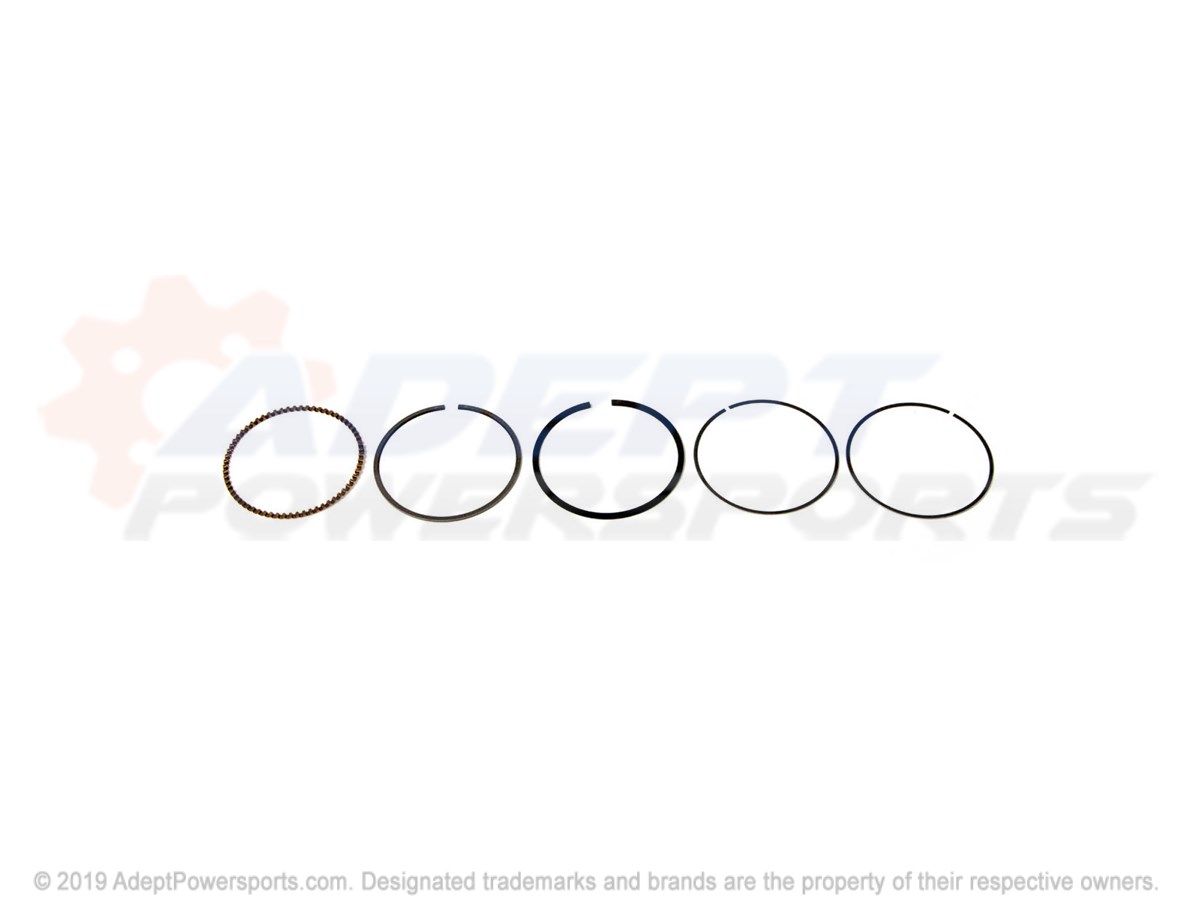

7	PISTON RING SET [0.50 O/S] Part #: 3087246 Required per assembly: 1 Note: Set, Piston, Ring, .020 Inch/.50MM O/S [Incl. Top, Mid, Bottom Rings] $79.99 $49.67 - + Add to cart

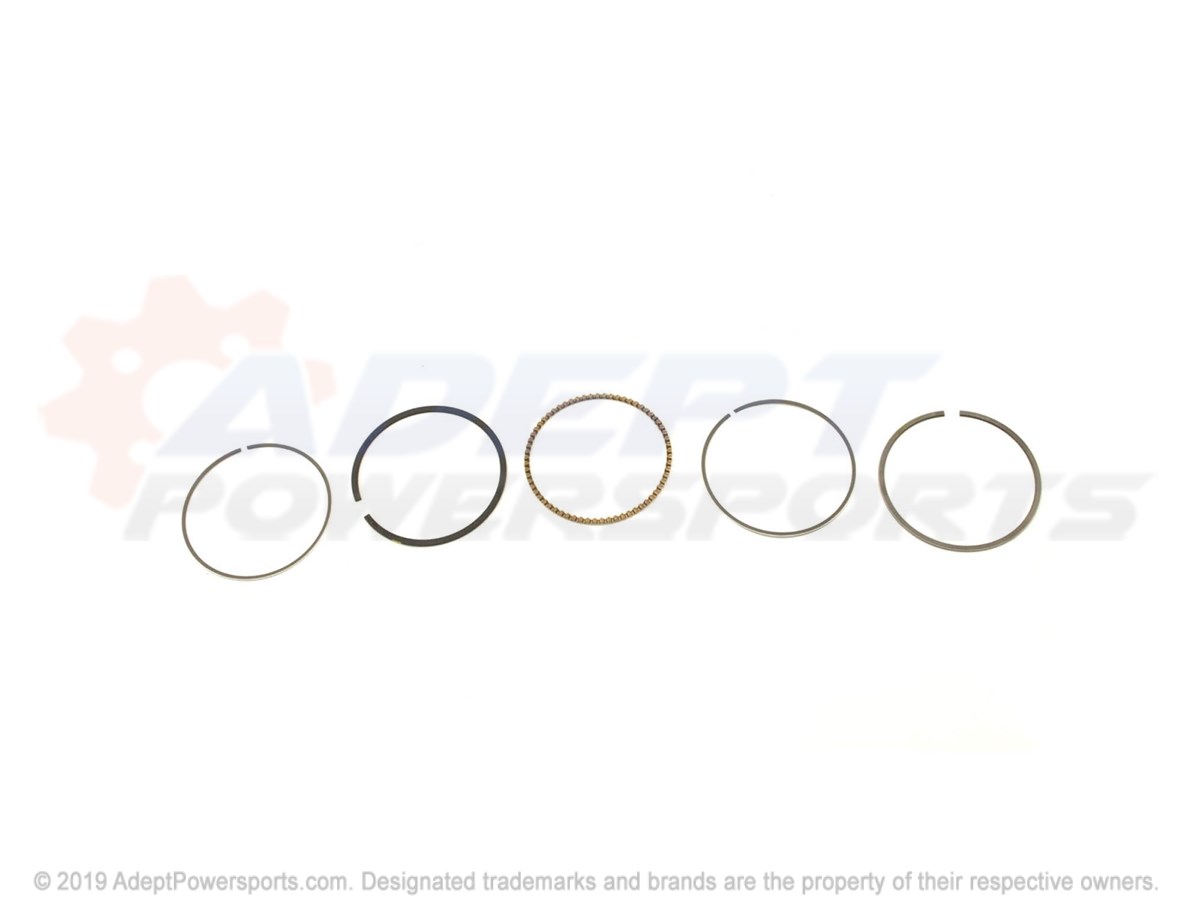

7	PISTON RING SET [0.25 O/S] Part #: 3087245 Required per assembly: 1 Note: Set, Piston, Ring, .010 Inch/.25MM O/S [Incl. Top, Mid, Bottom Rings] Currently Not Available

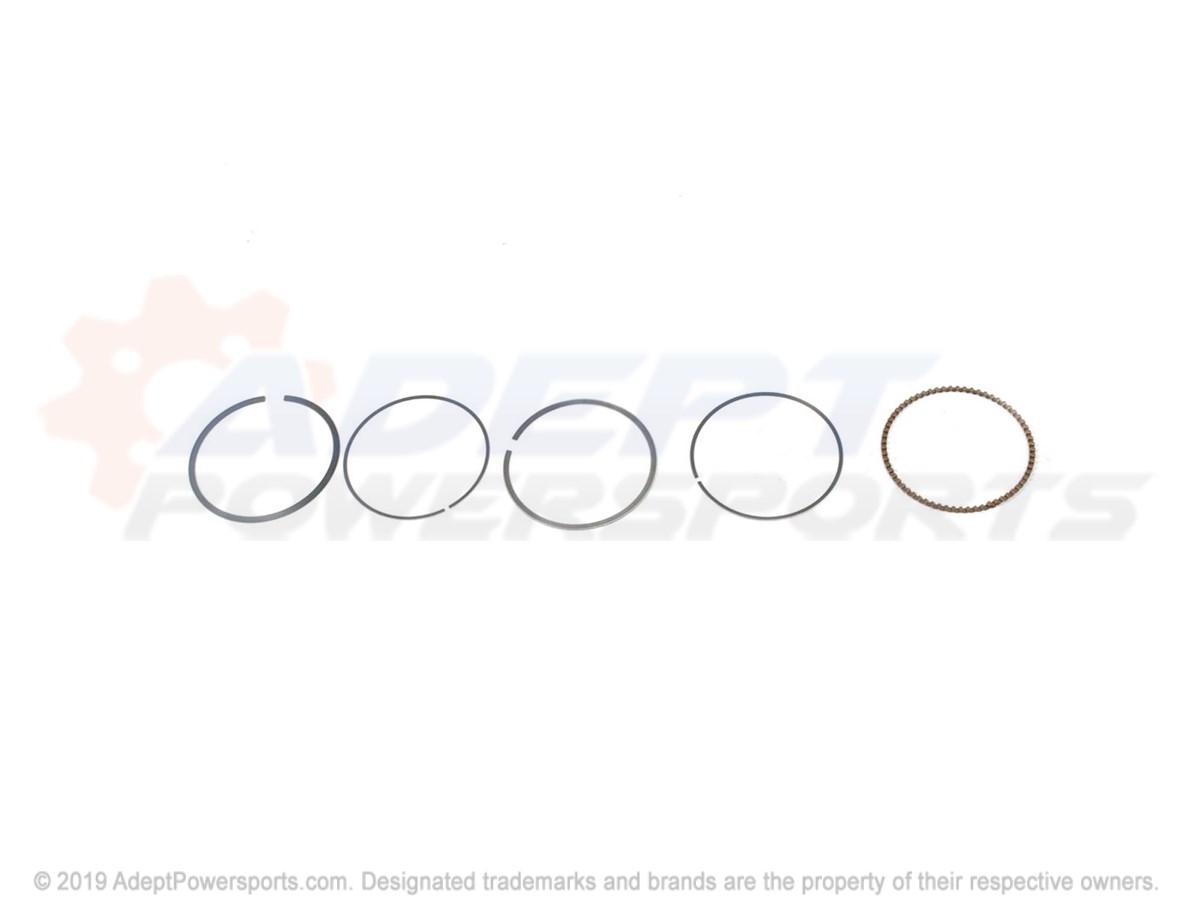

7	PISTON RING SET [STD] Part #: 3087244 Required per assembly: 1 Note: Set, Piston, Ring, Standard [Incl. Top, Mid, Bottom Rings] Currently Not Available
8	KEY, WOODRUFF, Part #: 3240168 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
9	SPACER .8 Part #: 3086436 Required per assembly: 1 Currently Not Available
9	SPACER .6 Part #: 3086435 Required per assembly: 1 Currently Not Available
9	SPACER .4 Part #: 3086434 Required per assembly: 1 Currently Not Available
9	SPACER 1.0 Part #: 3086437 Required per assembly: 1 Currently Not Available
10	SPROCKET 1 Part #: 3086492 Required per assembly: 1 Currently Not Available
11	NUT, SLIT Part #: 3085528 Required per assembly: 1 Note: Nut, Slit Currently Not Available
12	WASHER Part #: 3083904 Required per assembly: 1 Currently Not Available
13	LOCKNUT Part #: 3083905 Required per assembly: 1 Currently Not Available
14	NUT Part #: 3086426 Required per assembly: 2 $3.99 $2.30 - + Add to cart
15	BEARING-.25MM Part #: 3086799 Required per assembly: 2 Note: BEARING-.25MM (0.25 U/S)(If built after 3/1/99) Currently Not Available
15	BEARING-.05MM Part #: 3086798 Required per assembly: 2 Note: BEARING-.05MM (0.05 U/S)(If built after 3/1/99) Currently Not Available
15	BEARING (STD) Part #: 3086427 Required per assembly: 2 Currently Not Available
16	BEARING, BALL Part #: 3085815 Required per assembly: 2 Note: Bearing, Ball Currently Not Available
