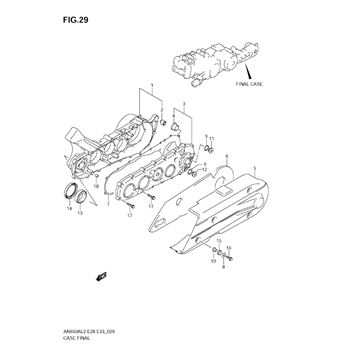

Case Final replacement parts for 2012 Suzuki Burgman (AN650A)

OEM Parts Suzuki 2012 Suzuki Burgman (AN650A) Case Final

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CASE, FINAL, GEAR Part #: 27450-10G10 Required per assembly: 1 Not Available
2	BUSH, REAR, SHOCK, ABSORBER Part #: 09319-10032 Required per assembly: 1 Note: BUSH, REAR SHOCK ABS; $9.74 $8.77 - + Add to cart
3	CASE, FINAL, GEAR, LH Part #: 27460-10G00 Required per assembly: 1 Not Available
4	BUSH, FINAL, GEAR, CASE Part #: 27433-24A00 Required per assembly: 1 Not Available
5	COVER, FINAL, GEAR, CASE Part #: 27471-10G00 Required per assembly: 1 $164.46 $140.60 - + Add to cart
6	CUSHION, FINAL, GEAR, CASE Part #: 27472-10G01 Required per assembly: 1 Not Available
7	GASKET, FINAL, GEAR, CASE Part #: 27551-10G00 Required per assembly: 1 $25.97 $23.37 - + Add to cart
8	WASHER Part #: 09160-06109 Required per assembly: 4 Note: MODEL K3/K4/K5/K6 $1.39 $1.25 - + Add to cart
9	GASKET Part #: 09168-18003 Required per assembly: 2 Note: GASKET, OIL FILLER PLUG; 18X24.2X2 $1.65 $1.49 - + Add to cart
10	SPACER Part #: 09169-06062 Required per assembly: 4 Note: WASHER, LOWER; $3.02 $2.72 - + Add to cart
11	PLUG, ROCKER, ARM, SHAFT Part #: 09248-18004 Required per assembly: 1 Note: PLUG, OIL FILLER; $16.19 $14.57 - + Add to cart
12	PLUG, OIL, DRAIN Part #: 09248-18008 Required per assembly: 1 $27.63 $24.87 - + Add to cart
13	BEARING, FINAL, GEAR, CASE, RH Part #: 09265-35012 Required per assembly: 1 Note: RH Not Available
14	SEAL, FINAL, GEAR, CASE, RH Part #: 09283-53001 Required per assembly: 1 Note: RH $16.81 $14.36 - + Add to cart
15	CUSHION Part #: 09320-09016 Required per assembly: 4 Note: CUSHION, SIDE COWL; $2.45 $2.21 - + Add to cart
16	BOLT Part #: 01547-0625B Required per assembly: 4 $3.03 $2.73 - + Add to cart
17	BOLT, SEC, CASE Part #: 01547-0630B Required per assembly: 19 $3.38 $3.04 - + Add to cart
18	PIN Part #: 04211-09149 Required per assembly: 2 $2.05 $1.85 - + Add to cart
