Front Caliper replacement parts for 2012 Suzuki KingQuad (LT-A500XP)

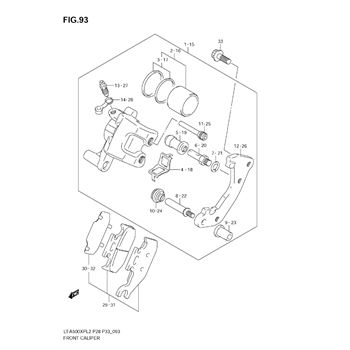

OEM Parts Suzuki 2012 Suzuki KingQuad (LT A500XP) Front Caliper

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CALIPER, ASSEMBLY, FRONT, RH Part #: 59100-31G20-999 Required per assembly: 1 $362.72 $326.45 - + Add to cart
2	PISTON SET Part #: 59300-13810 Required per assembly: 1 $40.74 $36.67 - + Add to cart
3	SEAL, SET, PISTON Part #: 69100-13820 Required per assembly: 1 $11.31 $10.18 - + Add to cart
4	SPRING Part #: 59315-27C00 Required per assembly: 1 Note: SPRING, PAD; $15.15 $13.64 - + Add to cart
5	BOOT Part #: 59386-13A00 Required per assembly: 1 $9.82 $8.84 - + Add to cart
6	BOLT Part #: 59382-13A00 Required per assembly: 1 Note: PIN; $10.21 $9.19 - + Add to cart
7	WASHER Part #: 59314-13A00 Required per assembly: 1 $2.20 $1.98 - + Add to cart
8	PIN Part #: 59387-00B20 Required per assembly: 1 $24.63 $21.05 - + Add to cart
9	NUT Part #: 59388-00B20 Required per assembly: 1 $19.27 $16.47 - + Add to cart
10	BOOT Part #: 59303-14500 Required per assembly: 1 $6.83 $6.15 - + Add to cart
11	PIN, HANGER Part #: 59145-39D00 Required per assembly: 2 $23.30 $20.97 - + Add to cart
12	BRACKET, RH Part #: 59151-31G20 Required per assembly: 1 Not Available
13	BLEEDER Part #: 59121-01A00 Required per assembly: 1 $11.27 $10.14 - + Add to cart
14	CAP Part #: 59122-01A00 Required per assembly: 1 $5.60 $5.04 - + Add to cart
15	CALIPER, ASSEMBLY, FRONT, LH Part #: 59300-31G20-999 Required per assembly: 1 $349.41 $314.47 - + Add to cart
16	PISTON SET Part #: 59300-13810 Required per assembly: 1 $40.74 $36.67 - + Add to cart
17	SEAL, SET, PISTON Part #: 69100-13820 Required per assembly: 1 $11.31 $10.18 - + Add to cart
18	SPRING Part #: 59315-27C00 Required per assembly: 1 Note: SPRING, PAD; $15.15 $13.64 - + Add to cart
19	BOOT Part #: 59386-13A00 Required per assembly: 1 $9.82 $8.84 - + Add to cart
20	BOLT Part #: 59382-13A00 Required per assembly: 1 Note: PIN; $10.21 $9.19 - + Add to cart
21	WASHER Part #: 59314-13A00 Required per assembly: 1 $2.20 $1.98 - + Add to cart
22	PIN Part #: 59387-00B20 Required per assembly: 1 $24.63 $21.05 - + Add to cart
23	NUT Part #: 59388-00B20 Required per assembly: 1 $19.27 $16.47 - + Add to cart
24	BOOT Part #: 59303-14500 Required per assembly: 1 $6.83 $6.15 - + Add to cart
25	PIN, HANGER Part #: 59145-39D00 Required per assembly: 2 $23.30 $20.97 - + Add to cart
26	BRACKET, LH Part #: 59351-31G20 Required per assembly: 1 Not Available
27	BLEEDER Part #: 59121-01A00 Required per assembly: 1 $11.27 $10.14 - + Add to cart
28	CAP Part #: 59122-01A00 Required per assembly: 1 $5.60 $5.04 - + Add to cart
29	PAD & SHIM SET RH Part #: 59100-31870 Required per assembly: 1 $59.74 $53.77 - + Add to cart
30	SHIM Part #: 69132-28C00 Required per assembly: 1 $10.23 $9.21 - + Add to cart
31	PAD & SHIM SET LH Part #: 59100-31880 Required per assembly: 1 $59.74 $51.07 - + Add to cart
32	SHIM Part #: 69132-28C00 Required per assembly: 1 $10.23 $9.21 - + Add to cart
33	BOLT (8X20) Part #: 09106-08176 Required per assembly: 4 $4.28 $3.85 - + Add to cart
