OEM Parts Victory 2012 Victory CROSS COUNTRY ALL OPTIONS (V12TW36/DW36/KW36) Body, Windshield Fairing And Deflectors - V12tw36/Dw36/Kw36 All Options

2012 Victory CROSS COUNTRY ALL OPTIONS (V12TW36/DW36/KW36) - Body, Windshield Fairing And Deflectors - V12tw36/Dw36/Kw36 All Options

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

KIT-WINDSHIELD, CC

Part #: 2878397 Required per assembly: 1 Note: (Incl. Decal, 2)
Currently Not Available
2

RHINO, HIDE-VISOR, LH

Part #: 5813468 Required per assembly: 1
Currently Not Available
2

RHINO, HIDE-VISOR, RH

Part #: 5813469 Required per assembly: 1
Currently Not Available
3

DUCT-VISOR

Part #: 5437830 Required per assembly: 1
Currently Not Available
4

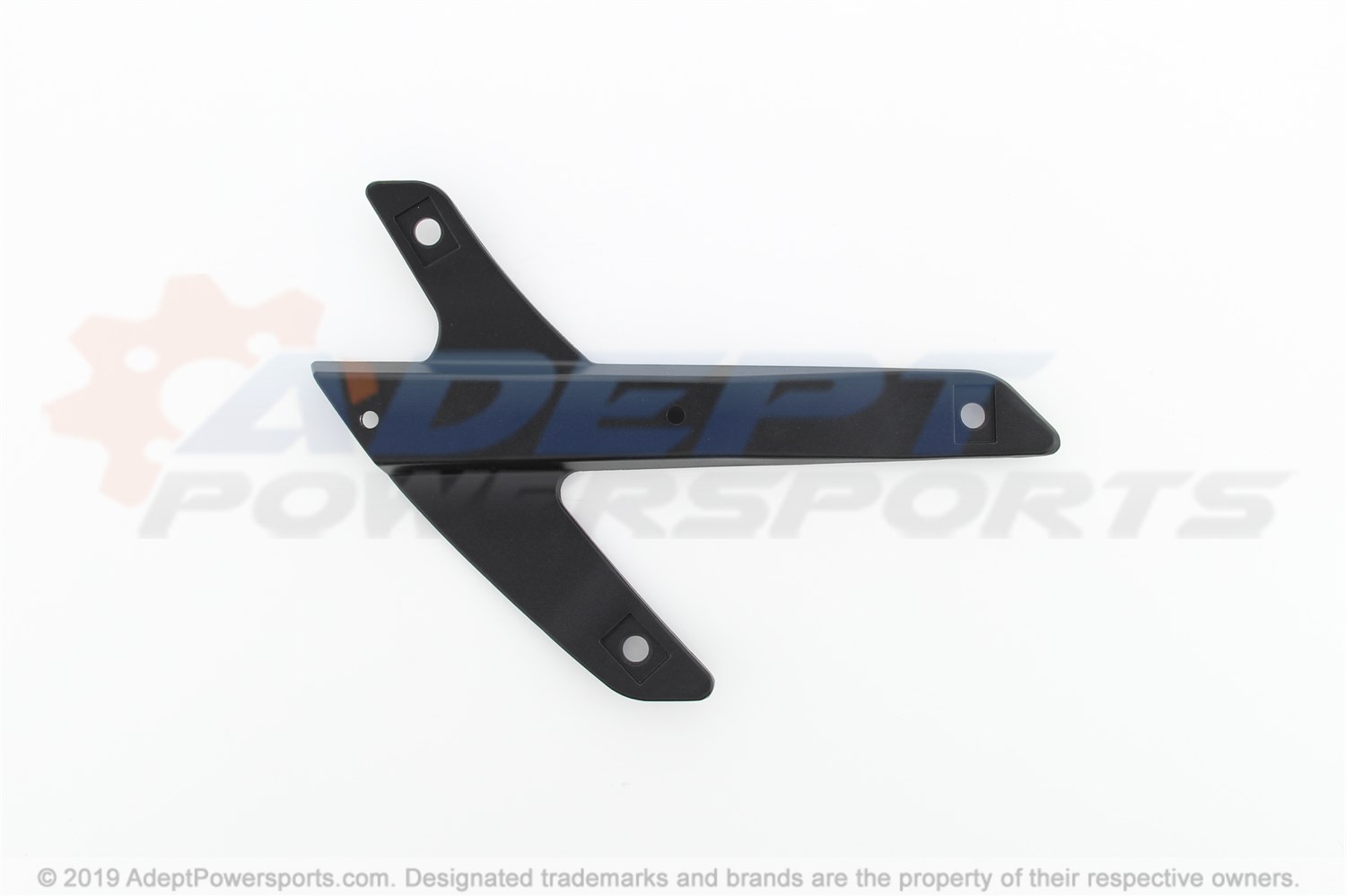

SUPPORT-WINDSHIELD

Part #: 5136398 Required per assembly: 2
Currently Not Available
5

BLT-SHD, M6X1.0, 7MM, 9MM

Part #: 7518788 Required per assembly: 4
Currently Not Available
6
Polaris 7518591 Scr-Hxflghd, M6x16, 0600086

SCR-HXFLGHD, M6X16, 0600086

Part #: 7518591 Required per assembly: 2
Currently Not Available
7

KIT-SCREWS, TALL, WINDSHIELD

Part #: 2204573 Required per assembly: 1
Currently Not Available
8

BRKT-WINDSHIELD, SUPPORT, LH, MTB

Part #: 5137615-626 Required per assembly: 1
Currently Not Available
8
Victory 5137616-626 Brkt-Windshield, Support, Rh, Mtb

BRKT-WINDSHIELD, SUPPORT, RH, MTB

Part #: 5137616-626 Required per assembly: 1
Currently Not Available
9

ASM-DEFLECTOR, LH

Part #: 1018237 Required per assembly: 1
Currently Not Available
9

ASM-DEFLECTOR, RH

Part #: 1018238 Required per assembly: 1
Currently Not Available
10

SCR-HXBH M4.2X1.4X25 8.8 ZOD

Part #: 7519309 Required per assembly: 4
Currently Not Available
11

WINDSHIELD-TALL

Part #: 5438926 Required per assembly: 1 Note: (Touring)
Currently Not Available
