OEM Parts Victory 2012 Victory HIGHBALL (V12WB36NA) Engine, Air Intake System - V12wb36na

2012 Victory HIGHBALL (V12WB36NA) - Engine, Air Intake System - V12wb36na

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SCR-PANHD, M5X0.8X16

Part #: 7518715 Required per assembly: 1
Currently Not Available
2

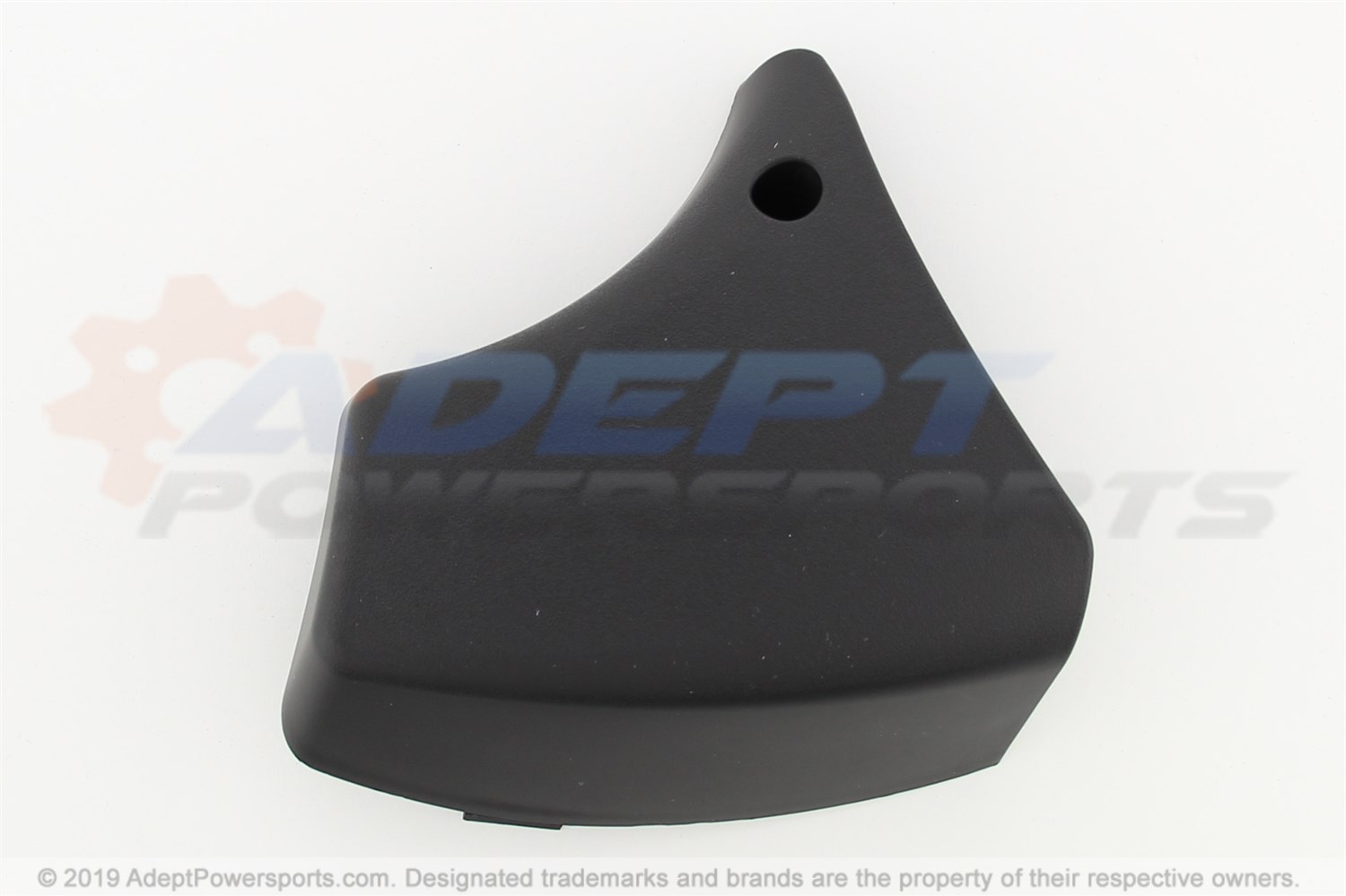

COVER-AIR, FILTER, OPEN

Part #: 5437523 Required per assembly: 1
Currently Not Available
3

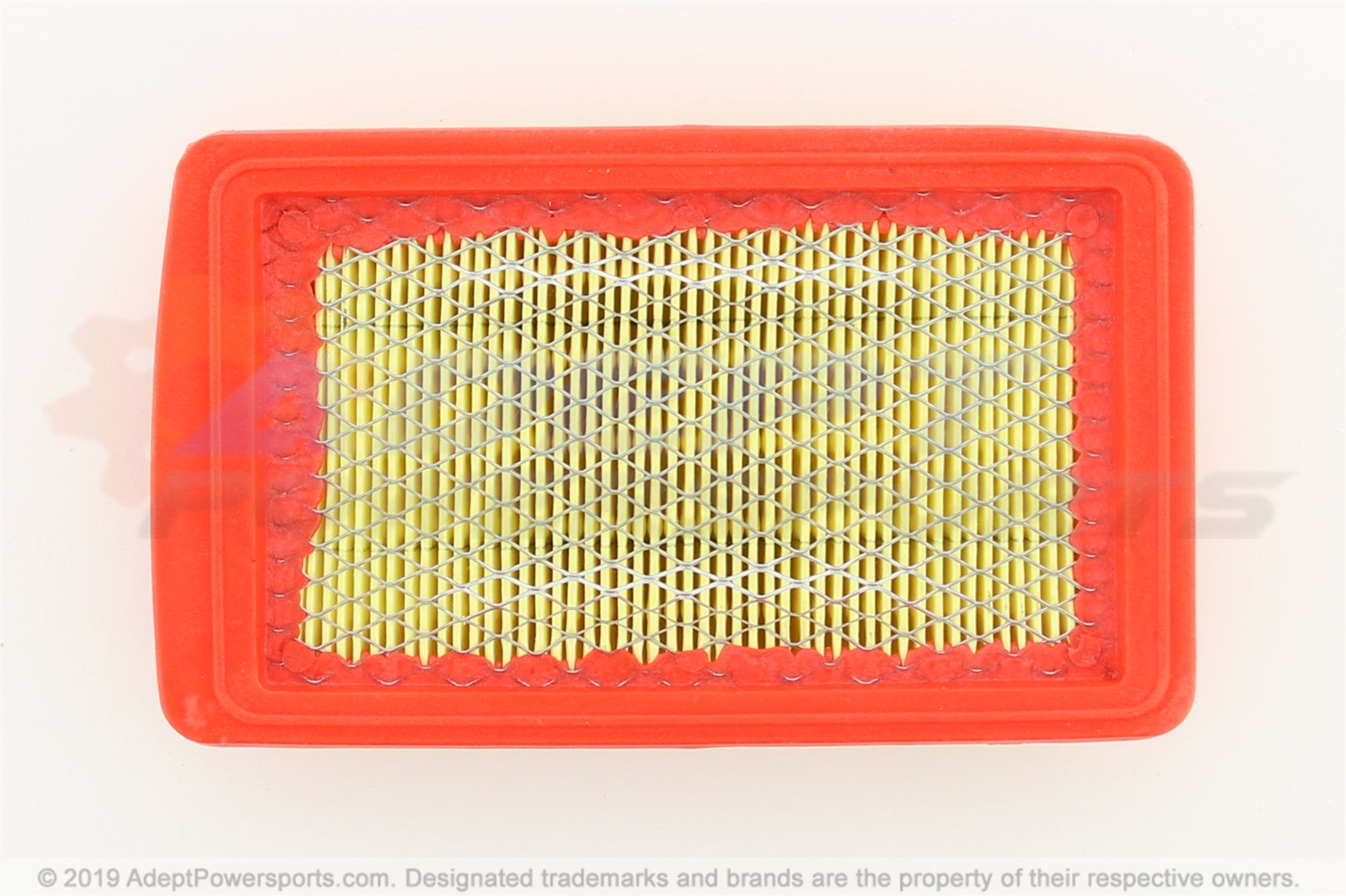

FILTER-AIR, FLAT

Part #: 5813074 Required per assembly: 1
Currently Not Available
4

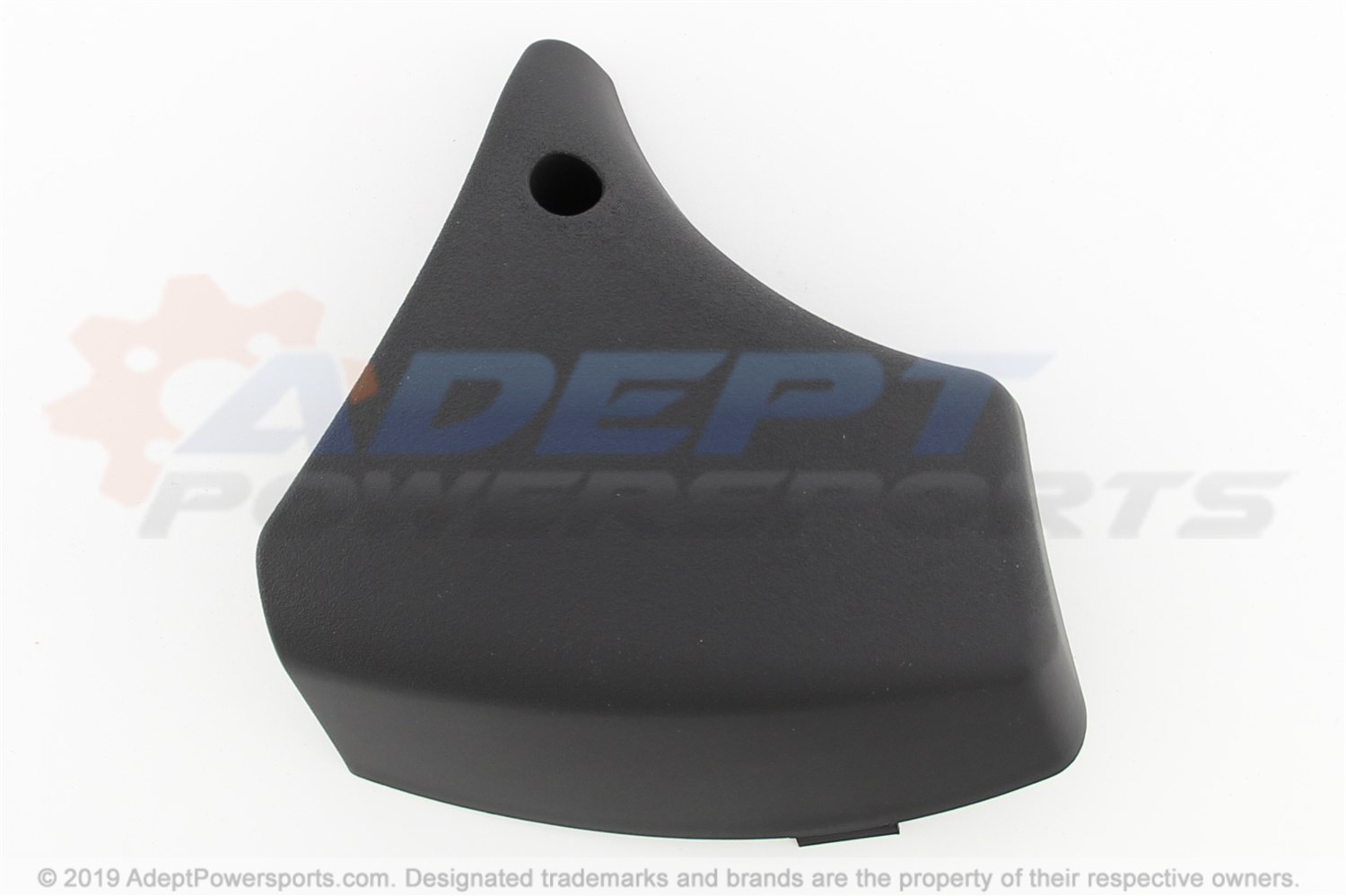

COVER-AIR, FILTER, RT, US

Part #: 5438419 Required per assembly: 1 Note: (North America Only)
Currently Not Available
4

COVER-AIR, FILTER, RT, EU

Part #: 5438418 Required per assembly: 1 Note: (Int'l)
Currently Not Available
5

ASM-AIRBOX WELD

Part #: 1017565 Required per assembly: 1
Currently Not Available
6

BUMPER-AIR, BOX, RUBBER

Part #: 5413917 Required per assembly: 1
Currently Not Available
7

SEAL-AIRBOX

Part #: 5813073 Required per assembly: 1
Currently Not Available
8

HOSE-BREATHER

Part #: 5437081 Required per assembly: 1
Currently Not Available
9

CLAMP-BREATHER, HOSE, 3/4

Part #: 7080782 Required per assembly: 1
Currently Not Available
10

CLAMP-RUBBER, COATED, .875, ID

Part #: 7081423 Required per assembly: 1
Currently Not Available
11

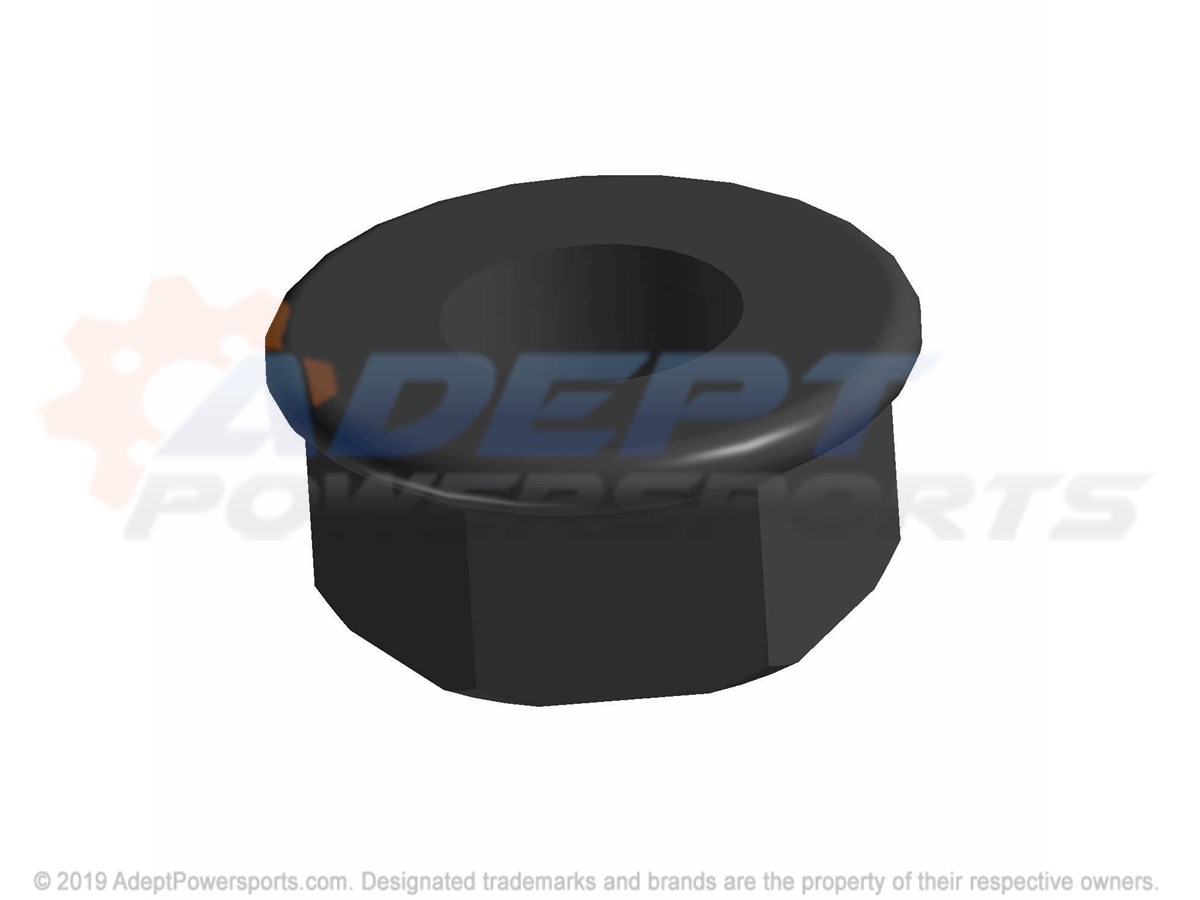

NUT

Part #: 7710495 Required per assembly: 1
Currently Not Available
