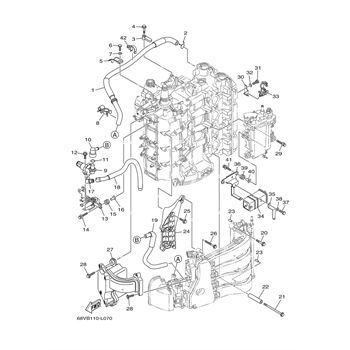

Intake 2 replacement parts for 2012 Yamaha LF115XA

OEM Parts Yamaha 2012 Yamaha LF115XA Intake 2

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

2	CLIP Part #: 90467-20M15-00 Required per assembly: 1 $6.75 $6.35 - + Add to cart
3	CLAMP Part #: 6D8-82544-00-00 Required per assembly: 1 $13.85 $12.99 - + Add to cart
4	BOLT, FLANGE, DEEP Part #: 95D75-06025-00 Required per assembly: 1 $3.45 $3.24 - + Add to cart
5	PLATE 2 Part #: 68V-82389-00-00 Required per assembly: 1 $17.10 $16.10 - + Add to cart
6	BOLT, WITH, WASHER Part #: 97080-06012-00 Required per assembly: 1 $2.99 $2.84 - + Add to cart
7	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 1 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
8	CLAMP Part #: 90464-20011-00 Required per assembly: 1 $6.70 $6.27 - + Add to cart
9	VALVE, IDLE, SPEED Part #: 6C5-13713-02-00 Required per assembly: 1 $221.87 $201.70 - + Add to cart
10	NIPPLE, HOSE Part #: 6CJ-11372-00-00 Required per assembly: 1 $22.55 $21.24 - + Add to cart
11	O-RING Part #: 93210-33003-00 Required per assembly: 1 $7.20 $6.80 - + Add to cart
12	SCREW, WITH, WASHER Part #: 97980-05214-00 Required per assembly: 2 $4.59 $4.31 - + Add to cart
13	STAY 2 Part #: 68V-13152-00-00 Required per assembly: 1 $31.94 $30.01 - + Add to cart
14	BOLT, WITH, WASHER Part #: 90119-06288-00 Required per assembly: 2 $4.40 $4.16 - + Add to cart
15	GROMMET (6K7) Part #: 90480-10M23-00 Required per assembly: 2 Note: ((67M1)) [GROMMET (6K7)] $9.65 $9.07 - + Add to cart
16	COLLAR Part #: 90387-06M60-00 Required per assembly: 2 $8.59 $8.16 - + Add to cart
17	PIPE, AIR Part #: 68V-13897-00-00 Required per assembly: 1 $10.65 $10.05 - + Add to cart
18	HOSE, AIR, 2 Part #: 68V-13892-00-00 Required per assembly: 1 $25.14 $23.66 - + Add to cart
19	HOSE, AIR Part #: 68V-13543-10-00 Required per assembly: 1 $26.60 $24.95 - + Add to cart
20	BOLT, WASHER, BASED Part #: 90105-08M87-00 Required per assembly: 4 $1.75 $1.44 - + Add to cart
21	BOLT, FLANGE Part #: 90105-08242-00 Required per assembly: 1 $7.79 $7.32 - + Add to cart
22	COLLAR Part #: 90387-09017-00 Required per assembly: 1 $27.05 $25.40 - + Add to cart
23	PIN, SPRING Part #: 91690-50014-00 Required per assembly: 2 $5.54 $5.35 - + Add to cart
24	BRACKET 1 Part #: 68V-14291-10-00 Required per assembly: 1 $82.25 $77.11 - + Add to cart
25	BOLT, FLANGE, DEEP, RECESS Part #: 95D95-08020-00 Required per assembly: 3 $1.58 $1.44 - + Add to cart
26	BOLT 1 Part #: 68V-13573-10-00 Required per assembly: 3 $3.45 $3.24 - + Add to cart
27	MANIFOLD 2 Part #: 68V-13642-00-00 Required per assembly: 1 $311.43 $292.12 - + Add to cart
28	BOLT, FLANGE, DEEP, RECESS Part #: 95D95-06030-00 Required per assembly: 6 $5.34 $5.07 - + Add to cart
29	BOLT, WITH, WASHER Part #: 90119-06298-00 Required per assembly: 4 $4.70 $3.90 - + Add to cart
30	PLATE, PIPE, GUIDE Part #: 68V-21457-00-00 Required per assembly: 1 $7.29 $6.86 - + Add to cart
31	BOLT, WITH, WASHER Part #: 97080-06012-00 Required per assembly: 1 $2.99 $2.84 - + Add to cart
32	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 1 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
33	CLAMP Part #: 90464-18246-00 Required per assembly: 1 $2.43 $1.62 - + Add to cart
34	CANISTER ASSEMBLY Part #: 6P2-24170-00-00 Required per assembly: 1 $103.30 $96.83 - + Add to cart
35	HOLDER Part #: 68V-2419A-00-00 Required per assembly: 1 $11.10 $10.51 - + Add to cart
36	BRACKET, CANISTER Part #: 68V-2134X-00-00 Required per assembly: 1 $37.75 $35.44 - + Add to cart
37	BOLT, HEXAGON, DEEP, RECESS Part #: 97D95-06016-00 Required per assembly: 1 $2.75 $1.87 - + Add to cart
38	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 1 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
39	GROMMET (6K7) Part #: 90480-10M23-00 Required per assembly: 2 Note: ((67M1)) [GROMMET (6K7)] $9.65 $9.07 - + Add to cart
40	COLLAR Part #: 90387-06M60-00 Required per assembly: 2 $8.59 $8.16 - + Add to cart
41	BOLT, WITH, WASHER Part #: 90119-06288-00 Required per assembly: 2 $4.40 $4.16 - + Add to cart
42	CLAMP Part #: 90464-26002-00 Required per assembly: 1 $5.65 $5.44 - + Add to cart
