Meter replacement parts for 2012 Yamaha Stryker (XVS13CBCO)

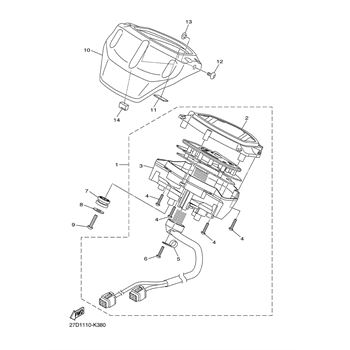

OEM Parts Yamaha 2012 Yamaha Stryker (XVS13CBCO) Meter

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	METER ASSEMBLY (MPH) Part #: 27D-83500-00-00 Required per assembly: 1 $873.76 $794.33 - + Add to cart
2	CASE, METER, UPPER Part #: 3D8-8353E-00-00 Required per assembly: 1 $181.99 $169.80 - + Add to cart
3	CASE, SPEEDOMETER, LOWER Part #: 27D-83572-00-00 Required per assembly: 1 $42.99 $37.26 - + Add to cart
4	SCREW, TAPPING Part #: 97702-30014-00 Required per assembly: 9 $0.75 $0.62 - + Add to cart
5	CLAMP Part #: 4NK-8357E-00-00 Required per assembly: 1 $2.60 $2.15 - + Add to cart
6	SCREW, TAPPING Part #: 97707-40014-00 Required per assembly: 1 $8.49 $5.88 - + Add to cart
7	DAMPER Part #: 4XV-83513-00-00 Required per assembly: 3 $8.49 $6.29 - + Add to cart
8	WASHER, PLATE Part #: 90201-05029-00 Required per assembly: 3 $8.49 $5.17 - + Add to cart
9	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 3 $1.85 $1.41 - + Add to cart
10	COVER, METER Part #: 27D-83559-00-00 Required per assembly: 1 $139.99 $118.24 - + Add to cart
11	DAMPER Part #: 3D8-83541-00-00 Required per assembly: 2 $8.49 $6.35 - + Add to cart
12	BOLT, HEXAGON, SOCKET, BUTTON Part #: 90111-05059-00 Required per assembly: 2 $2.79 $2.10 - + Add to cart
13	COLLAR Part #: 90387-05035-00 Required per assembly: 2 $8.49 $4.94 - + Add to cart
14	DAMPER, LOCATING, 1 Part #: 3MA-24181-00-00 Required per assembly: 1 $8.49 $6.41 - + Add to cart
