Water Pump replacement parts for 2012 Yamaha VECTOR LTX RS90PLTBB/RS90PLTBR

OEM Parts Yamaha 2012 Yamaha VECTOR LTX RS90PLTBB/RS90PLTBR Water Pump

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

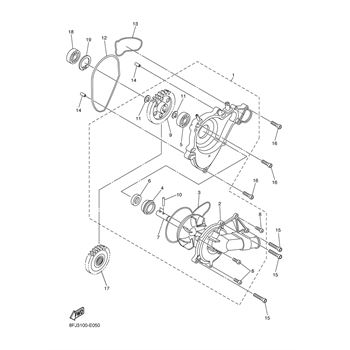

Location	Part Description

1	WATER PUMP ASSEMBLY Part #: 8ES-12420-02-00 Required per assembly: 1 $400.99 $362.55 - + Add to cart
2	COVER, HOUSING Part #: 8ES-12422-00-00 Required per assembly: 1 $41.99 $35.99 - + Add to cart
3	GASKET, HOUSING, COVER, 1 Part #: 8ES-12427-00-00 Required per assembly: 1 $18.98 $14.82 - + Add to cart
4	SEAL, MECHANICAL Part #: 8ES-12438-00-00 Required per assembly: 1 $49.99 $40.63 - + Add to cart
5	BRG, R-B, 6000, 26MM, 19G, KY Part #: 93306-00004-00 Required per assembly: 1 $41.99 $32.13 - + Add to cart
6	OIL SEAL (SD 10-21-5 HS) Part #: 93102-10207-00 Required per assembly: 1 Note: (SD 10-21-5 HS) $12.49 $10.05 - + Add to cart
7	IMPELLER SHAFT ASSEMBLY Part #: 8ES-12450-01-00 Required per assembly: 1 $41.99 $32.27 - + Add to cart
8	SCREW, PAN, HEAD Part #: 98580-06016-00 Required per assembly: 3 $3.35 $3.18 - + Add to cart
9	GEAR, IMPELLER, SHAFT Part #: 8ES-12459-01-00 Required per assembly: 1 $86.98 $71.17 - + Add to cart
10	PIN, DOWEL Part #: 93604-16092-00 Required per assembly: 2 $3.18 $1.96 - + Add to cart
12	GASKET Part #: 8ES-12435-00-00 Required per assembly: 1 $16.48 $12.23 - + Add to cart
13	GASKET Part #: 8ES-12434-00-00 Required per assembly: 1 $5.49 $3.49 - + Add to cart
14	PIN, DOWEL(6G8) Part #: 99530-08012-00 Required per assembly: 2 $6.59 $6.18 - + Add to cart
15	BOLT, HEXAGON, SOCKET, HEAD Part #: 91312-06040-00 Required per assembly: 4 $9.49 $6.21 - + Add to cart
16	BOLT, SOCKET Part #: 91317-06025-00 Required per assembly: 3 $2.64 $2.01 - + Add to cart
17	GEAR, DRIVE Part #: 8ES-12436-00-00 Required per assembly: 1 $62.99 $51.51 - + Add to cart
18	BRG, R-B, 6000, 26MM, 19G, KY Part #: 93306-00004-00 Required per assembly: 1 $41.99 $32.13 - + Add to cart
19	CIRCLIP, R-TYPE Part #: 93420-26077-00 Required per assembly: 1 $6.49 $5.50 - + Add to cart
