Crankshaft & Piston replacement parts for 2012 Yamaha VXR VX1800AL

OEM Parts Yamaha 2012 Yamaha VXR VX1800AL Crankshaft & Piston

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKSHAFT Part #: 6S5-11411-00-00 Required per assembly: 1 $2,462.50 $2,268.64 - + Add to cart

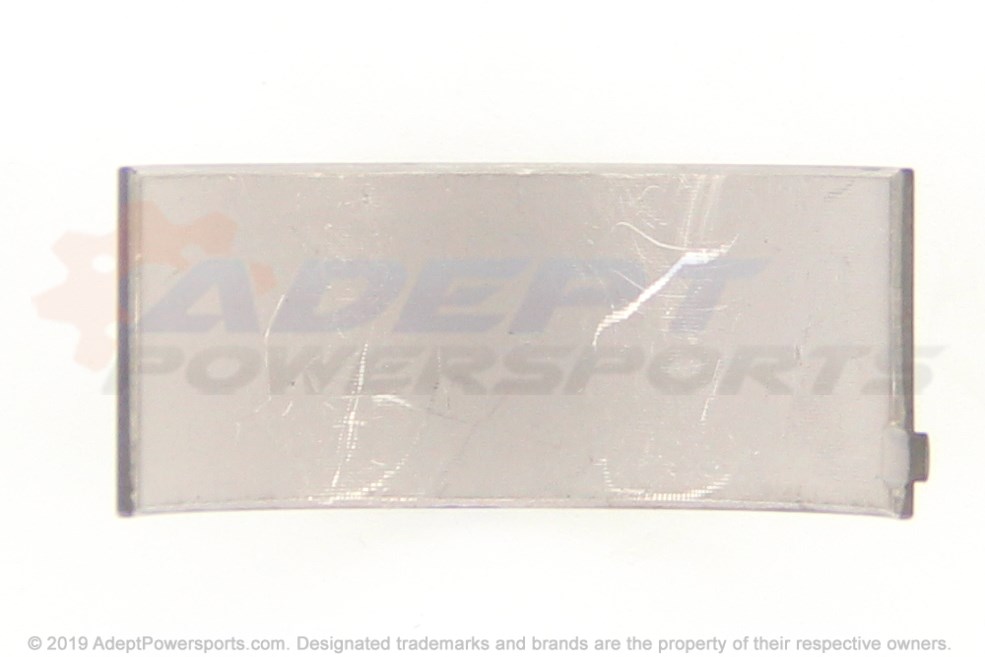

2	PLANE, BEARING, CRANKSHAFT, 1 Part #: 6S5-11416-20-00 Required per assembly: 10 Note: UR BLUE $19.98 $19.64 - + Add to cart
2	PLANE, BEARING, CRANKSHAFT, 1 Part #: 6S5-11416-10-00 Required per assembly: 10 Note: UR BLACK $19.98 $19.64 - + Add to cart
2	PLANE, BEARING, CRANKSHAFT, 1 Part #: 6S5-11416-40-00 Required per assembly: 10 Note: UR YELLOW $20.77 $18.88 - + Add to cart
2	PLANE, BEARING, CRANKSHAFT, 1 Part #: 6S5-11416-00-00 Required per assembly: 10 Note: UR BROWN $19.98 $19.64 - + Add to cart
2	PLANE, BEARING, CRANKSHAFT, 1 Part #: 6S5-11416-30-00 Required per assembly: 10 Note: UR GREEN $20.77 $18.88 - + Add to cart
3	PISTON (STD) Part #: 6BH-11631-00-B0 Required per assembly: 4 Note: (STD) $130.99 $130.00 - + Add to cart
4	PISTON RING SET (STD) Part #: 6S5-11603-01-00 Required per assembly: 4 $74.98 $74.07 - + Add to cart
5	PIN, PISTON Part #: 6S5-11633-00-00 Required per assembly: 4 $34.89 $31.72 - + Add to cart
6	CIRCLIP, INNER Part #: 93450-24028-00 Required per assembly: 8 $5.59 $4.11 - + Add to cart
7	CONNECTING ROD ASSEMBLY Part #: 6BH-11650-00-00 Required per assembly: 4 $216.99 $214.69 - + Add to cart
8	BOLT, CONNECTING, ROD Part #: 6S5-11654-00-00 Required per assembly: 2 $7.49 $6.80 - + Add to cart
9	NUT, SPEC'L, SHAPE Part #: 90179-09379-00 Required per assembly: 2 $9.49 $8.20 - + Add to cart
10	PLANE, BEARING, CONNECTING, ROD Part #: 6S5-11656-30-00 Required per assembly: 8 Note: UR GREEN $17.45 $15.86 - + Add to cart
10	PLANE, BEARING, CONNECTING, ROD Part #: 6S5-11656-20-00 Required per assembly: 8 Note: UR BLUE $17.45 $15.86 - + Add to cart
10	PLANE, BEARING, CONNECTING, ROD Part #: 6S5-11656-10-00 Required per assembly: 8 Note: UR BLACK $17.45 $15.86 - + Add to cart
10	PLANE, BEARING, CONNECTING, ROD Part #: 6S5-11656-00-00 Required per assembly: 8 Note: UR BROWN $17.45 $15.86 - + Add to cart
11	SHAFT, TRANSFER Part #: 6S5-17572-01-00 Required per assembly: 1 $310.49 $305.41 - + Add to cart
12	WASHER Part #: 6S5-12289-00-00 Required per assembly: 1 $31.98 $31.72 - + Add to cart
13	FLANGE, COUPLING Part #: 6S5-45813-01-00 Required per assembly: 1 $120.98 $119.42 - + Add to cart
14	HOLDER 2 Part #: 6S5-17525-01-00 Required per assembly: 1 $84.81 $77.10 - + Add to cart
15	NUT, SPECIAL Part #: 6S5-11459-01-00 Required per assembly: 1 $41.55 $37.77 - + Add to cart
16	GEAR, TRANSFER, DRI Part #: 6BH-17586-11-00 Required per assembly: 1 $189.49 $187.46 - + Add to cart
17	BOLT Part #: 6S5-17031-00-00 Required per assembly: 1 $39.88 $36.26 - + Add to cart
