Crankshaft, Piston And Cylinder replacement parts for 2013 Can Am Outlander 500EFI STD, DPS & XT

OEM Parts Can Am 2013 Can Am Outlander 500EFI STD, DPS & XT Crankshaft, Piston And Cylinder

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKSHAFT. XT, XT-P Part #: 420219697 Required per assembly: 1 Currently Not Available
2	WOODRUFF KEY 4 X 5 Part #: 420246570 Required per assembly: 1 $2.77 $2.24 - + Add to cart
3	CONNECTING ROD ASSEMBLY Part #: 420217455 Required per assembly: 2 Currently Not Available
4	CONNECTING ROD SCREW M7 X 1 Part #: 420641794 Required per assembly: 2 Currently Not Available
5	PLAIN BEARING Part #: 420233112 Required per assembly: 4 Currently Not Available

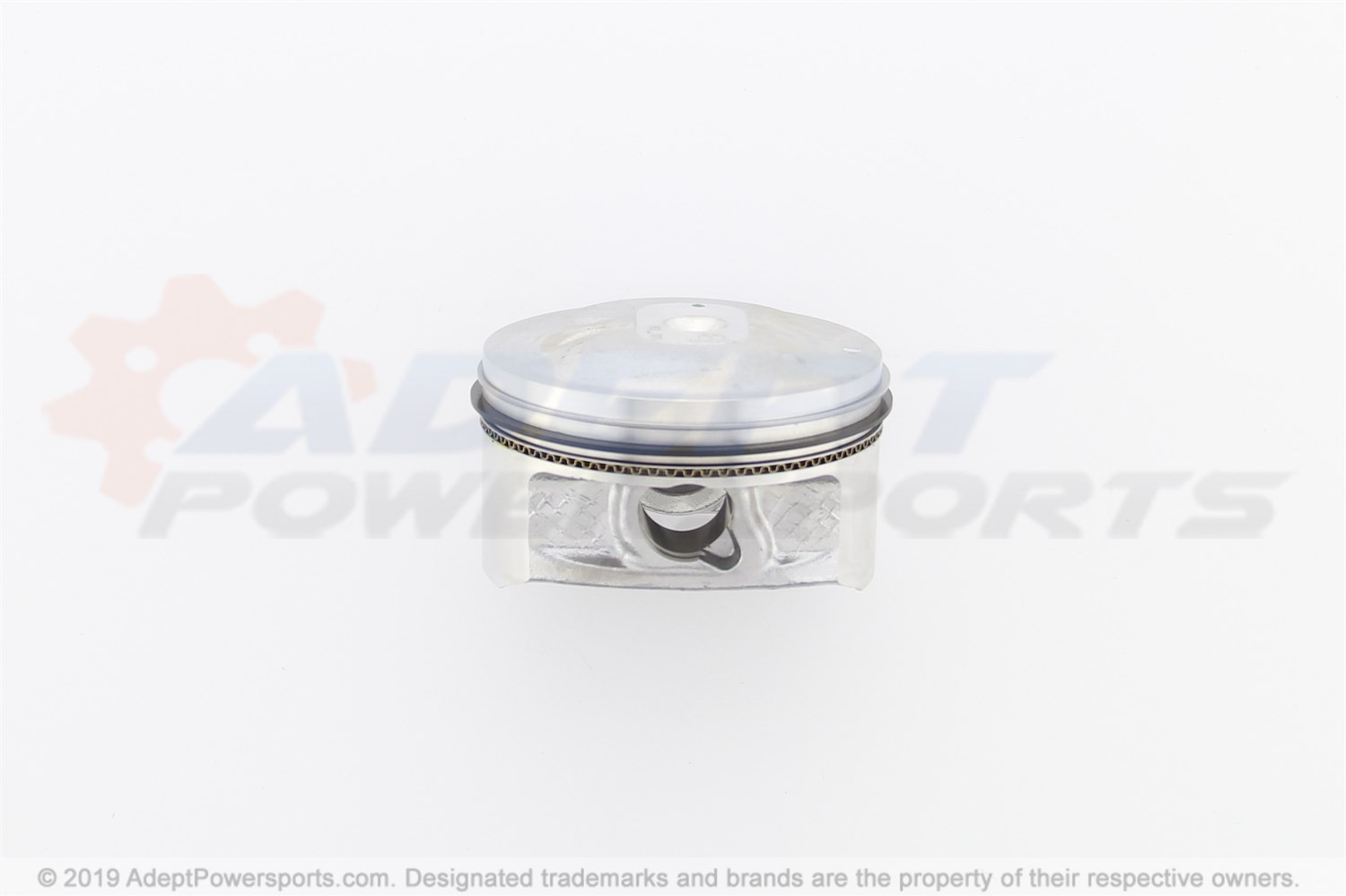

6	PISTON ASSEMBLY, 81.958 MM Part #: 420684412 Required per assembly: 2 Currently Not Available
7	PISTON RING SET Part #: 420684384 Required per assembly: 2 Currently Not Available
8	PISTON PIN Part #: 420216310 Required per assembly: 2 Currently Not Available
9	PISTON CIRCLIP Part #: 420845540 Required per assembly: 4 Currently Not Available
10	GASKET Part #: 420630210 Required per assembly: 2 Currently Not Available
11	CYLINDER WITH SLEEVE Part #: 420413211 Required per assembly: 2 Currently Not Available
12	DRIVE PIN 5 X 10 Part #: 420929650 Required per assembly: 4 Note: Sold in multiples of 10 only Currently Not Available
13	GASKET SET, ENGINE Part #: 420684148 Required per assembly: 1 Currently Not Available
