Rear Fender replacement parts for 2013 Honda ST1300A

OEM Parts Honda 2013 Honda ST1300A Rear Fender

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	ROD, TANK, OPEN Part #: 17891-MCJ-750 Required per assembly: 1 $16.67 - + Add to cart
02	REFLECTOR, REFLEX Part #: 33741-MS6-921 Required per assembly: 1 ~~$18.36~~ $18.11 - + Add to cart
03	GROMMET, TUBE Part #: 36130-ZA8-801 Required per assembly: 2 $3.43 - + Add to cart
04	PLUG, HOLE Part #: 50318-041-600 Required per assembly: 2 ~~$3.18~~ $3.03 - + Add to cart
05	RUBBER, SEAT, CUSHION Part #: 77206-GF0-000 Required per assembly: 1 $7.82 - + Add to cart
06	GROMMET, TOOL, TRAY Part #: 77309-KK6-000 Required per assembly: 1 $3.58 - + Add to cart
07	FENDER, A, RR. Part #: 80100-MCS-770 Required per assembly: 1 ~~$43.80~~ $35.80 - + Add to cart
08	PLUG, RR., FENDER Part #: 80103-192-600 Required per assembly: 1 $3.89 - + Add to cart
09	FENDER, B, RR. Part #: 80106-MCS-D90 Required per assembly: 1 ~~$157.92~~ $157.75 - + Add to cart
10	BAND, UNIT Part #: 80109-MCS-D90 Required per assembly: 1 $8.72 - + Add to cart
11	SEAL, RUBBER Part #: 83605-MCS-G00 Required per assembly: 3 ~~$2.86~~ $2.50 - + Add to cart
12	BRAKET, NUMBER, PLATE Part #: 84700-MCS-770 Required per assembly: 1 $15.53 - + Add to cart

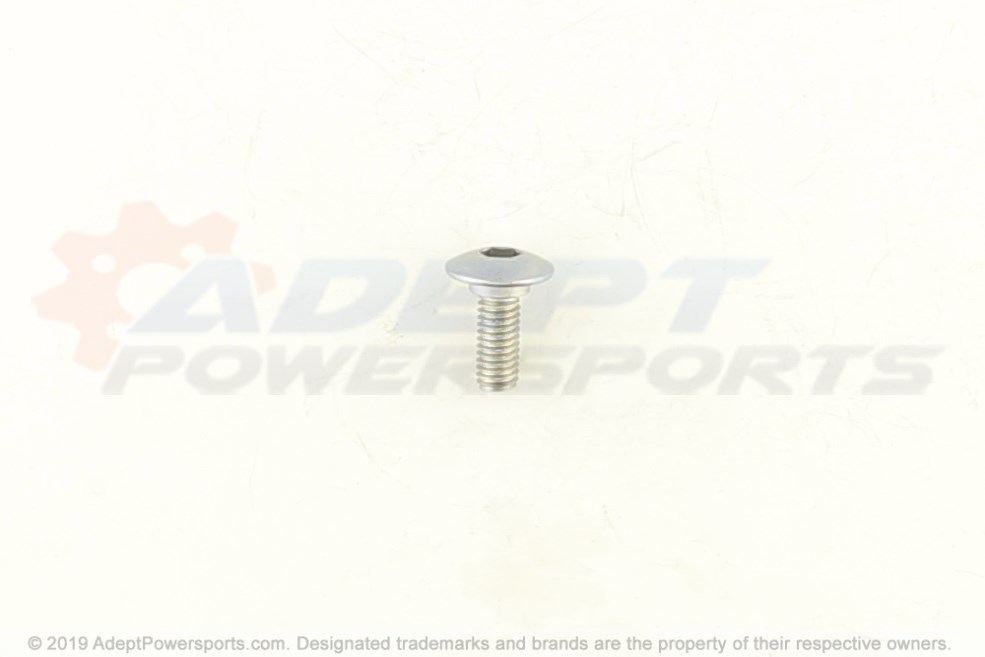

13	SCREW, SPECIAL, (6MM) Part #: 90106-MBL-610 Required per assembly: 1 ~~$3.19~~ $3.05 - + Add to cart
14	SCREW (5X12) Part #: 90106-MBY-000 Required per assembly: 4 ~~$3.70~~ $3.64 - + Add to cart
15	NUT, SPRING, (6MM) Part #: 90320-747-000 Required per assembly: 2 ~~$3.38~~ $3.20 - + Add to cart
16	WASHER, CHAIN, SLIDER Part #: 90556-KR3-000 Required per assembly: 2 $4.18 - + Add to cart
17	CLIP, SPLASH, SHIELD Part #: 90657-SB0-003 Required per assembly: 2 $8.19 - + Add to cart
18	NUT, CLIP, (5MM) Part #: 90677-KAN-961 Required per assembly: 4 $5.94 - + Add to cart
19	PLUG, CONE Part #: 90899-KL8-000 Required per assembly: 1 $4.41 - + Add to cart
20	NUT, FLANGE, (5MM) Part #: 94050-05000 Required per assembly: 1 ~~$2.33~~ $1.96 - + Add to cart
21	NUT, FLANGE, (6MM) Part #: 94050-06000 Required per assembly: 2 ~~$1.73~~ $0.91 - + Add to cart
22	RUBBER B Part #: 95011-62000 Required per assembly: 1 ~~$2.37~~ $1.85 - + Add to cart
23	BOLT, FLANGE, (6X12) Part #: 96001-06012-00 Required per assembly: 1 ~~$2.79~~ $2.67 - + Add to cart
24	BOLT, FLANGE, (6X16) Part #: 96001-06016-00 Required per assembly: 2 ~~$2.09~~ $1.46 - + Add to cart
