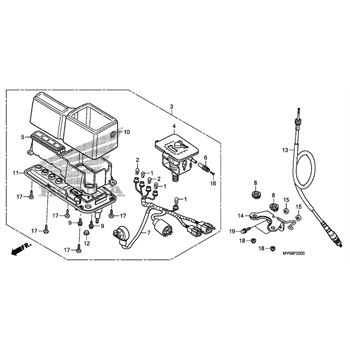

Speedometer replacement parts for 2013 Honda XR650L

OEM Parts Honda 2013 Honda XR650L Speedometer

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	BULB (14V 3.4W) Part #: 37237-SA5-003 $5.02 $4.94 - + Add to cart
01	BULB (14V 3.4W) Part #: 37237-SA5-003 Required per assembly: 3 $5.02 $4.94 - + Add to cart
02	BULB (T10) Part #: 34908-MB9-871 $3.94 $3.58 - + Add to cart
03	SPEEDOMETER ASSEMBLY (MPH/KPH)(COO) Part #: 37200-MGW-315 $427.78 $356.70 - + Add to cart
04	SPEEDOMETER Part #: 37210-MY6-672 Required per assembly: 1 $165.65 $134.10 - + Add to cart
05	CASE ASSEMBLY (INNER) Part #: 37211-MY6-A90 Required per assembly: 1 $31.35 $25.38 - + Add to cart
06	KNOB Part #: 37220-KR3-671 Required per assembly: 1 $12.86 $10.73 - + Add to cart
07	SOCKET Part #: 37223-MY6-671 Required per assembly: 1 $129.09 $104.50 - + Add to cart
08	RUBBER Part #: 37243-MG2-000 Required per assembly: 2 $5.60 $5.09 - + Add to cart
09	SCREW-WASHER (4X12) Part #: 37305-MAW-621 Required per assembly: 2 $2.50 $2.32 - + Add to cart
10	CASE ASSEMBLY (UPPER) (COO) Part #: 37610-MGW-305 Required per assembly: 1 $76.62 $62.02 - + Add to cart
11	CASE ASSEMBLY (LOWER) Part #: 37617-MY6-671 Required per assembly: 1 $69.15 $57.64 - + Add to cart
12	CAP Part #: 37618-MB2-008 Required per assembly: 1 $3.19 $2.97 - + Add to cart
13	CABLE, SPEEDOMETER Part #: 44830-MZ1-000 Required per assembly: 1 $47.30 $39.43 - + Add to cart
14	STAY, SPEEDOMETER Part #: 61315-KR5-000 Required per assembly: 1 $26.26 $21.26 - + Add to cart
15	WASHER (9X20X6) Part #: 90114-MY6-700 Required per assembly: 2 $4.39 $3.99 - + Add to cart
16	SCREW, PAN, (2X6) Part #: 90158-KM7-911 Required per assembly: 1 $2.99 $2.78 - + Add to cart
17	SCREW, TAP, (4X12) Part #: 93903-24380 Required per assembly: 5 $1.95 $1.80 - + Add to cart
18	NUT, CAP, (6MM) Part #: 94021-06020 Required per assembly: 2 $2.81 $2.61 - + Add to cart
19	BOLT, FLANGE, (8X20) Part #: 95701-08020-00 Required per assembly: 2 $2.86 $2.65 - + Add to cart
