OEM Parts Polaris 2013 Polaris 850 Scrambler HO/EPS HO A13GH85AJ/EAK Seat - A13gh85aj/Eak

2013 Polaris 850 Scrambler HO/EPS HO - A13GH85AJ/EAK - Seat - A13gh85aj/Eak

Seat - A13GH85AJ/EAK Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2204682 Kit-Seat Post

KIT-SEAT POST

Part #: 2204682 Required per assembly: 1
Currently Not Available
1

COVERING, SEAT, BLACK/RED

Part #: 2685522 Required per assembly: 1
Currently Not Available
1

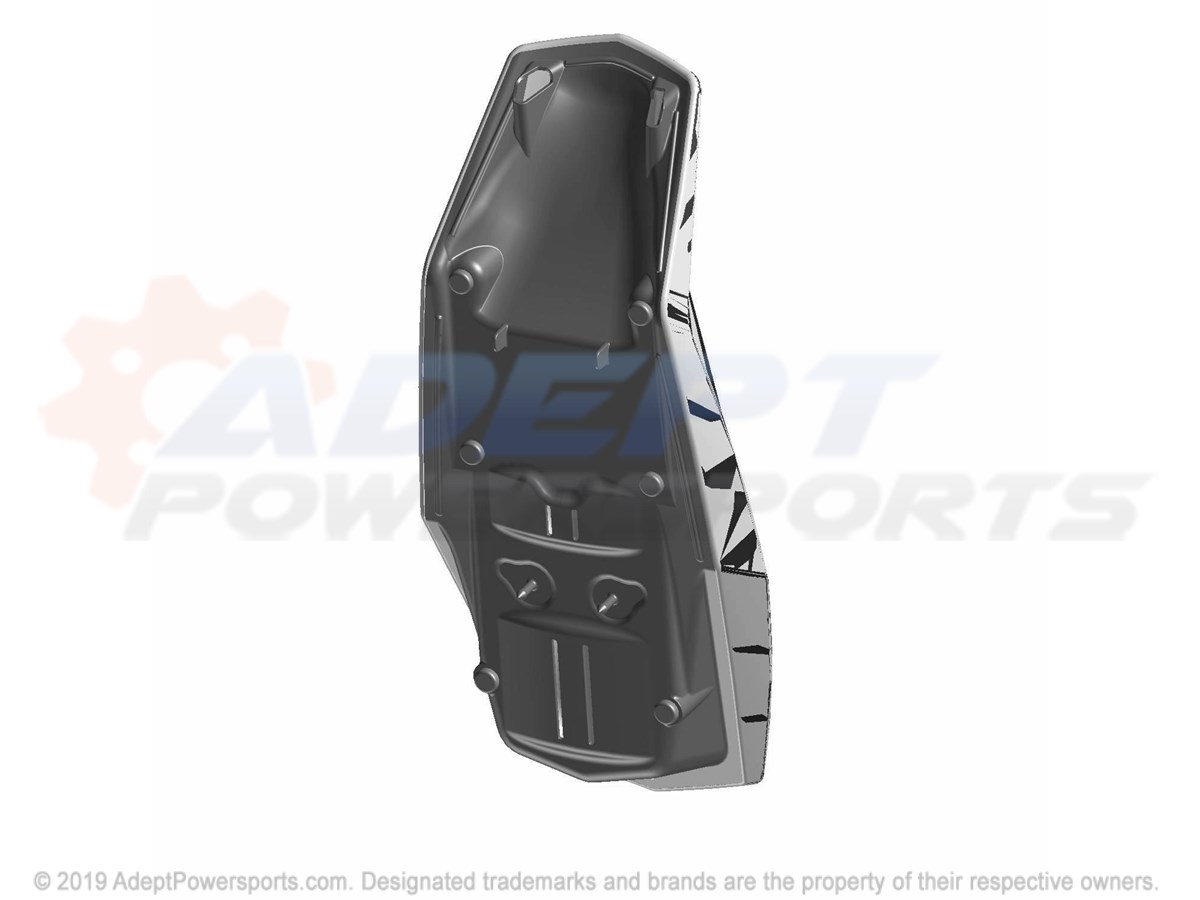

Polaris 2685521 Assembly, Seat, Black/Red

ASSEMBLY, SEAT, BLACK/RED

Part #: 2685521 Required per assembly: 1
Currently Not Available
2

GROMMET, SEAT, LATCH

Part #: 5413691 Required per assembly: 2
Currently Not Available
3
Polaris 5250682 Bracket, Seat, Base

BRACKET, SEAT, BASE

Part #: 5250682 Required per assembly: 2
Currently Not Available
4
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 2
Currently Not Available
5
Polaris 5412067 Bumper-Rubber

BUMPER-RUBBER

Part #: 5412067 Required per assembly: 6 Note: Bumper, Rubber
Currently Not Available
