Brushes and Housing - D132M9JDJ - Brm Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FLANGETTE

Part #: 3120224 Required per assembly: 6
Currently Not Available
1

FLANGETTE

Part #: 3120224 Required per assembly: 6
Currently Not Available
1

FLANGETTE

Part #: 3120224 Required per assembly: 6
Currently Not Available
1

FLANGETTE

Part #: 3120224 Required per assembly: 6
Currently Not Available
1

FLANGETTE

Part #: 3120224 Required per assembly: 6
Currently Not Available
1

FLANGETTE

Part #: 3120224 Required per assembly: 6
Currently Not Available
2

DISC, RETAINING

Part #: 3120354 Required per assembly: 2
Currently Not Available
2

DISC, RETAINING

Part #: 3120354 Required per assembly: 2
Currently Not Available
3

BEARING

Part #: 3120435 Required per assembly: 3
Currently Not Available
3

BEARING

Part #: 3120435 Required per assembly: 3
Currently Not Available
3

BEARING

Part #: 3120435 Required per assembly: 3
Currently Not Available
4

CORE, BRUSH

Part #: 3120495 Required per assembly: 2
Currently Not Available
4

CORE, BRUSH

Part #: 3120495 Required per assembly: 2
Currently Not Available
5

MOUNT, BEARING, LH

Part #: 3120458 Required per assembly: 1
Currently Not Available
6

BRUSH, POLY, CONICAL, 24, INCH

Part #: 3120459 Required per assembly: 4
Currently Not Available
6

BRUSH, POLY, CONICAL, 24, INCH

Part #: 3120459 Required per assembly: 4
Currently Not Available
7

MOUNT, GEARBOX

Part #: 3120489 Required per assembly: 2
Currently Not Available
7

MOUNT, GEARBOX

Part #: 3120489 Required per assembly: 2
Currently Not Available
8

BRUSH, POLY, CONVOLUTED, 24, INCH

Part #: 3120498 Required per assembly: 32
Currently Not Available
8

BRUSH, POLY, CONVOLUTED, 24, INCH

Part #: 3120498 Required per assembly: 32
Currently Not Available
9

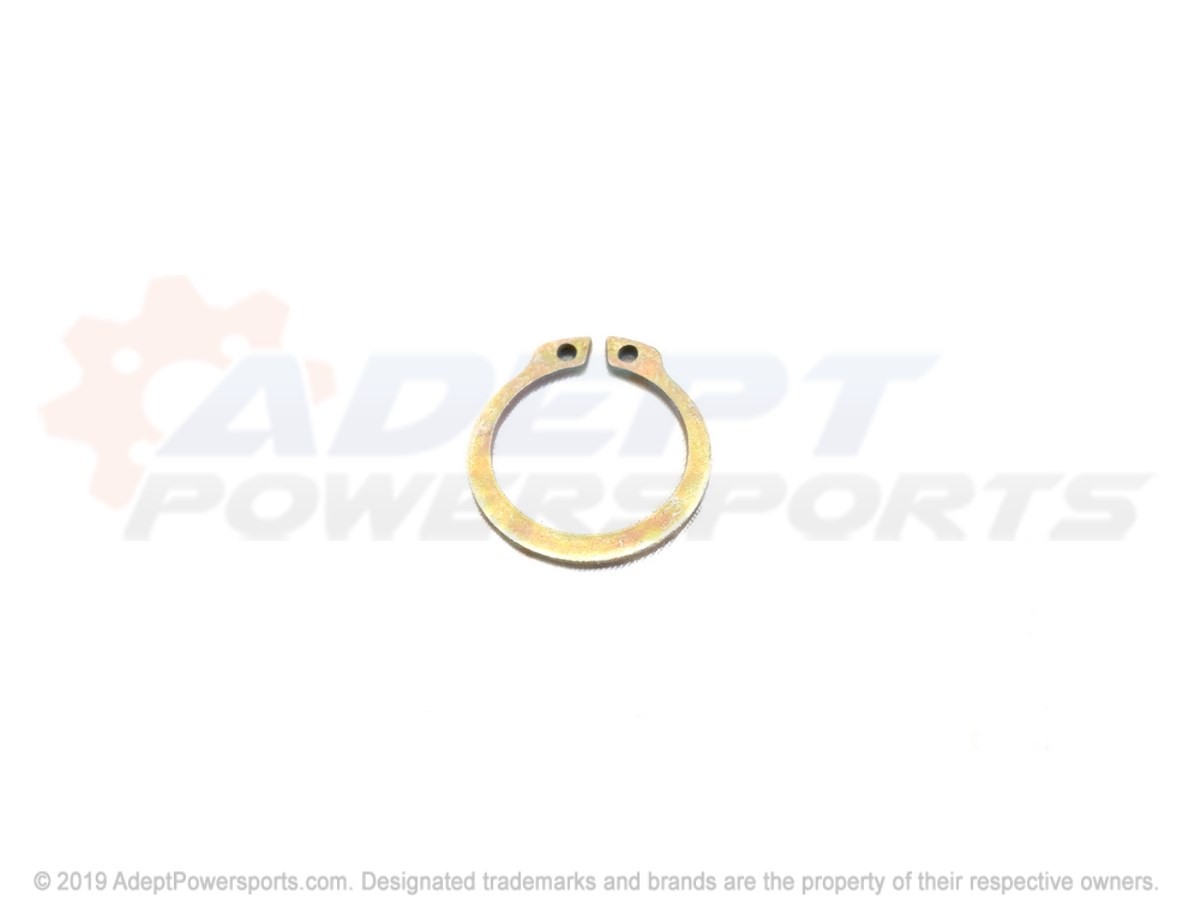

Polaris 3120550 Ring, Snap

RING, SNAP

Part #: 3120550 Required per assembly: 2
Currently Not Available
10

BOLT

Part #: 3120510 Required per assembly: 1
Currently Not Available
11

BOLT

Part #: 3120559 Required per assembly: 2
Currently Not Available
12

BOLT

Part #: 3120564 Required per assembly: 9
Currently Not Available
12

BOLT

Part #: 3120564 Required per assembly: 9
Currently Not Available
12

BOLT

Part #: 3120564 Required per assembly: 9
Currently Not Available
13

NUT

Part #: 3120596 Required per assembly: 2
Currently Not Available
14

BOLT

Part #: 3120599 Required per assembly: 6
Currently Not Available
14

BOLT

Part #: 3120599 Required per assembly: 6
Currently Not Available
15

NUT

Part #: 3120600 Required per assembly: 9
Currently Not Available
15

NUT

Part #: 3120600 Required per assembly: 9
Currently Not Available
15

NUT

Part #: 3120600 Required per assembly: 9
Currently Not Available
16

NUT

Part #: 3120602 Required per assembly: 2
Currently Not Available
16

NUT

Part #: 3120602 Required per assembly: 2
Currently Not Available
17

BOLT

Part #: 3120612 Required per assembly: 8
Currently Not Available
17

BOLT

Part #: 3120612 Required per assembly: 8
Currently Not Available
18

GEARBOX

Part #: 3120466 Required per assembly: 1
Currently Not Available
19

BOLT

Part #: 3120541 Required per assembly: 2
Currently Not Available
19

BOLT

Part #: 3120541 Required per assembly: 2
Currently Not Available
20

BUSHING, CORE

Part #: 3120457 Required per assembly: 1
Currently Not Available
21

SHAFT, CORE, END

Part #: 3120456 Required per assembly: 1
Currently Not Available
22

SHAFT, DRIVE

Part #: 3120460 Required per assembly: 1
Currently Not Available
23

MOUNT, BEARING, RH

Part #: 3120455 Required per assembly: 1
Currently Not Available
24

BOLT

Part #: 3120563 Required per assembly: 8
Currently Not Available
24

BOLT

Part #: 3120563 Required per assembly: 8
Currently Not Available
24

BOLT

Part #: 3120563 Required per assembly: 8
Currently Not Available
25

NUT

Part #: 3120601 Required per assembly: 1
Currently Not Available
