Drive Train, Rear Gearcase - M13wh90mb replacement parts for 2013 Polaris MV DIESEL CREW

OEM Parts Polaris 2013 Polaris MV DIESEL CREW M13WH90MB Drive Train, Rear Gearcase - M13wh90mb

DRIVE TRAIN, REAR GEARCASE - M13WH90MB Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

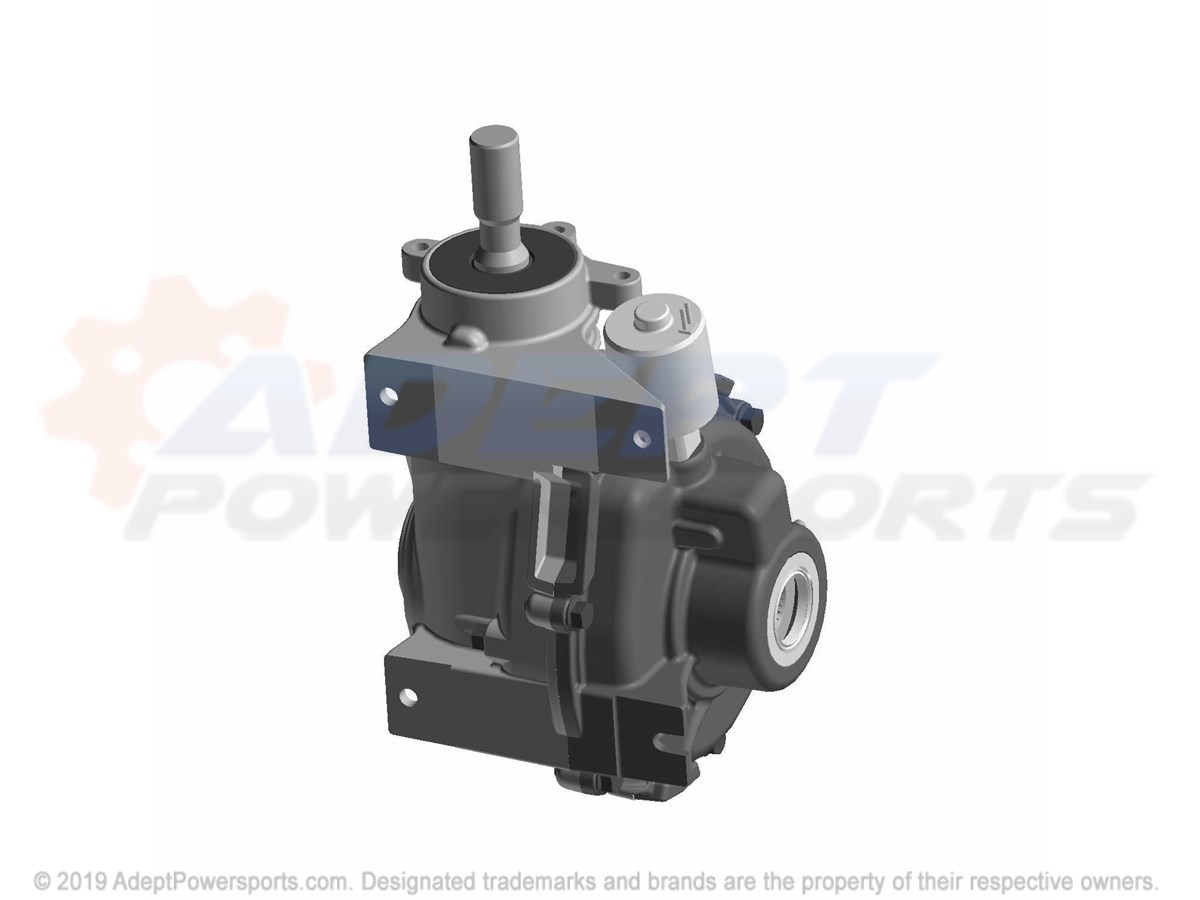

-	ASM-GEARCASE REAR DIFF Part #: 1332927 Required per assembly: 1 Note: Incl. All Currently Not Available
-	KIT-TRANSMISSION-HOUSING Part #: 3235307 Required per assembly: 1 Note: Incl. 1,2, 11, 12,25-30, 34,35,39 Currently Not Available
1	ASSEMBLY, HYPOID, GEAR Part #: 1332714 Required per assembly: 1 Currently Not Available
2	HOUSING-CARRIER Part #: 2204418 Required per assembly: 1 Currently Not Available

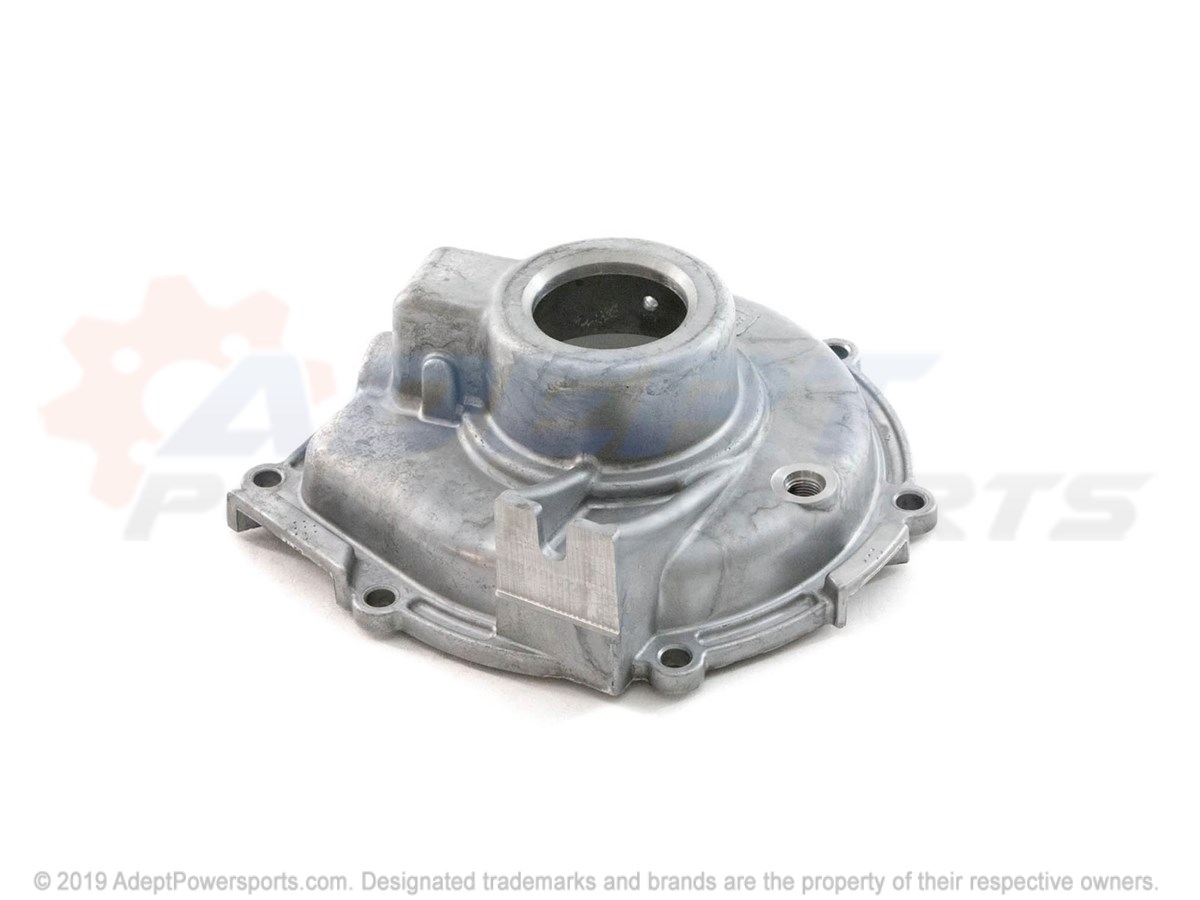

3	COVER, CARRIER Part #: 2204377 Required per assembly: 1 Currently Not Available
4	CASE, HALF, DIFFERENTIAL Part #: 5134901 Required per assembly: 1 Currently Not Available
5	COVER, HALF, CARRIER Part #: 5134906 Required per assembly: 1 Note: Cover, Half, Differential Case Currently Not Available
6	CASE, HALF, DIFFERENTIAL Part #: 5134901 Required per assembly: 2 Currently Not Available
7	GEAR, PINION, MATE, DIFFERENTIAL Part #: 5134903 Required per assembly: 2 Note: Gear, Differential Pinion Mate Currently Not Available
8	WASHER, THRUST, PINION Part #: 7556347 Required per assembly: 2 Currently Not Available
9	PIN, CROSS, DIFFERENTIAL Part #: 5134902 Required per assembly: 1 Note: Pin, Differential Cross Currently Not Available
10	PIN, SPRING Part #: 3234487 Required per assembly: 1 Currently Not Available
11	BOLT, HEX, RING, GEAR Part #: 7518173 Required per assembly: 8 Currently Not Available
12	KIT, DIFFERENTIAL, SHIM Part #: 2875333 Required per assembly: 1 Note: Kit, Shim, Differential [Incl. 12,14] Currently Not Available
13	WASHER, THRUST, SIDE, GEAR Part #: 7556346 Required per assembly: 1 Note: Washer, Thrust, Gear Side Currently Not Available
14	BEARING, CONE, DIFF. Part #: 3514434 Required per assembly: 1 Note: Bearing, Cone, Differential Currently Not Available
15	BEARING, DIFF. Part #: 3514433 Required per assembly: 1 Note: Bearing, Differential Currently Not Available
16	ROLLER, BEARING Part #: 2203500 Required per assembly: 1 Currently Not Available
17	CUP, BEARING Part #: 2203881 Required per assembly: 1 Currently Not Available
18	PLUG, FILL/CHECK Part #: 5137538 Required per assembly: 1 Currently Not Available
19	GEAR, CLUTCH Part #: 5137196 Required per assembly: 1 Currently Not Available
20	O-RING, HSING, HALVES Part #: 5412338 Required per assembly: 1 Currently Not Available
21	PIN, LOCK, ASM. Part #: 2203503 Required per assembly: 1 Currently Not Available
22	VENT, TUBE Part #: 7052334 Required per assembly: 1 Currently Not Available
23	BOLT, HEX, FLANGED Part #: 7518172 Required per assembly: 7 Note: Bolt, Flanged Hex Currently Not Available
24	SOLENOID, DIFFERENTIAL, LOCK Part #: 2411634 Required per assembly: 1 Currently Not Available
25	KIT, SPACER Part #: 2203505 Currently Not Available
26	BEARING, CUP, PINION Part #: 3514431 Required per assembly: 2 Note: Bearing, Cup Pinion Currently Not Available
27	BEARING, CONE, PINION Part #: 3514432 Required per assembly: 2 Currently Not Available
28	NUT, PINION Part #: 7547433 Required per assembly: 1 Currently Not Available
29	SEAL, OIL, PINION Part #: 3610102 Required per assembly: 1 Currently Not Available
30	KIT, SPACER Part #: 2203505 Required per assembly: 1 Currently Not Available
31	BUSHING, LOCK, PIN Part #: 2203507 Required per assembly: 1 Currently Not Available
32	SPRING, RETURN, SHIFT Part #: 7042210 Required per assembly: 2 Note: Spring, Shift Return Currently Not Available
33	PLUG, DRAIN Part #: 5133731 Required per assembly: 1 Currently Not Available
34	SEAL, OIL, SHAFT Part #: 3610146 Required per assembly: 2 Currently Not Available
35	PLUG Part #: 7052523 Required per assembly: 1 Currently Not Available
36	YOKE, SHIFT Part #: 5133759 Required per assembly: 1 Currently Not Available
37	LEVER, SHIFT Part #: 5133760 Required per assembly: 1 Currently Not Available
38	SPRING, LEVER, SHIFT Part #: 7042209 Required per assembly: 1 Note: Spring, Shift Lever Currently Not Available
39	SPACER, PINION Part #: 2203510 Required per assembly: 1 Currently Not Available
