Wire Harnesses - R13rc08ga/Gh/Fa/Fh replacement parts for 2013 Polaris RANGER 48V EV MIDSIZE/INTL

OEM Parts Polaris 2013 Polaris RANGER 48V EV MIDSIZE/INTL R13RC08GA/GH/FA/FH Wire Harnesses - R13rc08ga/Gh/Fa/Fh

Wire Harnesses - R13RC08GA/GH/FA/FH Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

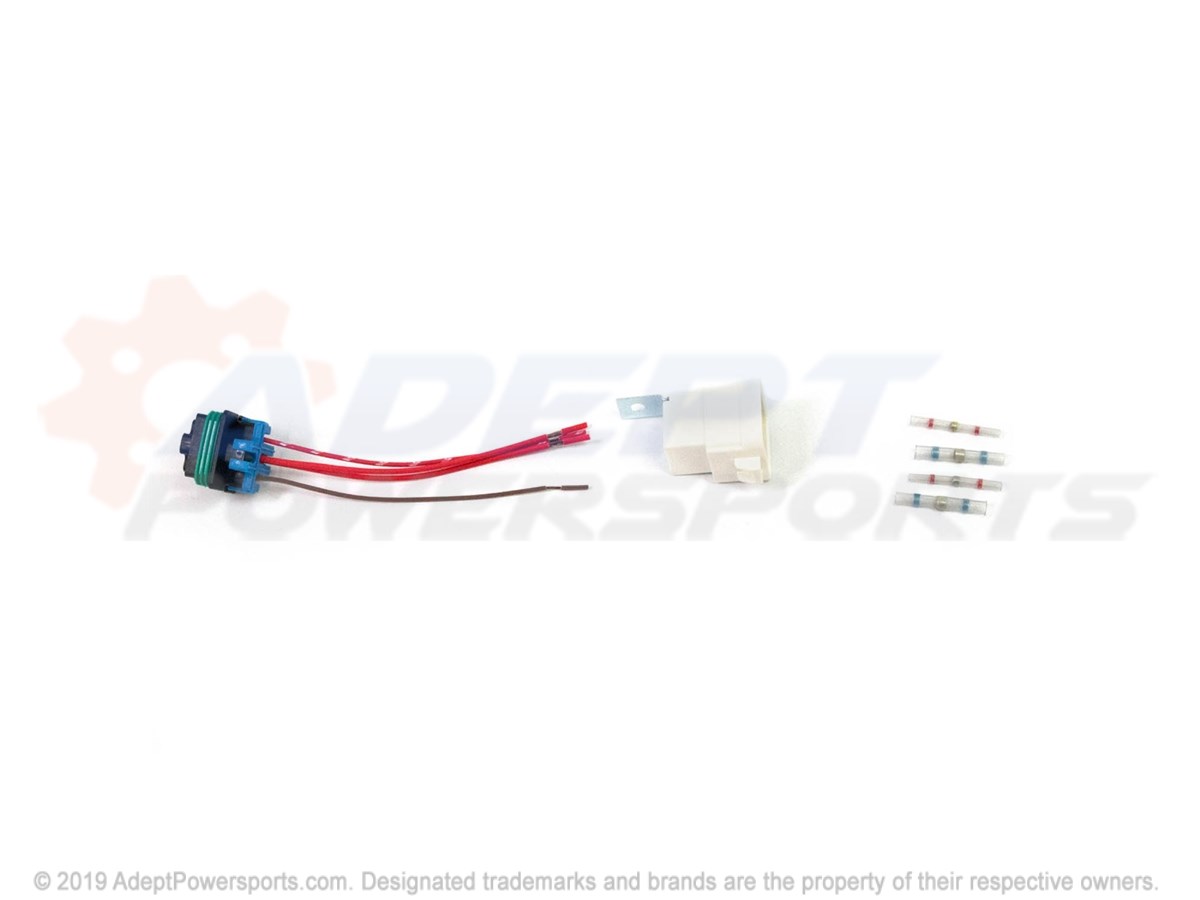

1	KIT-HARNESS CHARGE PLUG RNG EV Part #: 2878648 Required per assembly: 1 Currently Not Available

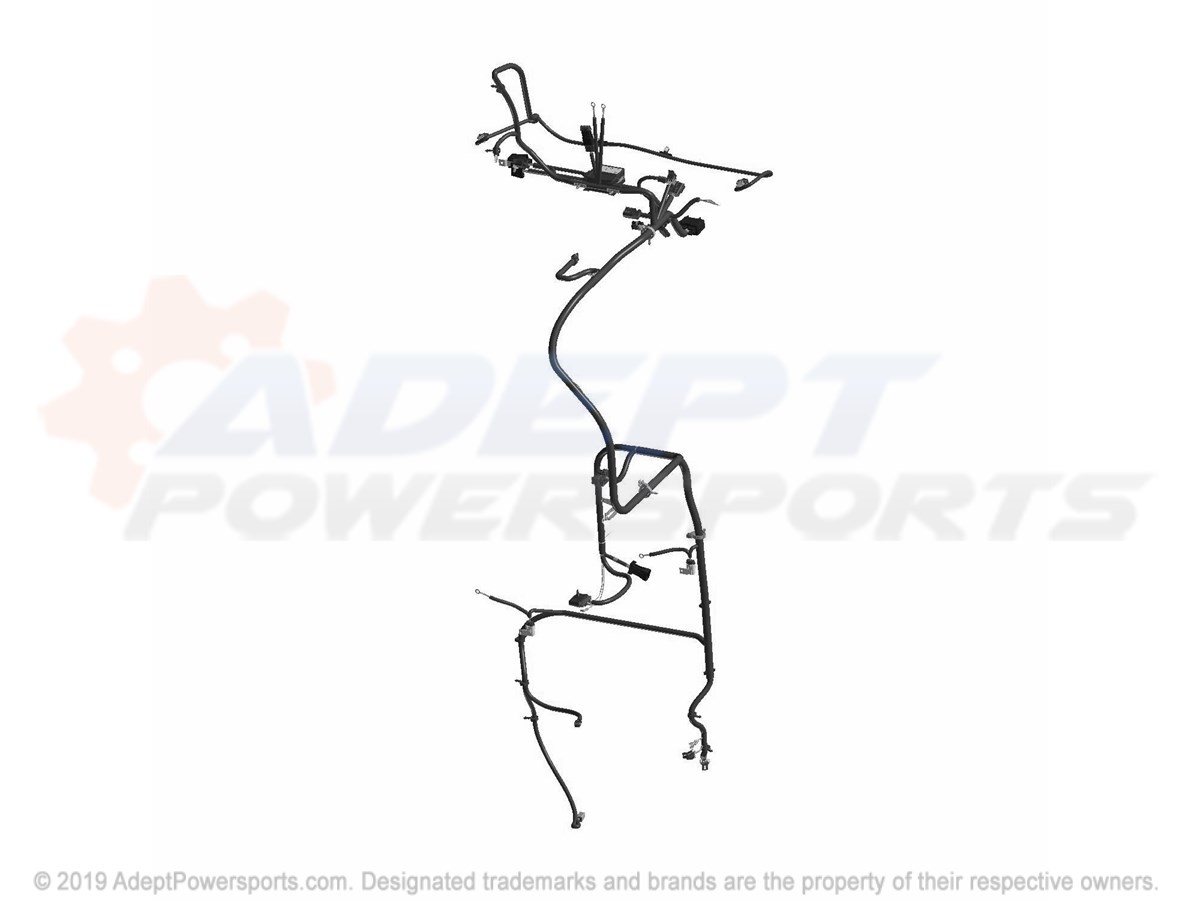

1	HARNESS, CHASSIS Part #: 2412466 Required per assembly: 1 Note: Incl. 2,5,7,8,10,18,20,23-27,29 Currently Not Available
2	LABEL, FUSE, BOX Part #: 7177902 Required per assembly: 1 Note: 48V Fuse Center Currently Not Available
3	TRIM, EDGE, 6FT, BLACK Part #: 5521131 Required per assembly: 1 Currently Not Available
4	BRKT-FUSE BLOCK Part #: 5253928 Required per assembly: 1 Currently Not Available
5	DECAL, FUSE, BOX Part #: 7177901 Required per assembly: 1 Currently Not Available
6	CLAMP-P, CUSHIONED, 1.25", I.D. Part #: 7080869 Required per assembly: 1 Currently Not Available
7	RELAY-SPST 303 48VDC COIL SEAL Part #: 4012851 Required per assembly: 2 Currently Not Available
8	FUSE, 10AMP Part #: 2434016 Required per assembly: 3 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
9	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 3 Note: Cable Tie Currently Not Available
10	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 3 Currently Not Available
11	HARNESS, CARGO, BOX Part #: 2412288 Required per assembly: 1 Currently Not Available
12	HARNESS, DASH Part #: 2411851 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7518529 Required per assembly: 7 ~~$2.99~~ $1.73 - + Add to cart
14	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
15	STRAP PANDUIT Part #: 7080138 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
16	BLOCK, TERMINAL Part #: 4011892 Required per assembly: 1 Note: Block, Terminal Currently Not Available
17	SCREW Part #: 7518529 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart
18	FUSE, 30, AMP Part #: 4013561 Required per assembly: 3 Currently Not Available
19	HARNESS, CONTACTOR Part #: 2411857 Required per assembly: 1 Currently Not Available
20	COVER-FUSEHOLDER Part #: 4012260 Required per assembly: 2 Currently Not Available
21	HARNESS, GAUGE Part #: 2411447 Required per assembly: 1 Currently Not Available
22	CLIP Part #: 7670134 Required per assembly: 1 Note: Clip, Wire Currently Not Available
23	FUSE, 25, AMP Part #: 4011653 Required per assembly: 2 Currently Not Available
24	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
25	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
26	FUSE-2AMP ATM BLADE STYLE MINI Part #: 4010752 Required per assembly: 5 Currently Not Available
27	COVER-RELAY/FUSE CENTER Part #: 5438758 Required per assembly: 1 Currently Not Available
28	NUT, NYLOK Part #: 7546601 Required per assembly: 3 Note: Nut, Nylok Sold in multiples of 10 only Currently Not Available
29	DIODE, 6, AMP Part #: 2411035 Required per assembly: 3 Currently Not Available
30	BOOT, RELAY, 48V Part #: 4013618 Required per assembly: 1 Currently Not Available
31	RELAY, 48V Part #: 2879488 Required per assembly: 1 Currently Not Available
