2013 Polaris RANGER 500 CREW MIDSIZE - R13WH50AG/AH/AR/AX - Seat - R13wh50ag/Ah/Ar/Ax

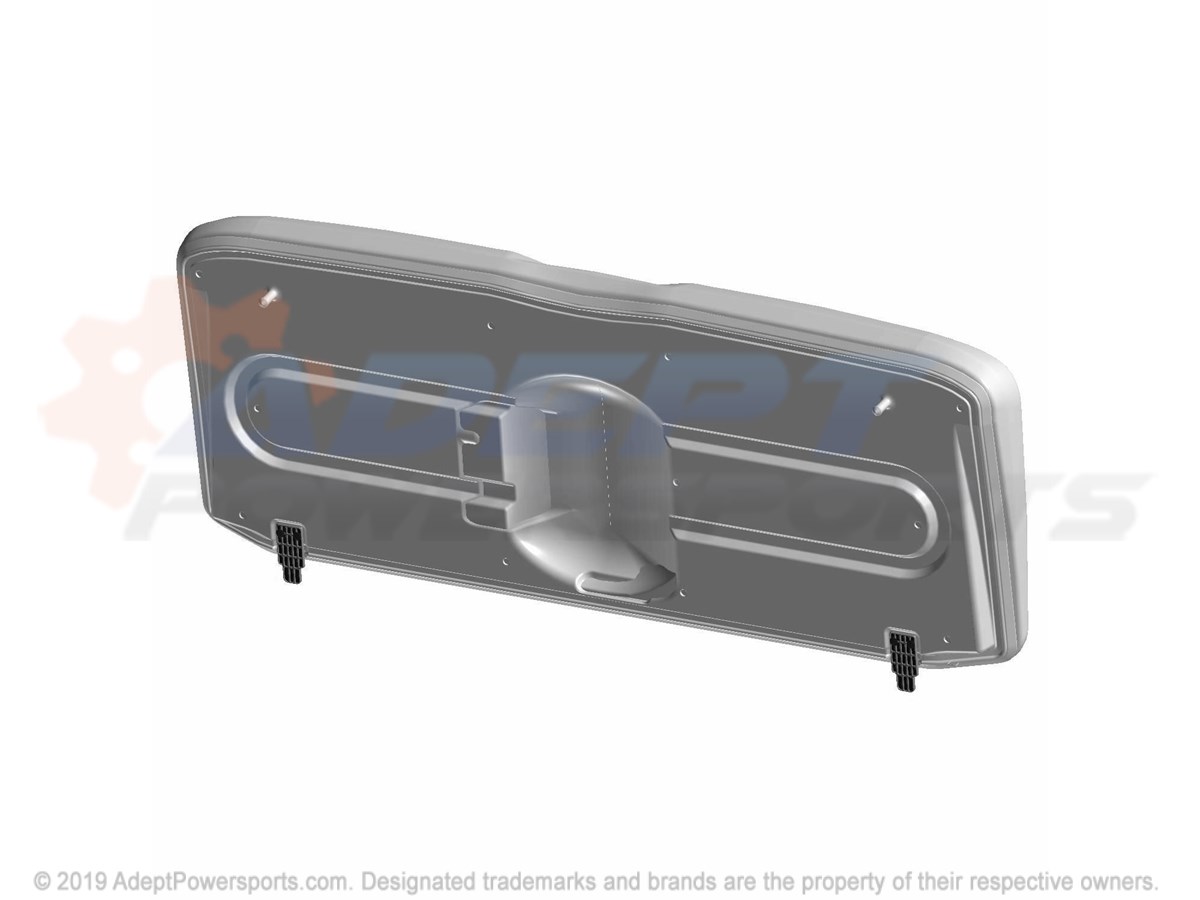

Seat - R13WH50AG/AH/AR/AX Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7518158 Screw

SCREW

Part #: 7518158 Required per assembly: 16
Currently Not Available
2
Polaris 2684887-070 Asm-Seat Rngr Back Blk

ASM-SEAT RNGR BACK BLK

Part #: 2684887-070 Required per assembly: 2 Note: AG
Currently Not Available
2

ASSEMBLY, SEAT, BACK, BLACK/SILVER, METALLIC

Part #: 2685172 Required per assembly: 2 Note: AX
Currently Not Available
3
Polaris 2685621 Assembly, Seat, Bottom, Black/Silver, Metallic, [Ax]

ASSEMBLY, SEAT, BOTTOM, BLACK/SILVER, METALLIC, [AX]

Part #: 2685621 Required per assembly: 2 Note: Incl. 10,11
Currently Not Available
3
Polaris 2684886-070 Asm-Seat Rngr Btm Blk

ASM-SEAT RNGR BTM BLK

Part #: 2684886-070 Required per assembly: 2 Note: Incl. 10,11
Currently Not Available
4
Polaris 5438766 Cover-Seat Middle Lower

COVER-SEAT MIDDLE LOWER

Part #: 5438766 Required per assembly: 1
Currently Not Available
5

WELD-CAB/SEAT BASE M BLK

Part #: 1017631-458 Required per assembly: 1
Currently Not Available
6
Polaris 5412507 Grommet

GROMMET

Part #: 5412507 Required per assembly: 4
Currently Not Available
7

ASSEMBLY, SEAT, BELT, 3, POINT

Part #: 2634887 Required per assembly: 4 Note: Incl. 13-16
Currently Not Available
8

BOLT

Part #: 7512520 Required per assembly: 4
Currently Not Available
9

NUT, NYLOCK

Part #: 7542525 Required per assembly: 12 Note: Nut, Nylok
Currently Not Available
10
Polaris 5437903 Tab, Seat, Mount

TAB, SEAT, MOUNT

Part #: 5437903 Required per assembly: 4
Currently Not Available
11
Polaris 7621479 Rivet

RIVET

Part #: 7621479 Required per assembly: 8 Note: Rivet
Sold in multiples of 50 only
Currently Not Available
12
Polaris 7556333 Washer, Flat

WASHER, FLAT

Part #: 7556333 Required per assembly: 4
Currently Not Available
14
Polaris 7547066 Nut-7/16-20, Nylok, Y

NUT-7/16-20, NYLOK, Y

Part #: 7547066 Required per assembly: 12 Note: Nut, Nylon
$3.99
$2.30
-
+
Add to cart
17
Polaris 5437909-070 Cover-Seat Back Blk

COVER-SEAT BACK BLK

Part #: 5437909-070 Required per assembly: 2
Currently Not Available
18
Polaris 1017817-458 Weld-Cab/Seat Base M Blk

WELD-CAB/SEAT BASE M BLK

Part #: 1017817-458 Required per assembly: 1
Currently Not Available
19
Polaris 5813829 Washer-Seatbelt Rubber

WASHER-SEATBELT RUBBER

Part #: 5813829 Required per assembly: 4
Currently Not Available
