OEM Parts Polaris 2013 Polaris RANGER RZR 800 EFI R13VH76AC/AD/AN/AS/EAI Rear Shock Mounting - R13vh76ac/Ad/An/As/Eai

2013 Polaris RANGER RZR 800 EFI - R13VH76AC/AD/AN/AS/EAI - Rear Shock Mounting - R13vh76ac/Ad/An/As/Eai

Rear Shock Mounting - R13VH76AC/AD/AN/AS/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7547313 Nut, Flange

NUT, FLANGE

Part #: 7547313 Required per assembly: 4
$2.79
$1.73
-
+
Add to cart
2
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
3
Polaris 7518474 Screw, Flange

SCREW, FLANGE

Part #: 7518474 Required per assembly: 4 Note: Bolt
$5.99
$2.30
-
+
Add to cart
4

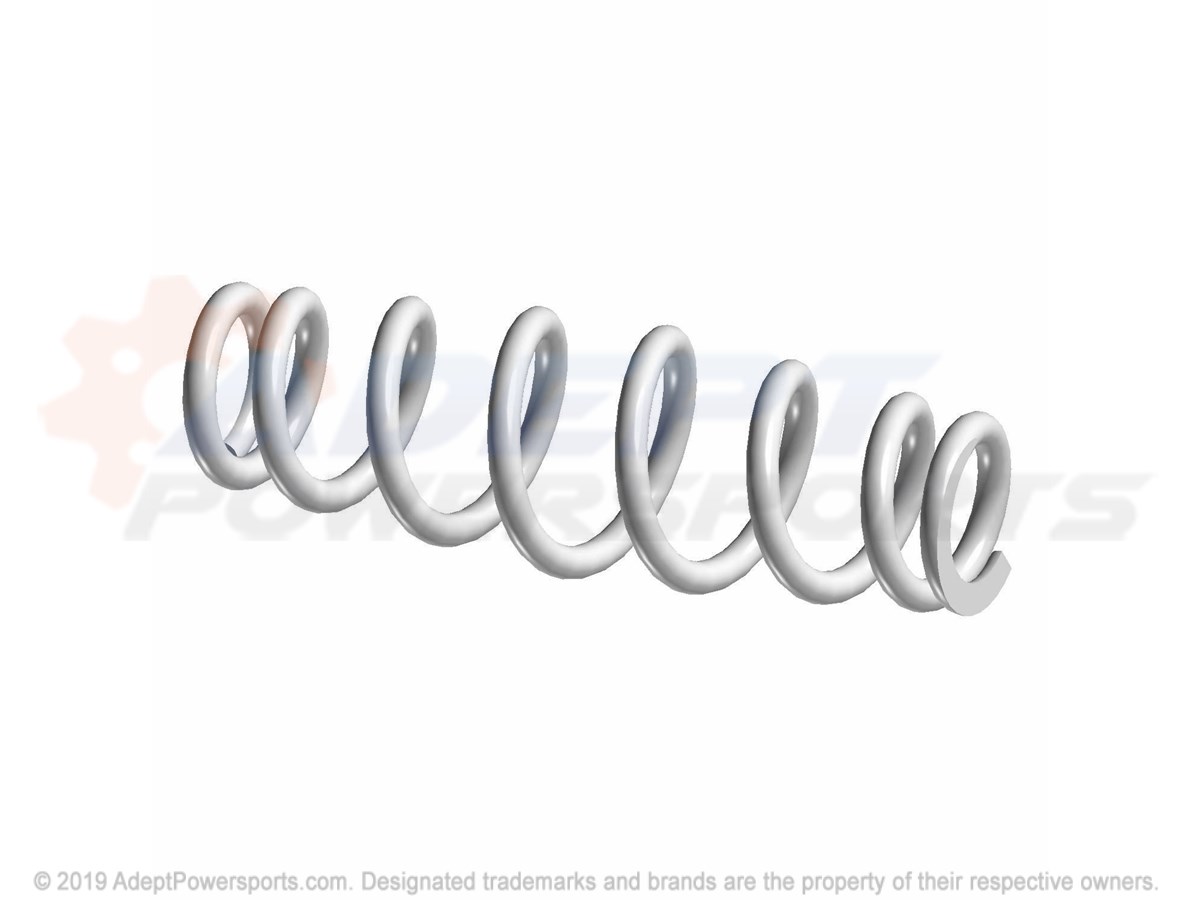

Polaris 7043977-133 Spring, 235-340, White, [As]

SPRING, 235-340, WHITE, [AS]

Part #: 7043977-133 Required per assembly: 2 Note: AN
Currently Not Available
4
Polaris 7043977-385 Spring, 235-340, Cloud, Silver

SPRING, 235-340, CLOUD, SILVER

Part #: 7043977-385 Required per assembly: 2 Note: EAI
Currently Not Available
4
Polaris 7043977-458 Spring, 235-340, Matte, Black, [Ac]

SPRING, 235-340, MATTE, BLACK, [AC]

Part #: 7043977-458 Required per assembly: 2 Note: AD
Currently Not Available
5
Polaris 5253768 Cam-Adjusting Spring Steel

CAM-ADJUSTING SPRING STEEL

Part #: 5253768 Required per assembly: 2
Currently Not Available
6

SHOCK-REAR 475.7MM EXT

Part #: 7043762 Required per assembly: 2
Currently Not Available
