OEM Parts Polaris 2013 Polaris Sportsman 850 MV M13YN8EAA/EAD/EAI Rear - M13yn8eaa/Ead/Eai

2013 Polaris Sportsman 850 MV - M13YN8EAA/EAD/EAI - Rear - M13yn8eaa/Ead/Eai

Rear - M13YN8EAA/EAD/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7518467 Screw, Flange

SCREW, FLANGE

Part #: 7518467 Required per assembly: 2
Currently Not Available
2
Polaris 7547313 Nut, Flange

NUT, FLANGE

Part #: 7547313 Required per assembly: 10
$2.79
$1.73
-
+
Add to cart
3
Polaris 5436798 Bushing, Control, Arm

BUSHING, CONTROL, ARM

Part #: 5436798 Required per assembly: 8
Currently Not Available
4
Polaris 1025620-067 Weld-Uca, Rear, Rh, Blk

WELD-UCA, REAR, RH, BLK

Part #: 1025620-067 Required per assembly: 1
Currently Not Available
4
Polaris 1025619-067 Weld-Uca, Rear, Lh, Blk

WELD-UCA, REAR, LH, BLK

Part #: 1025619-067 Required per assembly: 1
Currently Not Available
5

ZERK, FITTING, THREADED

Part #: 7080433 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
6
Polaris 5137346 Shaft-A-Arm 63.5Mm

SHAFT-A-ARM 63.5MM

Part #: 5137346 Required per assembly: 4
Currently Not Available
7
Polaris 7519016 Screw

SCREW

Part #: 7519016 Required per assembly: 4
Currently Not Available
8

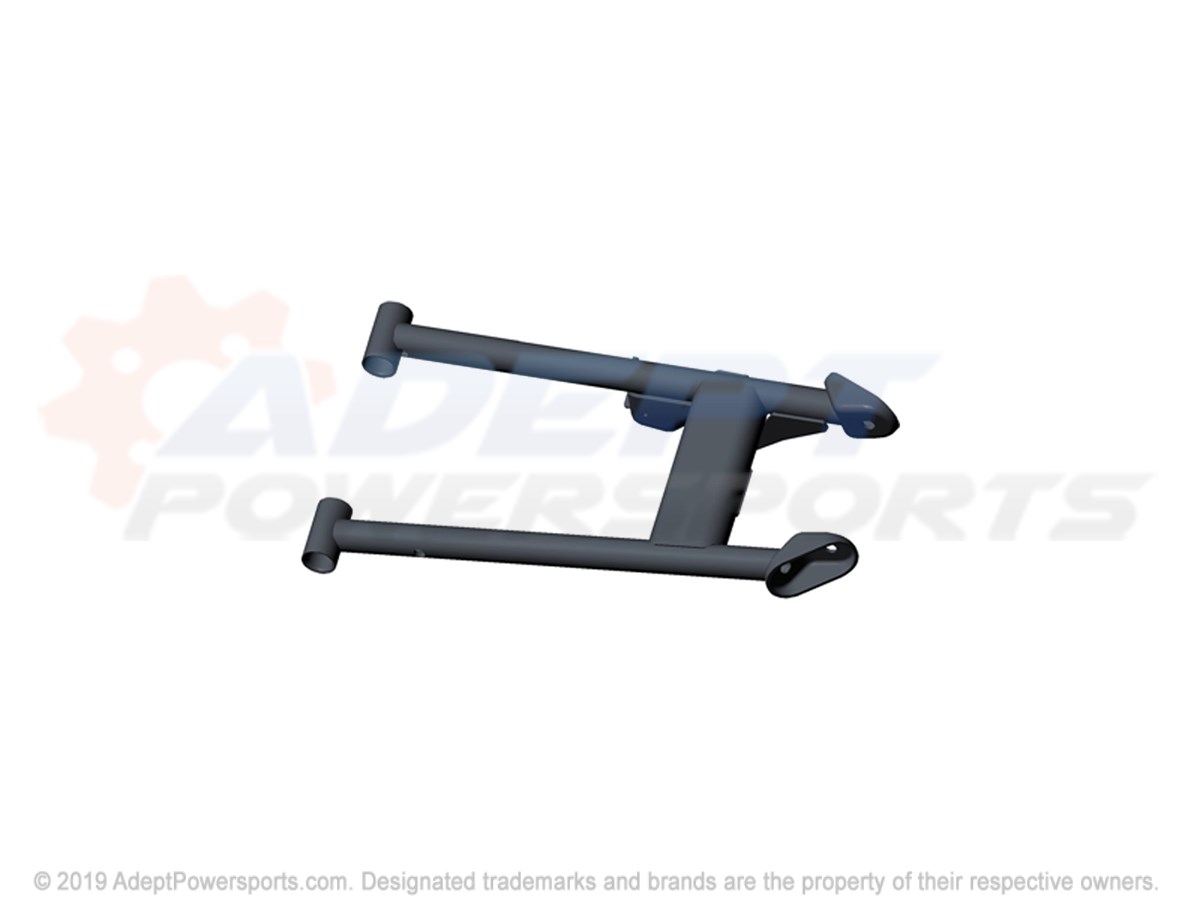

Polaris 1018846-458 Arm, Control, Lower, Rear, Lh, Black

ARM, CONTROL, LOWER, REAR, LH, BLACK

Part #: 1018846-458 Required per assembly: 1
Currently Not Available
8

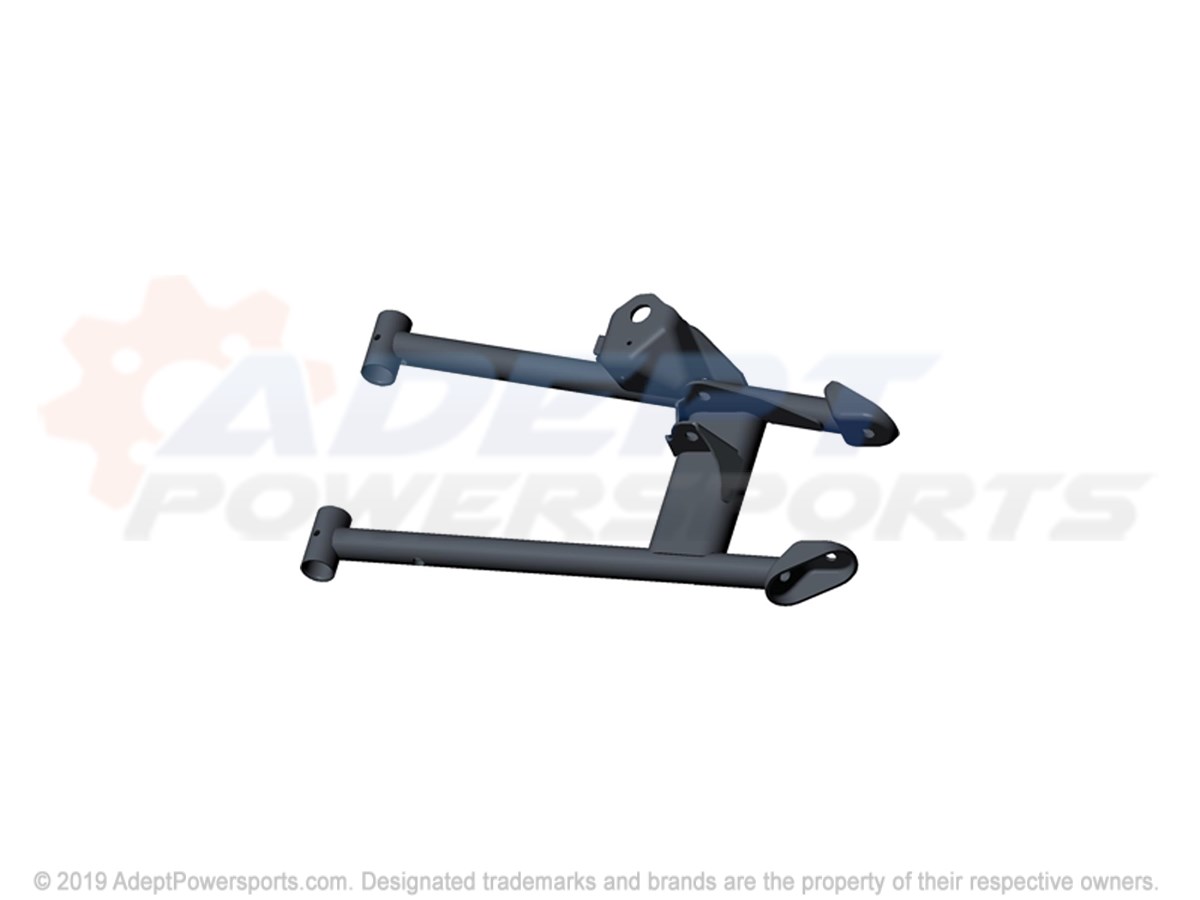

Polaris 1018847-458 Arm, Control, Lower, Rear, Rh, Black

ARM, CONTROL, LOWER, REAR, RH, BLACK

Part #: 1018847-458 Required per assembly: 1
Currently Not Available
9
Polaris 7518675 Bolt, Flange

BOLT, FLANGE

Part #: 7518675 Required per assembly: 2
Currently Not Available
10
Polaris 5137590 Shaft-Pivot 104.9Mm Zinc Yel

SHAFT-PIVOT 104.9MM ZINC YEL

Part #: 5137590 Required per assembly: 2
Currently Not Available
11

SHAFT-A-ARM, LCA, 0.75", OD

Part #: 5145086 Required per assembly: 2
Currently Not Available
12
Polaris 5437651 Bushing, Lower, Control, Arm

BUSHING, LOWER, CONTROL, ARM

Part #: 5437651 Required per assembly: 4
Currently Not Available
13
Polaris 5137594 Shaft-Pivot 210.27Mm Zinc Yel

SHAFT-PIVOT 210.27MM ZINC YEL

Part #: 5137594 Required per assembly: 2
Currently Not Available
14
Polaris 5436973 Bushing, A-Arm, Long, Grey

BUSHING, A-ARM, LONG, GREY

Part #: 5436973 Required per assembly: 4 Note: Bushing, A-Arm, Long
$10.99
$6.33
-
+
Add to cart
15
Polaris 7519198 Screw

SCREW

Part #: 7519198 Required per assembly: 2
Currently Not Available
16
Polaris 5439874 Bushing

BUSHING

Part #: 5439874 Required per assembly: 4
Currently Not Available
17
Polaris 7080510 Fitting, Zerk, (90, Degree)

FITTING, ZERK, (90, DEGREE)

Part #: 7080510 Required per assembly: 4 Note: FITTING, ZERK (90o)
Currently Not Available
18

BRACE, LOWER, CONTROL, ARM, FRONT, BLACK

Part #: 5257067-067 Required per assembly: 1
Currently Not Available
19

BRACE, LOWER, CONTROL, ARM, REAR, BLACK

Part #: 5257068-067 Required per assembly: 1
Currently Not Available
