Frame replacement parts for 2013 Suzuki RM-Z450

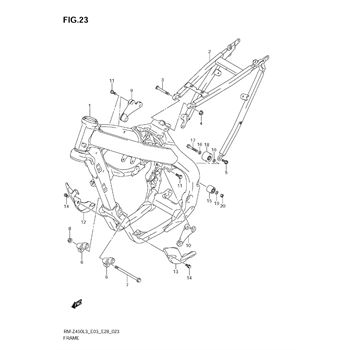

OEM Parts Suzuki 2013 Suzuki RM Z450 Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME Part #: 41100-28H30 Required per assembly: 1 $3,958.76 - + Add to cart
2	RAIL, COMP, SEAT Part #: 41200-28H40 Required per assembly: 1 Not Available
3	BOLT, SEAT, RAIL Part #: 41311-28H20 Required per assembly: 1 $20.65 $18.59 - + Add to cart
4	NUT Part #: 09159-08146 Required per assembly: 1 $7.81 $7.03 - + Add to cart
5	BOLT, 8X23 Part #: 09103-08506 Required per assembly: 2 $6.08 $5.47 - + Add to cart
6	BRACKET, ENG, MTG Part #: 41991-28H10 Required per assembly: 2 $75.77 $68.19 - + Add to cart
7	BOLT (10X135) Part #: 09103-10403 Required per assembly: 2 Note: MODEL K6/K7 $16.63 $14.97 - + Add to cart
8	NUT Part #: 09159-10122 Required per assembly: 2 $8.25 $7.43 - + Add to cart
9	BRACKET, COMP, EN Part #: 41930-28H20 Required per assembly: 1 Not Available
10	BRACKET, COMP, EN Part #: 41940-28H20 Required per assembly: 1 Not Available
11	BOLT Part #: 09103-08404 Required per assembly: 4 $3.91 $3.52 - + Add to cart
12	PROTECTOR, FRONT Part #: 42520-28H01 Required per assembly: 1 $28.87 $25.98 - + Add to cart
13	PROTECTOR, FRONT Part #: 42530-28H10 Required per assembly: 1 $36.12 $32.51 - + Add to cart
14	BOLT Part #: 09116-06177 Required per assembly: 3 Note: BOLT, CHAIN GUIDE; $2.95 $2.66 - + Add to cart
15	ROLLER, CHAIN, CONTROL, LOWER Part #: 43910-35G00 Required per assembly: 1 $70.41 $63.37 - + Add to cart
16	WASHER Part #: 09181-08167 Required per assembly: 2 Note: WASHER (8X16X1.0); $2.39 $2.15 - + Add to cart
17	BOLT Part #: 09103-08207 Required per assembly: 1 $3.03 $2.73 - + Add to cart
18	ROLLER, CHAIN, CONTROL Part #: 43910-27C11 Required per assembly: 1 Note: ROLLER, CHAIN CONTROL LOWER; $69.85 $59.72 - + Add to cart
19	WASHER (8X12X1) Part #: 09181-08111 Required per assembly: 1 Note: WASHER; $2.43 $2.19 - + Add to cart
20	NUT Part #: 08319-2108A Required per assembly: 1 Note: NUT, T/F SHIFT LEVER; $2.67 $2.40 - + Add to cart
