Fairing, Lower - V13DW36/TW/KWZW All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

FAIRING-VENT, LH

Part #: 5438931 Required per assembly: 1
Currently Not Available
1

FAIRING, VENT, RH

Part #: 5438932 Required per assembly: 1
Currently Not Available
2
Victory 7081717 Hinge-Friction Large

HINGE-FRICTION LARGE

Part #: 7081717 Required per assembly: 2
Currently Not Available
3

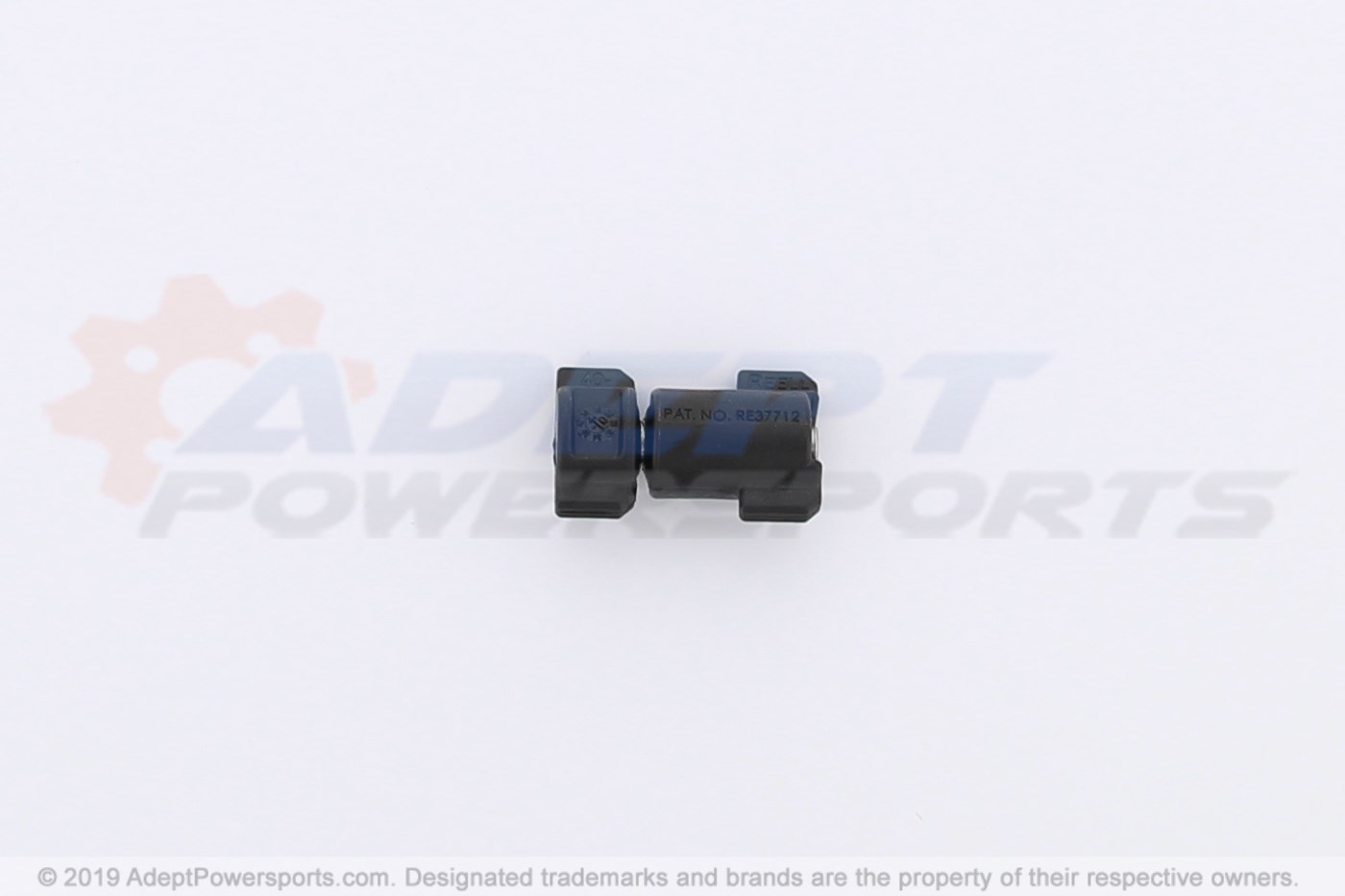

Polaris 5437772 Grommet-4Mm

GROMMET-4MM

Part #: 5437772 Required per assembly: 2
Currently Not Available
4
Polaris 7081715 Latch-Storage Compartment

LATCH-STORAGE COMPARTMENT

Part #: 7081715 Required per assembly: 2
Currently Not Available
5
Polaris 7518641 Scr-Wshrpnhd, 10-16, Hilo

SCR-WSHRPNHD, 10-16, HILO

Part #: 7518641 Required per assembly: 4
$6.99
$4.03
-
+
Add to cart
6

SEAL-COMPARTMENT

Part #: 5813719 Required per assembly: 2
Currently Not Available
7

FAIRING-OUTER, RH, BLK

Part #: 5438928-266 Required per assembly: 1
Currently Not Available
7

FAIRING-OUTER, LH, BLK

Part #: 5438927-266 Required per assembly: 1
Currently Not Available
7

FAIRING, OUTER, LH

Part #: 5438927-631 Required per assembly: 1
Currently Not Available
7

FAIRING, OUTER, LH

Part #: 5438927-451 Required per assembly: 1
Currently Not Available
7

FAIRING, OUTER, RH

Part #: 5438928-451 Required per assembly: 1
Currently Not Available
7

FAIRING, OUTER, RH

Part #: 5438928-631 Required per assembly: 1
Currently Not Available
7

FAIRING, OUTER, LH

Part #: 5438927-1256 Required per assembly: 1
Currently Not Available
7

FAIRING, OUTER, RH

Part #: 5438928-1256 Required per assembly: 1
Currently Not Available
8

NUT-CLIP, U, SPEED, M4.2

Part #: 7547386 Required per assembly: 8
Currently Not Available
9

SCREW, M4, TXBH

Part #: 7518518 Required per assembly: 8
Currently Not Available
10

CLAMP-HOSE

Part #: 7080807 Required per assembly: 6
Currently Not Available
11
Polaris 7547339 Nut, Flange

NUT, FLANGE

Part #: 7547339 Required per assembly: 6
Currently Not Available
12

SCR-M6X1.0, 15, HEX, BUTT, SHLD

Part #: 7518484 Required per assembly: 6
Currently Not Available
13

FAIRING-INNER, RH

Part #: 5438930 Required per assembly: 1
Currently Not Available
13

FAIRING-INNER, LH

Part #: 5438929 Required per assembly: 1
Currently Not Available
14

PIN-CLEVIS, M6X15, E-CLIP

Part #: 7661873 Required per assembly: 2
Currently Not Available
14

E-CLIP-M5, SS, 0600101

Part #: 7710568 Required per assembly: 2
Currently Not Available
15

SEAL, LH

Part #: 5813764 Required per assembly: 1
Currently Not Available
15

SEAL, RH

Part #: 5813765 Required per assembly: 1
Currently Not Available
16

DOOR-FAIRING, ACCESS, LH

Part #: 5438933 Required per assembly: 1
Currently Not Available
16

DOOR-FAIRING, ACCESS, RH

Part #: 5438934 Required per assembly: 1
Currently Not Available
