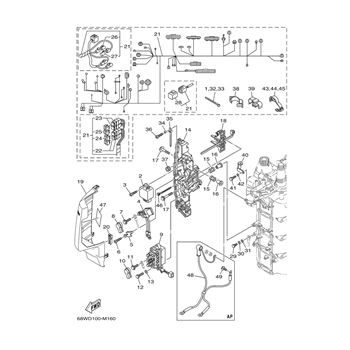

Electrical 2 replacement parts for 2013 Yamaha LF115XA

OEM Parts Yamaha 2013 Yamaha LF115XA Electrical 2

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLAMP Part #: 90465-13M39-00 Required per assembly: 1 $5.40 $4.71 - + Add to cart
2	RELAY ASSEMBLY Part #: 60E-81950-00-00 Required per assembly: 1 $219.53 $199.57 - + Add to cart
3	SCREW, TAPPING, (65J) Part #: 97780-60625-00 Required per assembly: 1 $3.14 $2.78 - + Add to cart
4	RELAY Part #: 68V-8194A-00-00 Required per assembly: 1 $130.84 $122.77 - + Add to cart
5	STAY, RELAY Part #: 68F-81953-00-00 Required per assembly: 1 $15.50 $14.59 - + Add to cart
6	SCREW, TAPPING Part #: 97780-60520-00 Required per assembly: 1 $5.12 $4.66 - + Add to cart
7	BOLT, HEXAGON, W/W, DEEP, RECESS Part #: 97E95-06610-00 Required per assembly: 2 $1.00 $0.98 - + Add to cart
8	CAP, TERMINAL Part #: 6P2-8183X-00-00 Required per assembly: 2 $6.70 $6.27 - + Add to cart
9	RELAY ASSEMBLY Part #: 63P-81950-00-00 Required per assembly: 1 $479.69 $435.15 - + Add to cart
10	CAP, TERMINAL Part #: 6P2-8183X-00-00 Required per assembly: 2 $6.70 $6.27 - + Add to cart
11	BOLT, HEXAGON, W/W, DEEP, RECESS Part #: 97E95-06610-00 Required per assembly: 2 $1.00 $0.98 - + Add to cart
12	BOLT(7U8) Part #: 97080-06020-00 Required per assembly: 2 $4.45 $3.82 - + Add to cart
13	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 2 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
14	BRACKET Part #: 68V-81948-03-00 Required per assembly: 1 $64.75 $60.69 - + Add to cart
15	DAMPER, IGN, COIL Part #: 6A0-82317-00-00 Required per assembly: 5 $7.48 $6.80 - + Add to cart
16	COLLAR Part #: 90387-06119-00 Required per assembly: 5 $4.79 $4.60 - + Add to cart
17	BOLT, WITH, WASHER Part #: 90119-06289-00 Required per assembly: 5 $3.64 $3.40 - + Add to cart
18	CLAMP Part #: 68V-82594-00-00 Required per assembly: 1 $14.90 $13.99 - + Add to cart
19	COVER Part #: 68V-81942-11-00 Required per assembly: 1 $57.18 - + Add to cart
20	PULLER, FUSE Part #: 67F-2812A-00-00 Required per assembly: 1 $5.54 $5.35 - + Add to cart
22	CAP (YELLOW) Part #: 67F-8215B-10-00 Required per assembly: 2 Note: (YELLOW) $14.75 $13.90 - + Add to cart
23	CAP (GREEN) Part #: 67F-8215B-20-00 Required per assembly: 2 Note: (GREEN) $14.75 $13.90 - + Add to cart
24	FUSE (20A-BL) Part #: 5JJ-82151-20-00 Required per assembly: 4 $8.49 $6.29 - + Add to cart
25	FUSE (30A-BL) Part #: 5JJ-82151-60-00 Required per assembly: 4 $8.49 $6.29 - + Add to cart
28	CAP 1 (4PIN) Part #: 6Y8-82582-11-00 Required per assembly: 1 Note: (4PIN) UR $7.00 $5.90 - + Add to cart
29	BOLT, HEXAGON, DEEP, RECESS Part #: 97D95-06016-00 Required per assembly: 1 $2.75 $1.87 - + Add to cart
30	WASHER, SPRING Part #: 92995-06100-00 Required per assembly: 1 Note: Sold in multiples of 5 only $3.45 $3.24 - + Add to cart
31	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 1 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
32	CLAMP Part #: 90465-13M39-00 Required per assembly: 1 $5.40 $4.71 - + Add to cart
33	CLAMP Part #: 90465-13M39-00 Required per assembly: 1 $5.40 $4.71 - + Add to cart
34	COLLAR Part #: 90387-06M05-00 Required per assembly: 1 $8.69 $8.24 - + Add to cart
35	CLAMP (62E) Part #: 90465-12M53-00 Required per assembly: 1 $6.27 $5.70 - + Add to cart
36	SCREW, TAPPING, (65J) Part #: 97780-60625-00 Required per assembly: 1 $3.14 $2.78 - + Add to cart
37	DAMPER, IGN, COIL Part #: 6A0-82317-00-00 Required per assembly: 1 $7.48 $6.80 - + Add to cart
38	CLAMP Part #: 90464-18004-00 Required per assembly: 1 $4.40 $4.16 - + Add to cart
39	CLAMP Part #: 90464-12010-00 Required per assembly: 1 $5.34 $5.07 - + Add to cart
40	STAY, CORD, CLAMP Part #: 6D8-82581-01-00 Required per assembly: 1 $8.84 $8.32 - + Add to cart
41	BOLT, HEXAGON, DEEP, RECESS Part #: 97D95-06014-00 Required per assembly: 1 $1.75 $1.59 - + Add to cart
42	WASHER, PLATE Part #: 92990-06600-00 Required per assembly: 1 Note: Sold in multiples of 5 only $2.85 $2.80 - + Add to cart
43	CLAMP Part #: 90464-28003-00 Required per assembly: 2 $4.45 $2.59 - + Add to cart
44	CLAMP Part #: 90464-28003-00 Required per assembly: 1 $4.45 $2.59 - + Add to cart
45	CLAMP Part #: 90464-28003-00 Required per assembly: 1 $4.45 $2.59 - + Add to cart
46	CLAMP Part #: 90465-13M11-00 Required per assembly: 2 $8.49 $5.62 - + Add to cart
47	GRAPHIC, REGULATOR Part #: 68V-81919-10-00 Required per assembly: 1 $4.90 $4.69 - + Add to cart
48	BATTERY CABLE Part #: 68V-82105-J2-00 Required per assembly: 1 $190.27 $172.97 - + Add to cart
49	BOLT, WASHER, BASED Part #: 90105-06M14-00 Required per assembly: 1 $1.49 $1.19 - + Add to cart
