Drive Shaft replacement parts for 2013 Yamaha Grizzly 450 EPS 4WD Hunter

OEM Parts Yamaha 2013 Yamaha Grizzly 450 EPS 4WD Hunter Drive Shaft

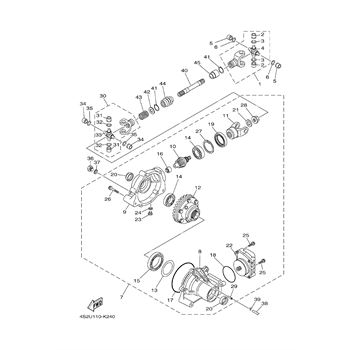

DRIVE SHAFT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CROSS JOINT COMP. 3 Part #: 1D9-46108-01-00 Required per assembly: 1 $291.99 $254.11 - + Add to cart
2	BEARING Part #: 93399-99948-00 Required per assembly: 2 $60.99 $47.95 - + Add to cart
3	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
4	SPIDER Part #: 5GT-46187-00-00 Required per assembly: 1 $117.98 $98.05 - + Add to cart
5	BEARING Part #: 93399-99948-00 Required per assembly: 2 $60.99 $47.95 - + Add to cart
6	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
7	REAR AXLE GEAR CASE ASSEMBLY Part #: 1CT-G6101-11-00 Required per assembly: 1 $910.40 $842.64 - + Add to cart
8	HOUSING, DRIVE, SHA Part #: 1CT-G6151-01-00 Required per assembly: 1 $222.99 $208.52 - + Add to cart
9	COVER Part #: 1CT-G2134-01-00 Required per assembly: 1 $197.99 $148.02 - + Add to cart
10	HOUSING, BEARING Part #: 1CT-G6152-01-00 Required per assembly: 1 $94.98 $86.06 - + Add to cart
11	GASKET, COVER Part #: 1CT-G631E-00-00 Required per assembly: 1 $22.98 $20.02 - + Add to cart
12	GSKT., CASE Part #: 1CT-G631A-00-00 Required per assembly: 1 $18.98 $17.21 - + Add to cart
13	STOPPER, RING, GEAR Part #: 1CT-G6156-00-00 Required per assembly: 1 Not Available
14	BREATHER Part #: 1CT-E5371-00-00 Required per assembly: 1 $13.99 $12.97 - + Add to cart
15	OIL SEAL Part #: 1CT-E511A-10-00 Required per assembly: 2 $43.99 $34.50 - + Add to cart
16	GASKET Part #: 1CT-E1195-00-00 Required per assembly: 2 $6.99 $5.26 - + Add to cart
17	PIN, DOWEL, 1 Part #: 1CT-E3362-00-00 Required per assembly: 4 $3.95 $3.61 - + Add to cart
18	GASKET Part #: 1CT-G6819-00-00 Required per assembly: 1 $4.95 $3.81 - + Add to cart
19	BOLT Part #: 1CT-E2157-00-00 Required per assembly: 15 $4.65 $3.87 - + Add to cart
20	BOLT Part #: 1CT-E2228-00-00 Required per assembly: 2 $3.85 $2.74 - + Add to cart
21	NUT, ADJUSTING Part #: 1CT-E3275-00-00 Required per assembly: 1 $2.99 $2.96 - + Add to cart
22	COUPLING Part #: 1CT-G6126-00-00 Required per assembly: 1 $55.99 $48.28 - + Add to cart
23	NUT Part #: 1CT-G4583-00-00 Required per assembly: 1 $100.98 $82.34 - + Add to cart
24	YOKE, JOINT Part #: 1CT-G6186-00-00 Required per assembly: 1 $191.99 $157.58 - + Add to cart
25	WASHER 1 Part #: 1CT-E1557-00-00 Required per assembly: 1 $23.98 $21.20 - + Add to cart
26	NUT, LOCK Part #: 1CT-E6377-00-00 Required per assembly: 1 $5.49 $4.02 - + Add to cart
27	OIL SEAL Part #: 1CT-E511B-10-00 Required per assembly: 1 $36.99 $33.10 - + Add to cart
28	SHIM, PINION Part #: 1CT-E7531-00-00 Required per assembly: 1 $8.99 $8.07 - + Add to cart
29	BEARING 1 Part #: 1CT-E1428-00-00 Required per assembly: 1 $125.98 $102.06 - + Add to cart
30	BEARING 2 Part #: 1CT-E1429-00-00 Required per assembly: 1 $76.98 $61.93 - + Add to cart
31	OIL, RING, PISTON Part #: 1CT-E1614-00-00 Required per assembly: 1 $14.49 $9.80 - + Add to cart
32	SHIM Part #: 1CT-G5567-00-00 Required per assembly: 1 $16.48 $13.49 - + Add to cart
33	SHIM Part #: 1CT-G5577-00-00 Required per assembly: 1 $16.48 $12.70 - + Add to cart
34	BEARING Part #: 1CT-E142A-00-00 Required per assembly: 1 $64.98 $48.02 - + Add to cart
35	BEARING 4 Part #: 1CT-E142B-00-00 Required per assembly: 1 $102.98 $83.42 - + Add to cart
36	RING GEAR SET Part #: 1CT-G61A0-01-00 Required per assembly: 1 $1,093.82 $1,009.38 - + Add to cart
37	INSERT, PLATE Part #: 1CT-F5345-00-00 Required per assembly: 4 $72.98 $63.23 - + Add to cart
38	PLATE 1 Part #: 1CT-F539F-00-00 Required per assembly: 5 $28.98 $21.58 - + Add to cart
39	PLATE, GUIDE Part #: 1CT-F5689-00-00 Required per assembly: 1 $139.99 $116.61 - + Add to cart
40	SPRING, RETURN Part #: 1CT-G6277-00-00 Required per assembly: 2 $4.90 $4.34 - + Add to cart
41	SPRING Part #: 1CT-F476L-00-00 Required per assembly: 1 $13.49 $11.69 - + Add to cart
42	BOLT, LOCK, PLATE Part #: 1CT-G2478-10-00 Required per assembly: 4 Not Available
43	CAMSHAFT Part #: 1CT-F5351-00-00 Required per assembly: 1 Not Available
44	WASHER Part #: 1CT-E2289-10-00 Required per assembly: 1 Not Available
45	LEVER, CAMSHAFT Part #: 1CT-F5355-00-00 Required per assembly: 1 Not Available
46	END, CABLE, 3 Part #: 1CT-F6374-00-00 Required per assembly: 2 Not Available
47	WASHER 2 Part #: 1CT-G1298-00-00 Required per assembly: 1 $7.99 $6.55 - + Add to cart
48	RING, SEAL Part #: 1CT-E4005-10-00 Required per assembly: 1 Not Available
49	WASHER, 1 Part #: 1CT-G1297-00-00 Required per assembly: 4 $5.49 $3.61 - + Add to cart
50	WASHER 2 Part #: 1CT-E1558-00-00 Required per assembly: 2 Not Available
51	GUIDE 1 Part #: 1CT-E469U-00-00 Required per assembly: 2 Not Available
52	PIN, STRAIGHT Part #: 1CT-E319L-00-00 Required per assembly: 2 Not Available
53	BALL Part #: 1CT-E7051-00-00 Required per assembly: 6 $4.20 $3.46 - + Add to cart
54	BOLT 2 Part #: 1CT-E22A1-00-00 Required per assembly: 1 $2.99 $2.95 - + Add to cart
55	CLIP Part #: 1CT-E1486-00-00 Required per assembly: 1 Not Available
56	CLIP Part #: 1CT-G5319-00-00 Required per assembly: 2 $5.49 $3.99 - + Add to cart
57	SHIM Part #: 1CT-E3147-00-00 Required per assembly: 1 $2.99 $2.69 - + Add to cart
58	SPRING, TENSION Part #: 90506-14397-00 Required per assembly: 1 $5.99 $3.67 - + Add to cart
59	CROSS JOINT COMP. 2 Part #: 1CT-46107-00-00 Required per assembly: 1 $242.99 $217.06 - + Add to cart
60	BEARING Part #: 93399-99948-00 Required per assembly: 2 $60.99 $47.95 - + Add to cart
61	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
62	SPIDER Part #: 5GT-46187-00-00 Required per assembly: 1 $117.98 $98.05 - + Add to cart
63	BEARING Part #: 93399-99948-00 Required per assembly: 2 $60.99 $47.95 - + Add to cart
64	CIRCLIP, OUTER Part #: 93440-20088-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
65	SEAL 1 Part #: 5GT-46136-00-00 Required per assembly: 1 $18.98 $15.39 - + Add to cart
66	HOSE (L900) Part #: 90445-078C4-00 Required per assembly: 1 Not Available
67	CLIP, SCISSOR Part #: 90467-07029-00 Required per assembly: 1 $2.60 $1.89 - + Add to cart
68	BOLT, FLANGE Part #: 90105-10844-00 Required per assembly: 2 $4.15 $3.49 - + Add to cart
69	NUT, SELF-LOCKING Part #: 95602-10200-00 Required per assembly: 2 $2.70 $2.25 - + Add to cart
70	BOLT, FLANGE Part #: 95817-10045-00 Required per assembly: 1 $6.99 $4.45 - + Add to cart
