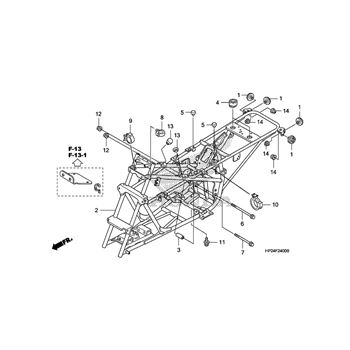

Frame replacement parts for 2014 Honda TRX90X

OEM Parts Honda 2014 Honda TRX90X Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

002	FRAME NH146M (ACCURATE SILVER METALLIC) Part #: 50100-HP2-670ZA Required per assembly: 1 $2,865.63 - + Add to cart
003	COLLAR Part #: 50151-HF7-000 Required per assembly: 1 $7.39 - + Add to cart
004	CUSHION Part #: 77207-HA0-000 Required per assembly: 2 $9.97 - + Add to cart
005	RUBBER B Part #: 77215-GC2-000 Required per assembly: 2 $7.28 - + Add to cart
006	BOLT, FLANGE, (8X140) Part #: 90002-MM9-000 Required per assembly: 1 $7.20 - + Add to cart
007	BOLT, FLANGE, (8X96) Part #: 90156-KK6-000 Required per assembly: 1 $12.94 - + Add to cart
008	CLAMP, HARNESS Part #: 90652-HC4-003 Required per assembly: 1 $9.15 - + Add to cart
009	CLIP, CABLE, (20MM) Part #: 90690-GHB-661 Required per assembly: 1 $2.99 - + Add to cart
010	CLIP, CABLE, (30MM) Part #: 90690-GHB-681 Required per assembly: 1 $4.32 - + Add to cart
011	BOLT-WASHER (8X20) Part #: 93404-08020-08 Required per assembly: 1 ~~$2.90~~ $2.56 - + Add to cart
011	BOLT-WASHER (8X20) Part #: 93404-08020-08 Required per assembly: 1 ~~$2.90~~ $2.56 - + Add to cart
012	NUT, FLANGE, (8MM) Part #: 94050-08000 Required per assembly: 2 Note: Sold in multiples of 5 only ~~$2.01~~ $1.41 - + Add to cart
013	RUBBER Part #: 17519-HP1-A00 Required per assembly: 2 $5.75 - + Add to cart
