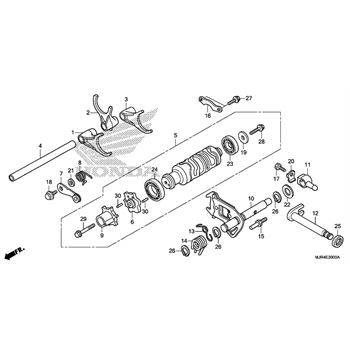

Shift Drum & Shift Fork replacement parts for 2014 Honda GL1800C

OEM Parts Honda 2014 Honda GL1800C Shift Drum & Shift Fork

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	FORK, FR., GEARSHIFT Part #: 24211-MCA-A00 Required per assembly: 1 $76.07 $61.58 - + Add to cart
002	FORK Part #: 24212-MJG-A00 Required per assembly: 1 $76.51 $61.93 - + Add to cart
003	SWINGARM, GEARSHIFT Part #: 24213-MCA-000 Required per assembly: 1 $78.06 $63.18 - + Add to cart
004	SHAFT, SHIFT, FORK Part #: 24251-MJG-A00 Required per assembly: 1 $28.03 $22.69 - + Add to cart
005	DRUM, GEARSHIFT Part #: 24300-MJG-A00 Required per assembly: 1 $212.91 $172.35 - + Add to cart
006	CAM, SHIFT, DRUM Part #: 24302-MCA-300 Required per assembly: 1 $46.89 $37.96 - + Add to cart
007	STOPPER Part #: 24430-MCA-000 Required per assembly: 1 $20.12 $16.28 - + Add to cart
008	SPRING Part #: 24435-MCA-000 Required per assembly: 1 $5.36 $4.87 - + Add to cart
009	JOINT Part #: 24443-MCA-300 Required per assembly: 1 $45.45 $36.80 - + Add to cart
010	ARM, GEARSHIFT Part #: 24610-MCA-000 Required per assembly: 1 $114.10 $95.13 - + Add to cart
011	ARM, B, GEARSHIFT Part #: 24615-MCA-000 Required per assembly: 1 $45.23 $36.61 - + Add to cart
012	SPINDLE, GEARSHIFT Part #: 24620-MCA-780 Required per assembly: 1 $60.05 $48.62 - + Add to cart
013	SPRING Part #: 24624-MT3-000 Required per assembly: 1 $5.09 $4.63 - + Add to cart
014	SPRING Part #: 24651-MCA-000 Required per assembly: 1 $10.52 $9.03 - + Add to cart
015	PIN Part #: 24652-028-000 Required per assembly: 1 $10.61 $9.10 - + Add to cart
016	PLATE Part #: 24655-MV4-000 Required per assembly: 1 $7.42 $6.50 - + Add to cart
017	BOLT, HEX., (8X17) Part #: 90009-MN5-000 Required per assembly: 1 $4.74 - + Add to cart
018	PIVOT Part #: 90022-MG8-000 Required per assembly: 1 $3.51 $3.19 - + Add to cart
019	WASHER (6.5X26X2.6) Part #: 90401-MZ0-000 Required per assembly: 1 $4.57 - + Add to cart
020	WASHER, LOCK, (8MM) Part #: 90406-422-000 Required per assembly: 1 $3.78 $3.44 - + Add to cart
021	WASHER, DRUM, STOPPER Part #: 90417-360-000 Required per assembly: 1 $2.73 $2.54 - + Add to cart
022	WASHER (14.2X28X2.3) Part #: 90487-MN5-000 Required per assembly: 1 $6.16 $5.49 - + Add to cart
023	BEARING (6904) Part #: 91007-MN5-003 Required per assembly: 1 $17.31 $14.01 - + Add to cart
024	BEARING (16005) Part #: 91008-374-003 Required per assembly: 1 $17.42 $14.51 - + Add to cart
025	OIL SEAL (14X28X7) Part #: 91202-965-003 Required per assembly: 1 $7.41 $6.74 - + Add to cart
026	CIRCLIP (14MM) Part #: 94510-14000 Required per assembly: 3 $2.06 $1.90 - + Add to cart
027	BOLT, FLANGE, (6X16) Part #: 95701-06016-00 Required per assembly: 2 Note: 95701-06016-08* $2.63 $2.44 - + Add to cart
028	BOLT, FLANGE, (6X22) Part #: 95701-06022-00 Required per assembly: 1 $2.79 $2.54 - + Add to cart
029	BOLT, FLANGE, (8X40) Part #: 95701-08040-00 Required per assembly: 1 $2.32 $2.15 - + Add to cart
030	ROLLER (4X14.8) Part #: 96220-40148 Required per assembly: 5 $1.60 $1.46 - + Add to cart
