OEM Parts Polaris 2014 Polaris Hawkeye 400 HO 2X4 HD Rear Drive Shaft - A14mb46th

2014 Polaris Hawkeye 400 HO 2X4 HD A14MB46TH - Rear Drive Shaft - A14mb46th

Rear Drive Shaft - A14MB46TH Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1332935 Asm-Drive Shaft Sptmn Rear

ASM-DRIVE SHAFT SPTMN REAR

Part #: 1332935 Required per assembly: 2 Note: INCL. 1-9
Currently Not Available
2
Polaris 2204460 Kit-Boot Inboard (85-9453)

KIT-BOOT INBOARD (85-9453)

Part #: 2204460 Required per assembly: 2 Note: INCL. BOOT, CLAMPS, GREASE, RING
Currently Not Available
3
Polaris 2204366 Joint-Plunging (3135571)

JOINT-PLUNGING (3135571)

Part #: 2204366 Required per assembly: 1 Note: INCL. RING
Currently Not Available
4

SPRING-RING (93-8396)

Part #: 7710666 Required per assembly: 1
Currently Not Available
5
Polaris 2204365 Cv-Joint(3135595)

CV-JOINT(3135595)

Part #: 2204365 Required per assembly: 1 Note: JOINT ONLY
Currently Not Available
8

SPRING-RING (93-8388)

Part #: 7710664 Required per assembly: 2
Currently Not Available
8

SPRING-RING (93-8388)

Part #: 7710664 Required per assembly: 2
Currently Not Available
9
Polaris 2204459 Kit-Boot Outboard (81-9452)

KIT-BOOT OUTBOARD (81-9452)

Part #: 2204459 Required per assembly: 1 Note: SPRING-RING P/N 7710664 sold separately
Currently Not Available
10

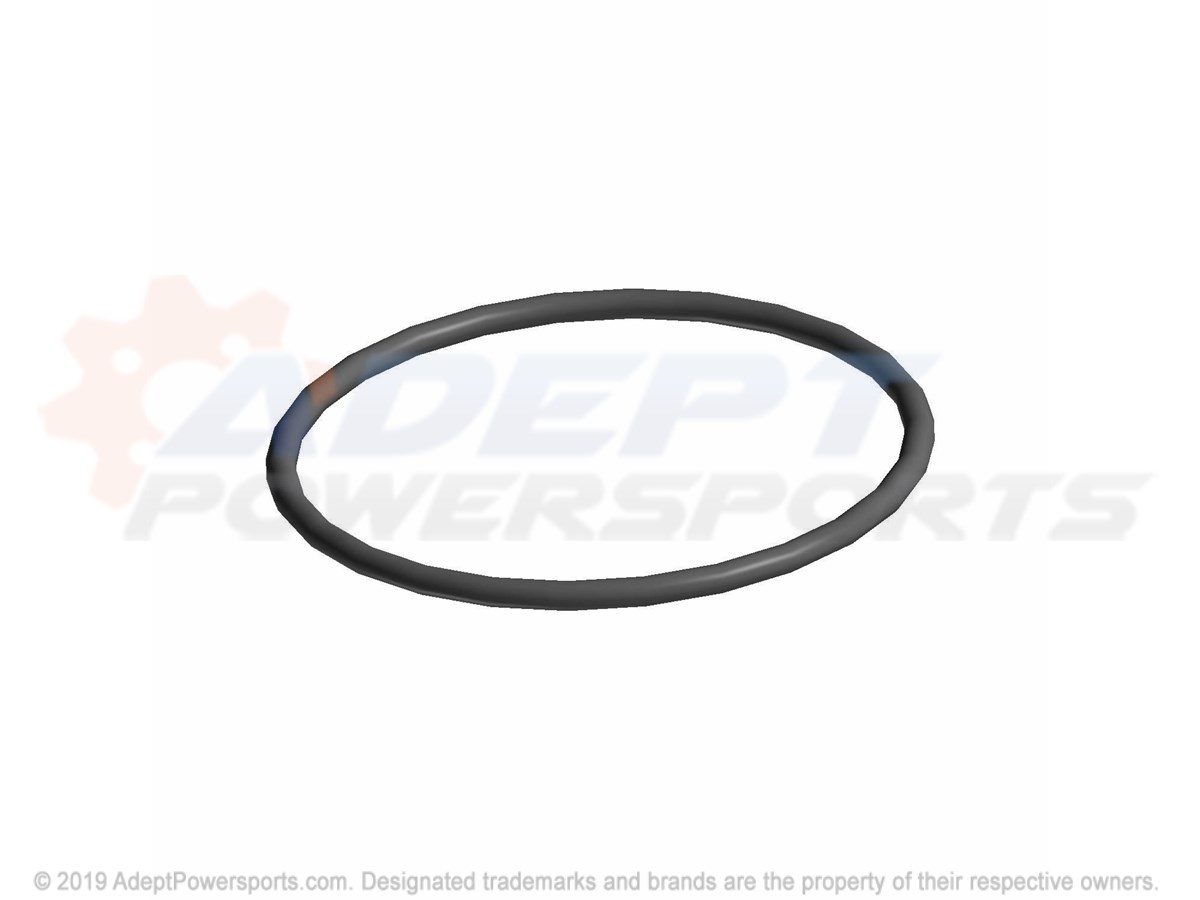

Polaris 5414839 O-Ring

O-RING

Part #: 5414839 Required per assembly: 2
Currently Not Available
