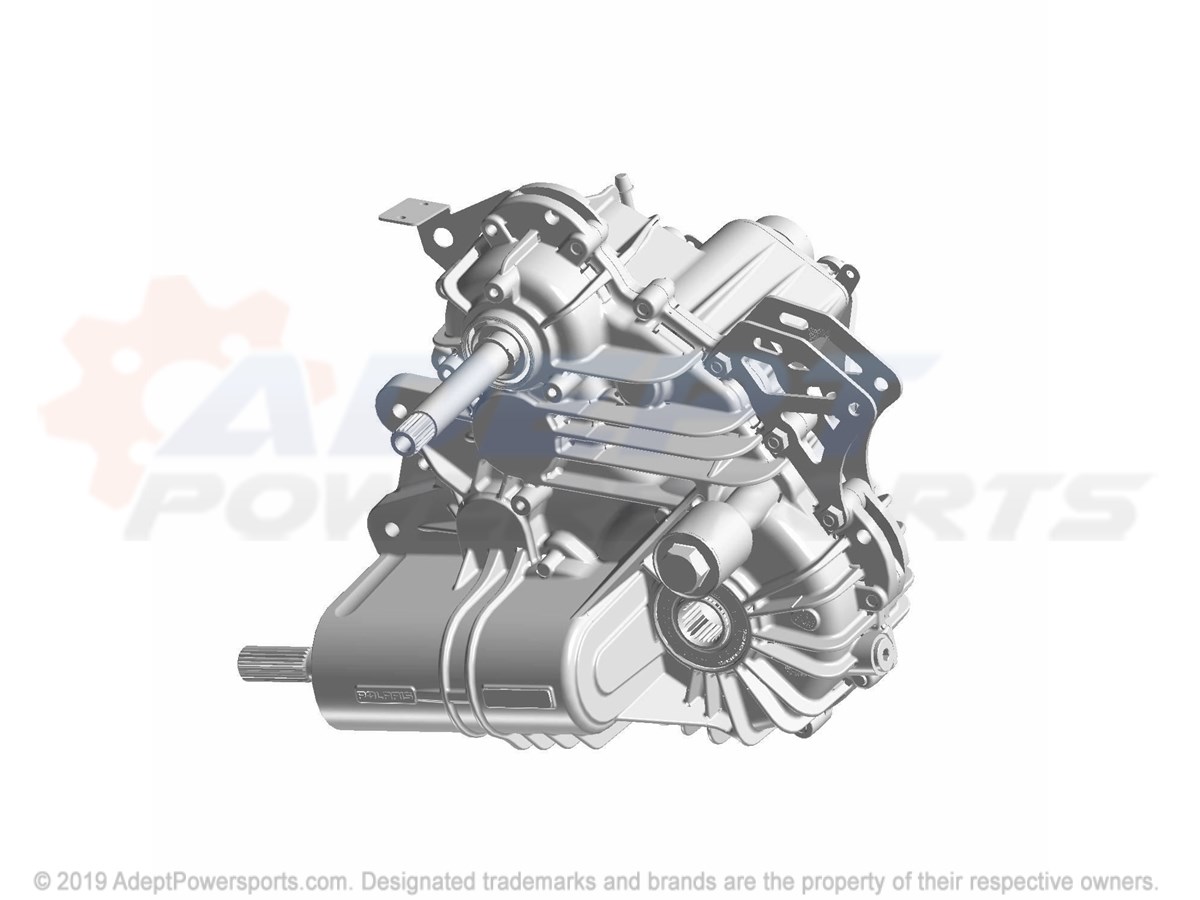

Main Gearcase - R14RH57FX Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	ASSEMBLY, MAIN, GEARCASE Part #: 1333059 Required per assembly: 1 Note: INCL. ALL Currently Not Available
1	PLUG, SOCKET, HEAD Part #: 3234755 Required per assembly: 1 Note: Plug Currently Not Available
2	PLUG, SOCKET, HEAD, W/MAGNET Part #: 3234756 Required per assembly: 1 Note: Plug, Socket Head Currently Not Available
4	SCREW, HEX, FLANGE, HEAD, M8, X, 1.25, X, 30 Part #: 3234898 Required per assembly: 14 Note: Screw ~~$9.99~~ $5.75 - + Add to cart
5	SCREW Part #: 3235206 Required per assembly: 6 Currently Not Available
5	SCREW Part #: 3235206 Required per assembly: 6 Currently Not Available
6	SCREW Part #: 3235207 Required per assembly: 3 Currently Not Available
7	SCR-M6X1.0X40 SOC/CAP(105344) Part #: 3235208 Required per assembly: 1 Currently Not Available
8	SCR-SCKT HD CP M6X1X18(105355) Part #: 3235332 Required per assembly: 6 Currently Not Available
8	SCR-SCKT HD CP M6X1X18(105355) Part #: 3235332 Required per assembly: 6 Currently Not Available
8	SCR-SCKT HD CP M6X1X18(105355) Part #: 3235332 Required per assembly: 6 Currently Not Available
9	SCREW, HEX, FLANGE, HEAD, M8, X, 1.25, X, 30 Part #: 3234898 Required per assembly: 2 Note: Screw ~~$9.99~~ $5.75 - + Add to cart
10	NUT, LOCK, HEX, FLANGE, NYLON Part #: 3235210 Required per assembly: 1 Currently Not Available
11	WASHER Part #: 3234091 Required per assembly: 2 Note: Washer, Cup Currently Not Available
11	WASHER Part #: 3234091 Required per assembly: 2 Note: Washer, Cup Currently Not Available
12	PLATE, PARK Part #: 3235456 Required per assembly: 1 Currently Not Available
13	WASHER Part #: 3235211 Required per assembly: 3 Currently Not Available
13	WASHER Part #: 3235211 Required per assembly: 3 Currently Not Available
13	WASHER Part #: 3235211 Required per assembly: 3 Currently Not Available
14	WASHER Part #: 3235212 Required per assembly: 1 Currently Not Available
15	WASHER Part #: 3235213 Required per assembly: 1 ~~$24.99~~ $14.38 - + Add to cart
16	PIN, DOWEL Part #: 3234330 Required per assembly: 2 ~~$6.99~~ $4.03 - + Add to cart
17	SPRING-SLOTTED PIN 6MM Part #: 7043746 Required per assembly: 1 Currently Not Available
18	RING, SNAP Part #: 3233106 Required per assembly: 2 Currently Not Available
18	RING, SNAP Part #: 3233106 Required per assembly: 2 Currently Not Available
19	RING, RETAINING Part #: 3233834 Required per assembly: 1 Currently Not Available
20	RING, RETAINING Part #: 3233364 Required per assembly: 1 Currently Not Available
21	RING, RETAINING Part #: 3234318 Required per assembly: 1 ~~$4.99~~ $2.88 - + Add to cart
22	RING, RETAINING Part #: 3234269 Required per assembly: 1 Currently Not Available
23	RING, RETAINING Part #: 3234090 Required per assembly: 2 Currently Not Available
23	RING, RETAINING Part #: 3234090 Required per assembly: 2 Currently Not Available
24	RING, RETAINING, [1322419] Part #: 3234205 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
24	RING, RETAINING, [1322419] Part #: 3234205 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
25	RING RETAINING EXTERNAL Part #: 3235214 Required per assembly: 3 Currently Not Available
25	RING RETAINING EXTERNAL Part #: 3235214 Required per assembly: 3 Currently Not Available
25	RING RETAINING EXTERNAL Part #: 3235214 Required per assembly: 3 Currently Not Available
26	RING RETAINING Part #: 3235216 Required per assembly: 1 Currently Not Available
27	WASHER, THRUST Part #: 3233378 Required per assembly: 2 Currently Not Available
27	WASHER, THRUST Part #: 3233378 Required per assembly: 2 Currently Not Available
28	WASHER THRUST .446X.88X.025 Part #: 3234642 Required per assembly: 1 Currently Not Available
29	SHIM Part #: 3234272 Required per assembly: 1 Currently Not Available
30	SHIM Part #: 3234273 Required per assembly: 1 Currently Not Available
31	BEARING, NEEDLE Part #: 3233014 Required per assembly: 2 Currently Not Available
31	BEARING, NEEDLE Part #: 3233014 Required per assembly: 2 Currently Not Available
32	BEARING Part #: 3233019 Required per assembly: 2 Currently Not Available
32	BEARING Part #: 3233019 Required per assembly: 2 Currently Not Available
33	BEARING Part #: 3233020 Required per assembly: 2 Currently Not Available
33	BEARING Part #: 3233020 Required per assembly: 2 Currently Not Available
34	BEARING, BALL Part #: 3233268 Required per assembly: 2 Currently Not Available
34	BEARING, BALL Part #: 3233268 Required per assembly: 2 Currently Not Available
35	BEARING, BALL Part #: 3234065 Required per assembly: 3 Currently Not Available
35	BEARING, BALL Part #: 3234065 Required per assembly: 3 Currently Not Available
35	BEARING, BALL Part #: 3234065 Required per assembly: 3 Currently Not Available
36	BEARING NEEDLE Part #: 3233384 Required per assembly: 1 Currently Not Available
37	BEARING BALL Part #: 3235218 Required per assembly: 1 Currently Not Available
38	BEARING, BALL Part #: 3234652 Required per assembly: 2 Currently Not Available
38	BEARING, BALL Part #: 3234652 Required per assembly: 2 Currently Not Available
39	SPRING, COMPRESSION Part #: 3234078 Required per assembly: 2 Currently Not Available
39	SPRING, COMPRESSION Part #: 3234078 Required per assembly: 2 Currently Not Available
40	SPRING, COMPRESSION Part #: 3234089 Required per assembly: 2 ~~$24.99~~ $14.65 - + Add to cart
40	SPRING, COMPRESSION Part #: 3234089 Required per assembly: 2 ~~$24.99~~ $14.65 - + Add to cart
41	SPRING, TORSION Part #: 3234276 Required per assembly: 1 Currently Not Available
42	SPRING, COMPRESSION Part #: 3234277 Required per assembly: 1 Currently Not Available
43	SPRING, TORSION Part #: 3233820 Required per assembly: 1 Currently Not Available
44	SPRING WASHER Part #: 3235327 Required per assembly: 1 Currently Not Available
45	TUBE, SNORKEL Part #: 3234278 Required per assembly: 1 Currently Not Available
46	COVER W/PINS Part #: 3234188 Required per assembly: 1 Note: For gasket use p/n 3234123 Currently Not Available
47	SUBASM., LH, CASE Part #: 3235422 Required per assembly: 1 Note: INCL. HARDWARE Currently Not Available
48	SUBASM., RH, CASE Part #: 3235444 Required per assembly: 1 Note: INCL. HARDWARE Currently Not Available
49	DRUM, SHIFT Part #: 3235463 Required per assembly: 1 Currently Not Available
50	GEAR, 16T Part #: 3233839 Required per assembly: 1 Currently Not Available
51	GEAR, 31T Part #: 3233832 Required per assembly: 1 Currently Not Available
52	PAWL, ROLLER Part #: 3235452 Required per assembly: 1 Currently Not Available
53	STAR, DETENT Part #: 3235453 Required per assembly: 1 Currently Not Available
54	BEARING, PLAIN Part #: 3234239 Required per assembly: 6 Currently Not Available
55	SHAFT IDLER 29T Part #: 3235223 Required per assembly: 1 Currently Not Available
56	SHAFT, REVERSE, 25T Part #: 3235451 Required per assembly: 1 Currently Not Available
57	SHAFT, FRONT, OUTPUT Part #: 3235394 Required per assembly: 1 Currently Not Available
58	SHAFT INPUT HELICAL Part #: 3235226 Required per assembly: 1 Currently Not Available
59	ASM-SUB PINION SHAFT(411759) Part #: 3235336 Required per assembly: 1 Note: INCL. BEARING, RETAINING RING Currently Not Available
60	BELLCRANK Part #: 3235480 Required per assembly: 1 Currently Not Available
61	COLLAR, SHIFT Part #: 3234073 Required per assembly: 1 Currently Not Available
62	RAIL, SHIFT, SHAFT Part #: 3235542 Required per assembly: 1 Currently Not Available
63	TUBE, VENT, (1332366) Part #: 3234230 Required per assembly: 1 Note: Tube, Vent [4x4] Currently Not Available
64	FORK, SHIFT Part #: 3235455 Required per assembly: 1 Currently Not Available
65	DOG-ENGAGEMENT Part #: 3234928 Required per assembly: 1 Currently Not Available
66	SHIFT, DOG, PARK/LOW Part #: 3235457 Required per assembly: 1 Currently Not Available
67	GEAR, 48T, STAGE, 2 Part #: 3235450 Required per assembly: 1 Currently Not Available
68	FORK, SHIFT Part #: 3235454 Required per assembly: 2 Currently Not Available
68	FORK, SHIFT Part #: 3235454 Required per assembly: 2 Currently Not Available
69	SPROCKET-48T 6-FACE (352854) Part #: 3235231 Required per assembly: 1 Currently Not Available
70	GEAR, LOW, 67T Part #: 3235232 Required per assembly: 1 Currently Not Available
71	DOG ENGAGEMENT 6-FACE Part #: 3235233 Required per assembly: 1 Currently Not Available
72	GEAR 53T Part #: 3235234 Required per assembly: 1 Currently Not Available
73	GEAR 46T STAGE 3 Part #: 3235236 Required per assembly: 1 Currently Not Available
74	GEAR-13T FRONT OUTPUT (352957) Part #: 3235237 Required per assembly: 1 Currently Not Available
75	SHAFT SHIFT Part #: 3235238 Required per assembly: 1 Currently Not Available
76	BRACKET, REAR, MOUNT Part #: 3235510 Required per assembly: 1 Currently Not Available
77	DIFF, LOCKING Part #: 3235373 Required per assembly: 1 Currently Not Available
78	RETAINER-FORK Part #: 3234934 Required per assembly: 2 Currently Not Available
79	BRACKET, MOUNT, REAR Part #: 3235511 Required per assembly: 1 Currently Not Available
80	COVER BEARING CENTER DRIVE Part #: 3235241 Required per assembly: 1 Currently Not Available
81	SPACER Part #: 3235243 Required per assembly: 1 Currently Not Available
82	CHAIN, SILENT Part #: 3234737 Required per assembly: 1 Currently Not Available
83	SOLENOID Part #: 3235478 Required per assembly: 1 Currently Not Available
84	PIN-GEAR POSITION SWITCH Part #: 7661999 Required per assembly: 1 Currently Not Available
85	O-RING Part #: 3233076 Required per assembly: 1 Currently Not Available
86	O-RING Part #: 3234302 Required per assembly: 1 Currently Not Available
87	O-RING Part #: 3233869 Required per assembly: 1 Currently Not Available
88	TRIPLE, LIP, SEAL, 25, X, 80, X, 10 Part #: 3234113 Required per assembly: 1 Note: Seal, Triple Lip Currently Not Available
89	SEAL Part #: 3234851 Required per assembly: 1 Currently Not Available
90	SEAL-TRIPLE LIP VITON 40X70X7 Part #: 3235052 Required per assembly: 2 Currently Not Available
90	SEAL-TRIPLE LIP VITON 40X70X7 Part #: 3235052 Required per assembly: 2 Currently Not Available
91	SCREW, CAP, HH, M8X1.25X20 Part #: 3236169 Required per assembly: 6 ~~$9.99~~ $5.85 - + Add to cart
92	K-SPEED SENSOR Part #: 3239727 Required per assembly: 1 Currently Not Available
93	BRACKET, HARNESS, MOUNT Part #: 5257251 Required per assembly: 1 Currently Not Available
94	SUBASM., GEAR, 53T Part #: 3235378 Required per assembly: 1 Note: INCL. PINS, BUSHING, BEARING Currently Not Available
95	BRACKET, WIRE, HARNESS Part #: 3235350 Required per assembly: 2 Currently Not Available
96	SUBASM., GEAR, 53T Part #: 3235378 Required per assembly: 2 Currently Not Available
96	SUBASM., GEAR, 53T Part #: 3235378 Required per assembly: 2 Currently Not Available
97	SUBASM, 39T, SIDE, GEAR Part #: 3235374 Required per assembly: 1 Note: INCL. PLUG Currently Not Available
98	BEARING, PLAIN Part #: 3234241 Required per assembly: 3 Currently Not Available
98	BEARING, PLAIN Part #: 3234241 Required per assembly: 3 Currently Not Available
99	SUBASM., 39T, SIDE, GEAR Part #: 3235375 Required per assembly: 1 Currently Not Available
100	SUBASM., DIFF., COVER Part #: 3235376 Required per assembly: 1 Note: INCL. PLUG, BUSHING Currently Not Available
101	GEAR, SUB, ASM. Part #: 3234469 Required per assembly: 6 Note: INCL. BUSHING Currently Not Available
