Exhaust - R14rh76aa/76Ac/7Eaz replacement parts for 2014 Polaris Ranger 800 EFI Midsize

OEM Parts Polaris 2014 Polaris Ranger 800 EFI Midsize Exhaust - R14rh76aa/76Ac/7Eaz

Exhaust - R14RH76AA/76AC/7EAZ Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SILENCER, BLACK Part #: 1262363-489 Required per assembly: 1 Note: INCL. 4,5 Currently Not Available
2	GROMMET, SILENCER, MOUNT Part #: 5412727 Required per assembly: 1 Note: Grommet Currently Not Available
3	GROMMET, SILENCER, MOUNT Part #: 5436598 Required per assembly: 2 Currently Not Available
4	WASHER, CLEAN, OUT Part #: 7556230 Required per assembly: 1 Note: Washer ~~$1.99~~ $1.15 - + Add to cart
5	BOLT Part #: 7512666 Required per assembly: 1 Currently Not Available
6	SPRING, EXHAUST Part #: 7041687 Required per assembly: 2 ~~$3.99~~ $2.30 - + Add to cart
7	SEAL, EXHAUST Part #: 5256385 Required per assembly: 1 Currently Not Available

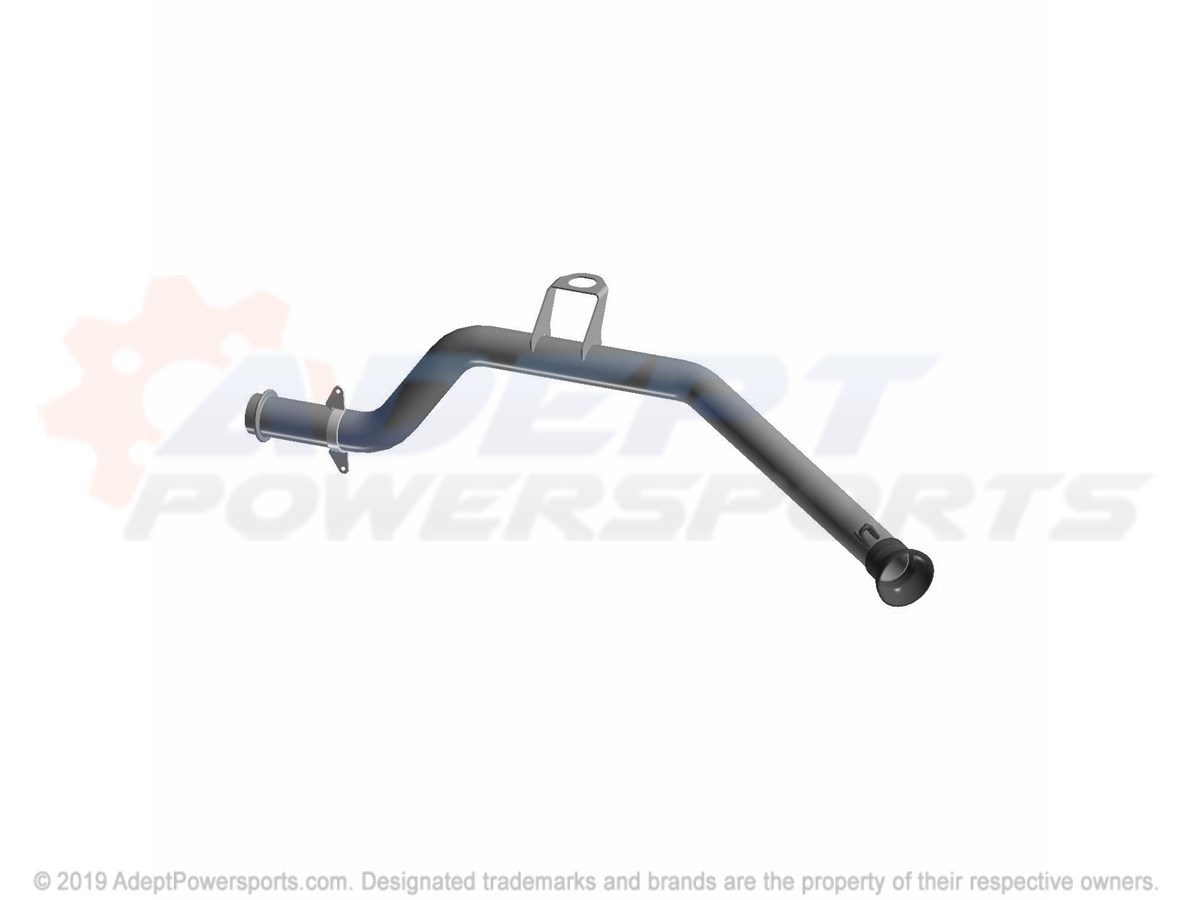

8	PIPE, EXHAUST, BLACK Part #: 1262333-489 Required per assembly: 1 Currently Not Available
9	SHIELD, HEAT, EXHAUST, REAR Part #: 5256671 Required per assembly: 1 Currently Not Available
10	SHIELD, MANIFOLD, TOP Part #: 5252237 Required per assembly: 1 Currently Not Available
11	CLAMP HEAT SHIELD EXHAUST Part #: 7081156 Required per assembly: 1 Currently Not Available
11	CLAMP HEAT SHIELD EXHAUST Part #: 7081156 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7518490 Required per assembly: 4 Note: Screw, Flange Currently Not Available
12	SCREW Part #: 7518490 Required per assembly: 4 Note: Screw, Flange Currently Not Available
13	WASHER Part #: 7555935 Required per assembly: 4 Note: Washer, Flat Currently Not Available
14	SHIELD, EXHAUST, MANIFOLD Part #: 5253804 Required per assembly: 1 Currently Not Available
15	BUSHING-RES. MT. Part #: 5010192 Required per assembly: 1 Currently Not Available
16	SHIELD, HEAT, HEADPIPE, FRONT Part #: 5256672 Required per assembly: 1 Currently Not Available
17	WASHER, RUBBER Part #: 5414945 Required per assembly: 1 Note: BUILT 8/02/13 AND AFTER Currently Not Available
17	WASHER, RUBBER Part #: 5410436 Required per assembly: 1 Note: BUILT 8/01/13 AND BEFORE ~~$2.99~~ $1.73 - + Add to cart
18	DAMPENER, VIBRATION Part #: 5412508 Required per assembly: 1 Note: BUILT 8/01/13 AND BEFORE Currently Not Available
18	DAMPER, VIBRATION Part #: 5414946 Required per assembly: 1 Note: BUILT 8/02/13 AND AFTER Currently Not Available
19	BOLT Part #: 7515316 Required per assembly: 1 Currently Not Available
20	NUT Part #: 7542324 Required per assembly: 1 Currently Not Available
21	SEAL-EXHAUST SOCKET Part #: 3610181 Required per assembly: 1 Currently Not Available
22	SPRING-EXHAUST Part #: 7041789 Required per assembly: 5 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
22	SPRING-EXHAUST Part #: 7041789 Required per assembly: 5 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
23	WASHER Part #: 7555716 Required per assembly: 1 Currently Not Available
24	GASKET, EXHAUST Part #: 5811511 Required per assembly: 1 Note: Gasket Currently Not Available
25	MANIFOLD Part #: 1262138-489 Required per assembly: 1 Currently Not Available
26	SCREW Part #: 7518984 Required per assembly: 4 Currently Not Available
27	BUSHING Part #: 7555863 Required per assembly: 1 Note: Bushing Currently Not Available
28	MANIFOLD, JOINT, BLACK Part #: 1262139-489 Required per assembly: 1 Currently Not Available
29	SEAL, EXHAUST, SOCKET Part #: 3610209 Required per assembly: 1 Currently Not Available
