Primary Clutch - R14th90dg replacement parts for 2014 Polaris Ranger 900 Diesel

OEM Parts Polaris 2014 Polaris Ranger 900 Diesel Primary Clutch - R14th90dg

Primary Clutch - R14TH90DG Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-DRIVE CLUTCH 23-62 29-129 Part #: 1323023 Required per assembly: 1 Note: INCL. 2-7,12-15 Currently Not Available
2	NUT FLEX LOC Part #: 7541906 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
3	SCREW Part #: 3235321 Required per assembly: 3 Currently Not Available
4	WEIGHT, CLUTCH, D, 180, G Part #: 3235392 Required per assembly: 3 Note: Sold in multiples of 3 only Currently Not Available
5	WASHER-THRUST Part #: 7556595 Required per assembly: 2 Currently Not Available
6	SPRING, 96/225 Part #: 7044003 Required per assembly: 1 Currently Not Available
7	SCREW Part #: 3235322 Required per assembly: 6 Currently Not Available
8	BUSHING Part #: 5437682 Required per assembly: 1 Currently Not Available
9	WASHER, FLAT Part #: 7556468 Required per assembly: 1 Currently Not Available
10	WASHER, INTER, LOCK Part #: 7556377 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7519812 Required per assembly: 1 Currently Not Available
12	ASSEMBLY, IDLER Part #: 1323022 Required per assembly: 1 Currently Not Available

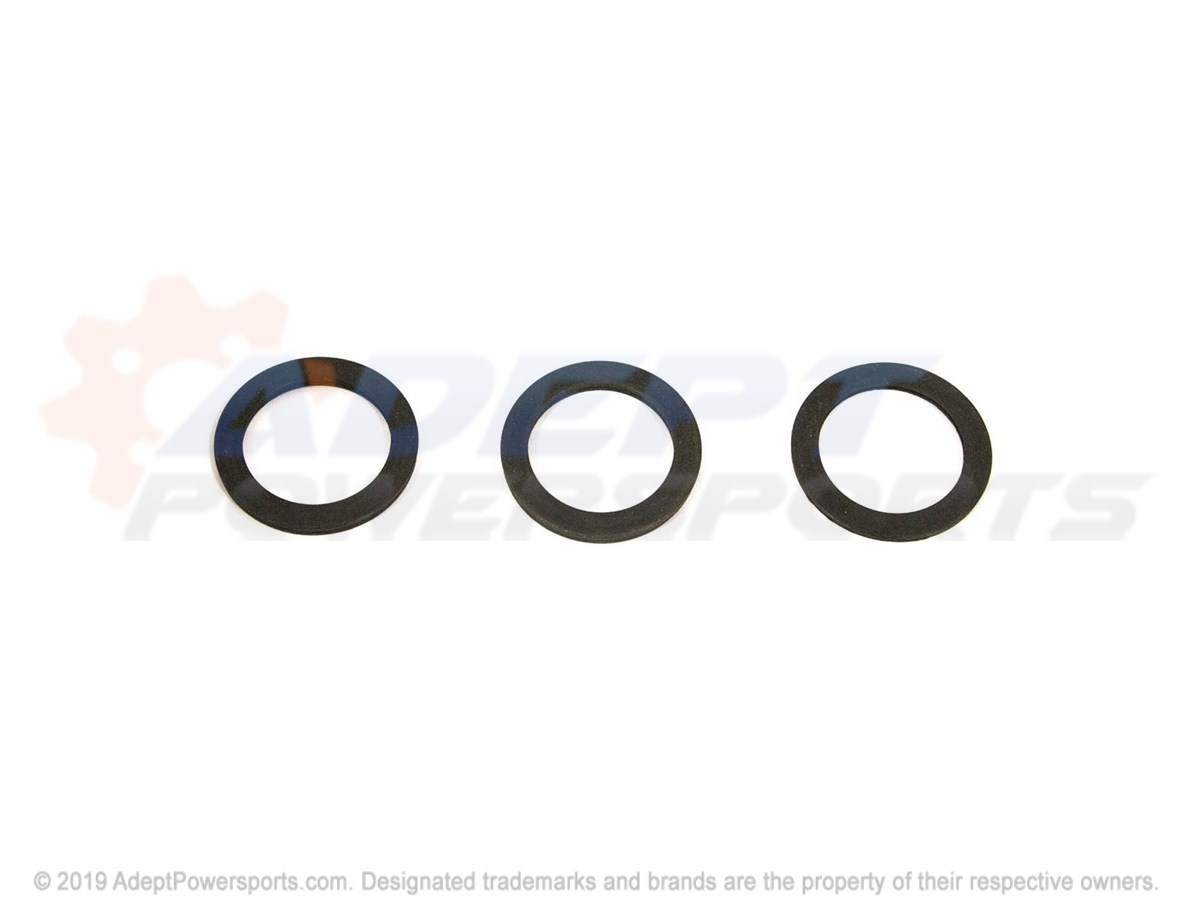

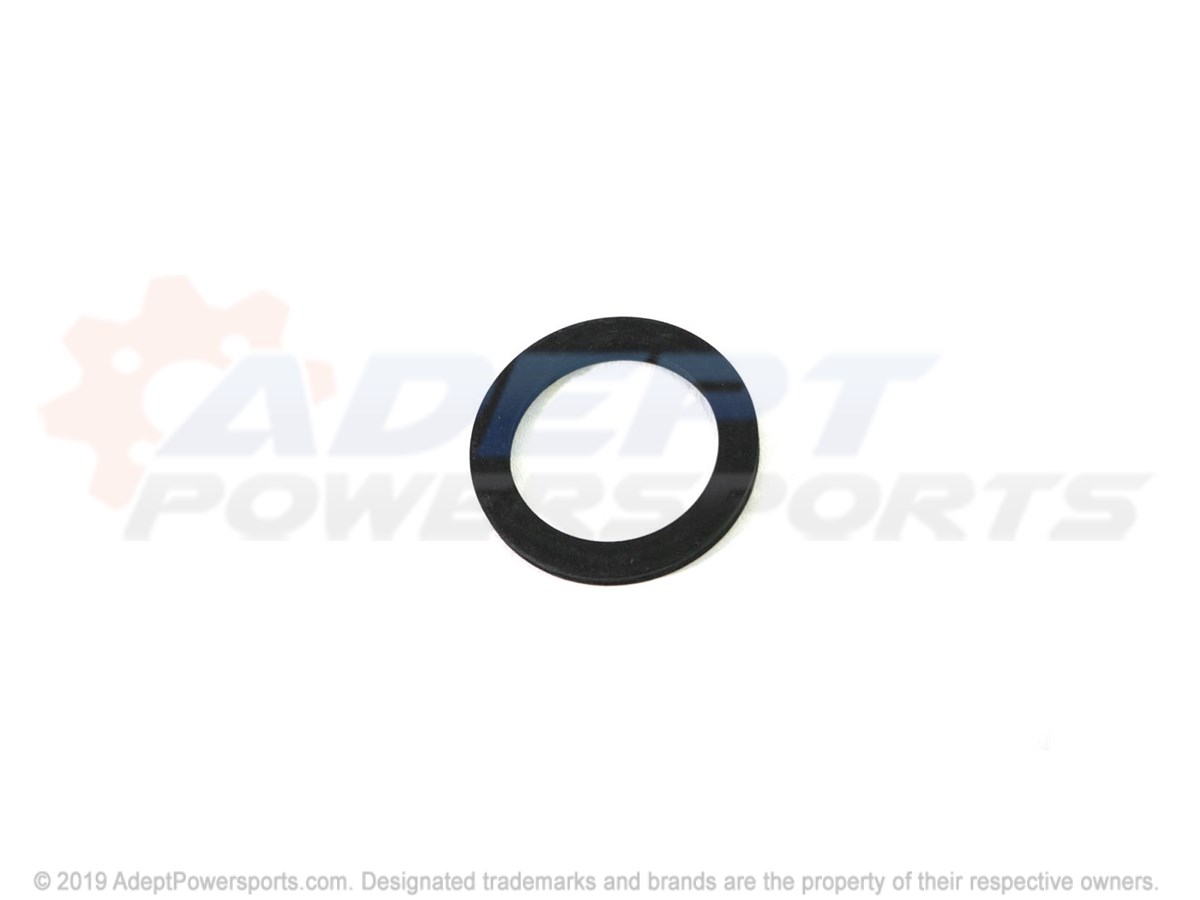

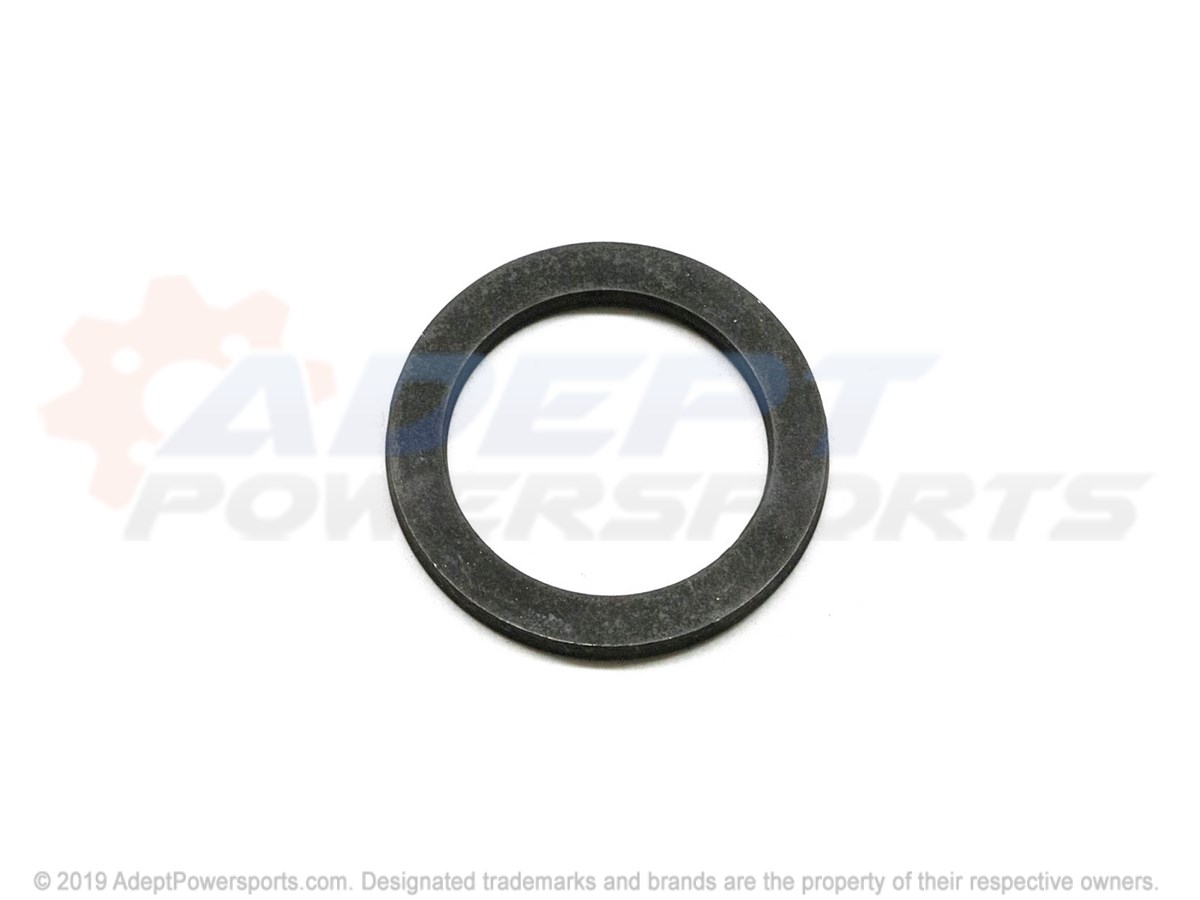

13	SHIM Part #: 7556596 Required per assembly: 1 Currently Not Available
14	SHIM Part #: 7556597 Required per assembly: 1 Currently Not Available
15	SHIM Part #: 7556598 Required per assembly: 1 Currently Not Available
