2014 Polaris Ranger XP 900 All Options R14UH88/9E/9EAN - Main Frame - R14uh88/9E/9Ean All Options

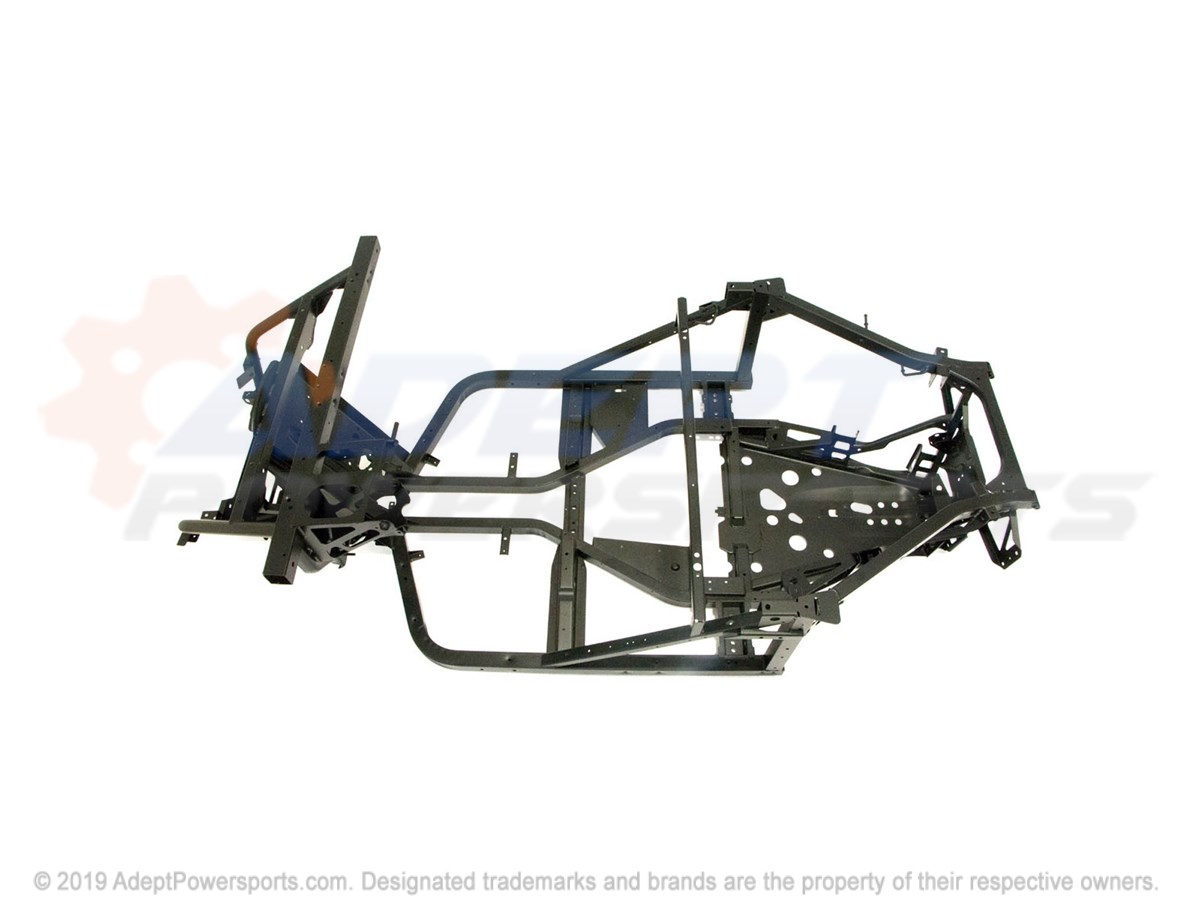

Main Frame - R14UH88/9E/9EAN All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1019428-458 Frame, Main, Matte, Black

FRAME, MAIN, MATTE, BLACK

Part #: 1019428-458 Required per assembly: 1
Currently Not Available
2
Polaris 1019513-329 Base, Cab/Seat, Matte, Black

BASE, CAB/SEAT, MATTE, BLACK

Part #: 1019513-329 Required per assembly: 1
Currently Not Available
3
Polaris 1018295-329 Support, Cab, Rear, Matte, Black

SUPPORT, CAB, REAR, MATTE, BLACK

Part #: 1018295-329 Required per assembly: 1
Currently Not Available
4
Polaris 1019496-458 Support, Floor, Lh, Matte, Black

SUPPORT, FLOOR, LH, MATTE, BLACK

Part #: 1019496-458 Required per assembly: 1
Currently Not Available
5
Polaris 1019497-458 Support, Floor, Rh, Matte, Black

SUPPORT, FLOOR, RH, MATTE, BLACK

Part #: 1019497-458 Required per assembly: 1
Currently Not Available
6
Polaris 5450344-070 Plate, Windshield, Mount, Lower, Black

PLATE, WINDSHIELD, MOUNT, LOWER, BLACK

Part #: 5450344-070 Required per assembly: 1
Currently Not Available
7
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 15 Note: Bolt, Flange
Currently Not Available
7
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 15 Note: Bolt, Flange
Currently Not Available
7
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 15 Note: Bolt, Flange
Currently Not Available
7
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 15 Note: Bolt, Flange
Currently Not Available
8
Polaris 7519059 Screw

SCREW

Part #: 7519059 Required per assembly: 6
Currently Not Available
9
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 12 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
10
Polaris 7519363 Screw

SCREW

Part #: 7519363 Required per assembly: 6
Currently Not Available
10
Polaris 7519363 Screw

SCREW

Part #: 7519363 Required per assembly: 6
Currently Not Available
11
Polaris 1019087-329 Rocket, Lh, Black

ROCKET, LH, BLACK

Part #: 1019087-329 Required per assembly: 1
Currently Not Available
12
Polaris 1019088-329 Rocket, Rh, Black

ROCKET, RH, BLACK

Part #: 1019088-329 Required per assembly: 1
Currently Not Available
13
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 12
$2.99
$1.73
-
+
Add to cart
14

BRACKET, SUPPORT, WINDSHIELD

Part #: 5257886 Required per assembly: 1
Currently Not Available
15
Polaris 5257333-329 Bracket, Routing, Tray, Black

BRACKET, ROUTING, TRAY, BLACK

Part #: 5257333-329 Required per assembly: 1
Currently Not Available
16
Polaris 5450841-070 Tray, Routing, Black

TRAY, ROUTING, BLACK

Part #: 5450841-070 Required per assembly: 1
Currently Not Available
17
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 5
$2.99
$1.73
-
+
Add to cart
17
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 5
$2.99
$1.73
-
+
Add to cart
18
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 6 Note: Washer
$3.99
$2.30
-
+
Add to cart
19

U-TYPE, SPEED, NUT

Part #: 7081305 Required per assembly: 6 Note: Clip, U Speed Nut [Built 12/07/09 and Before]
Currently Not Available
20
Polaris 5414440 Grommet, Electrical

GROMMET, ELECTRICAL

Part #: 5414440 Required per assembly: 1 Note: EAB
Currently Not Available
21
Polaris 7519156 Screw

SCREW

Part #: 7519156 Required per assembly: 1
Currently Not Available
