Air Intake System - Z14xt9eao replacement parts for 2014 Polaris RZR 4 900

OEM Parts Polaris 2014 Polaris RZR 4 900 Air Intake System - Z14xt9eao

Air Intake System - Z14XT9EAO Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SUPPORT, AIRBOX, BLACK Part #: 1017918-329 Required per assembly: 1 Currently Not Available
2	ASSEMBLY, AIR, INTAKE, MAIN Part #: 1240698 Required per assembly: 1 Note: INCL. 3-7 Currently Not Available
3	ROD, NUT, PIVOT Part #: 5138692 Required per assembly: 5 Note: BUILT 10/16/12 AND AFTER Currently Not Available
4	BUSHING, FLANGE Part #: 5137652 Required per assembly: 2 Currently Not Available
5	GROMMET, BASE, TOP Part #: 5414160 Required per assembly: 2 Currently Not Available
6	BASE, AIRBOX Part #: 5439632 Required per assembly: 1 Currently Not Available
7	KNOB Part #: 7081690 Required per assembly: 5 Currently Not Available
8	ASSEMBLY, INTAKE, RESONATOR Part #: 1240634 Required per assembly: 1 Note: INCL. 9-11 Currently Not Available
9	CAP, DRAIN Part #: 5412960 Required per assembly: 1 Currently Not Available
10	ASSEMBLY, INTAKE, RESONATOR Part #: 1240634 Required per assembly: 1 Currently Not Available
11	CLAMP, HOSE Part #: 7081488 Required per assembly: 1 Currently Not Available
12	BRACKET, MOUNT, AIRBOX, LOWER Part #: 5254608 Required per assembly: 1 Currently Not Available

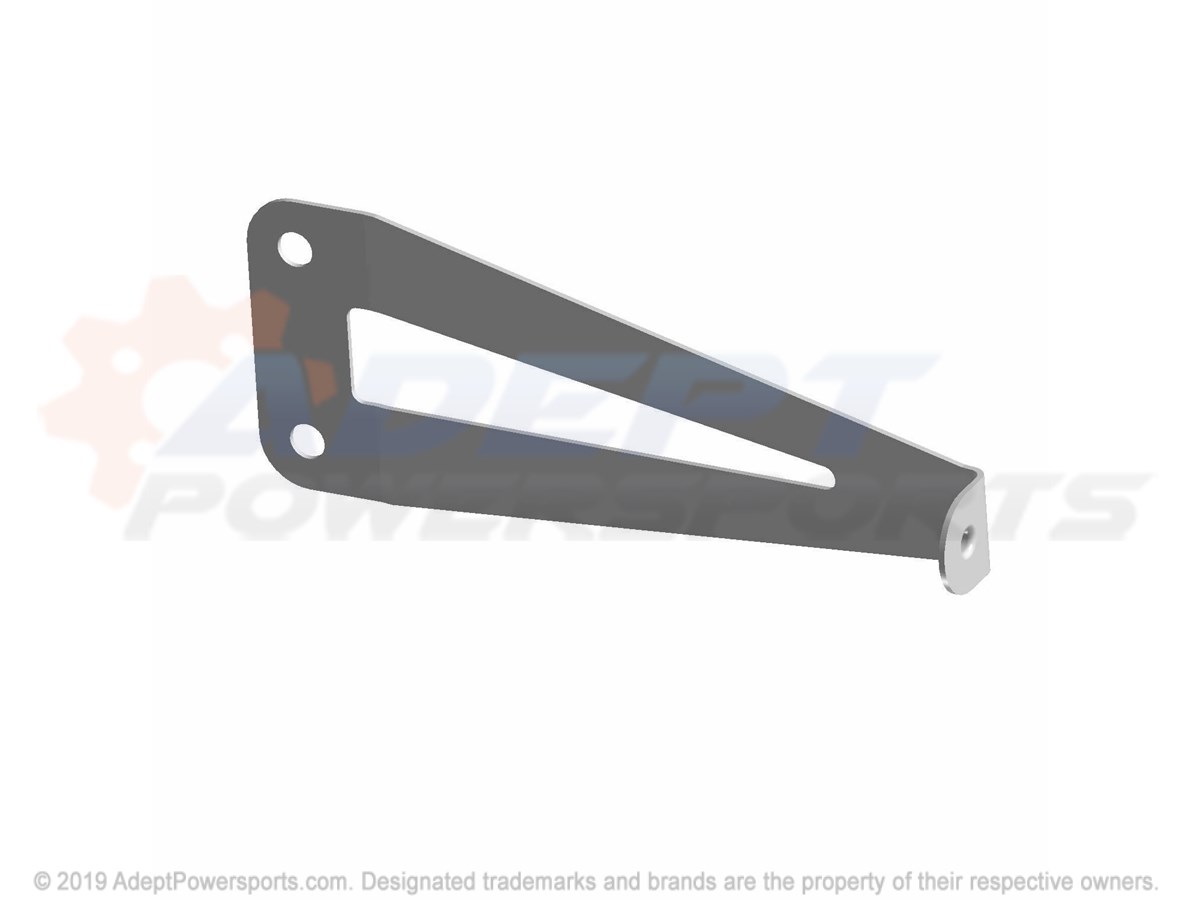

13	BRACKET, SUPPORT Part #: 5258645 Required per assembly: 1 $19.99 $11.50 - + Add to cart
14	GROMMET Part #: 5412507 Required per assembly: 1 Currently Not Available
15	ASSEMBLY, BOOT, TWIN, TB, RND Part #: 5413981 Required per assembly: 1 Note: INCL. 16,17 Currently Not Available
16	BOOT, TWIN, TB, RND Part #: 5413982 Required per assembly: 1 Currently Not Available
17	TUBE, INTAKE Part #: 5438562 Required per assembly: 2 Currently Not Available
18	LID, AIRBOX Part #: 5438322 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
20	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 $4.04 $2.91 - + Add to cart
21	SCREW Part #: 7518513 Required per assembly: 2 Currently Not Available
22	HOSE, INTAKE, LONG Part #: 5414284 Required per assembly: 1 Currently Not Available
23	CLAMP, BAND Part #: 7081672 Required per assembly: 1 Currently Not Available
24	SEAL, INTAKE, FOAM Part #: 5813750 Required per assembly: 1 Currently Not Available
25	CLAMP, NARROW, BAND Part #: 7081279 Required per assembly: 2 Currently Not Available
25	CLAMP, NARROW, BAND Part #: 7081279 Required per assembly: 2 Currently Not Available
26	BUSHING, PANEL, SNAP Part #: 7081697 Required per assembly: 1 Currently Not Available

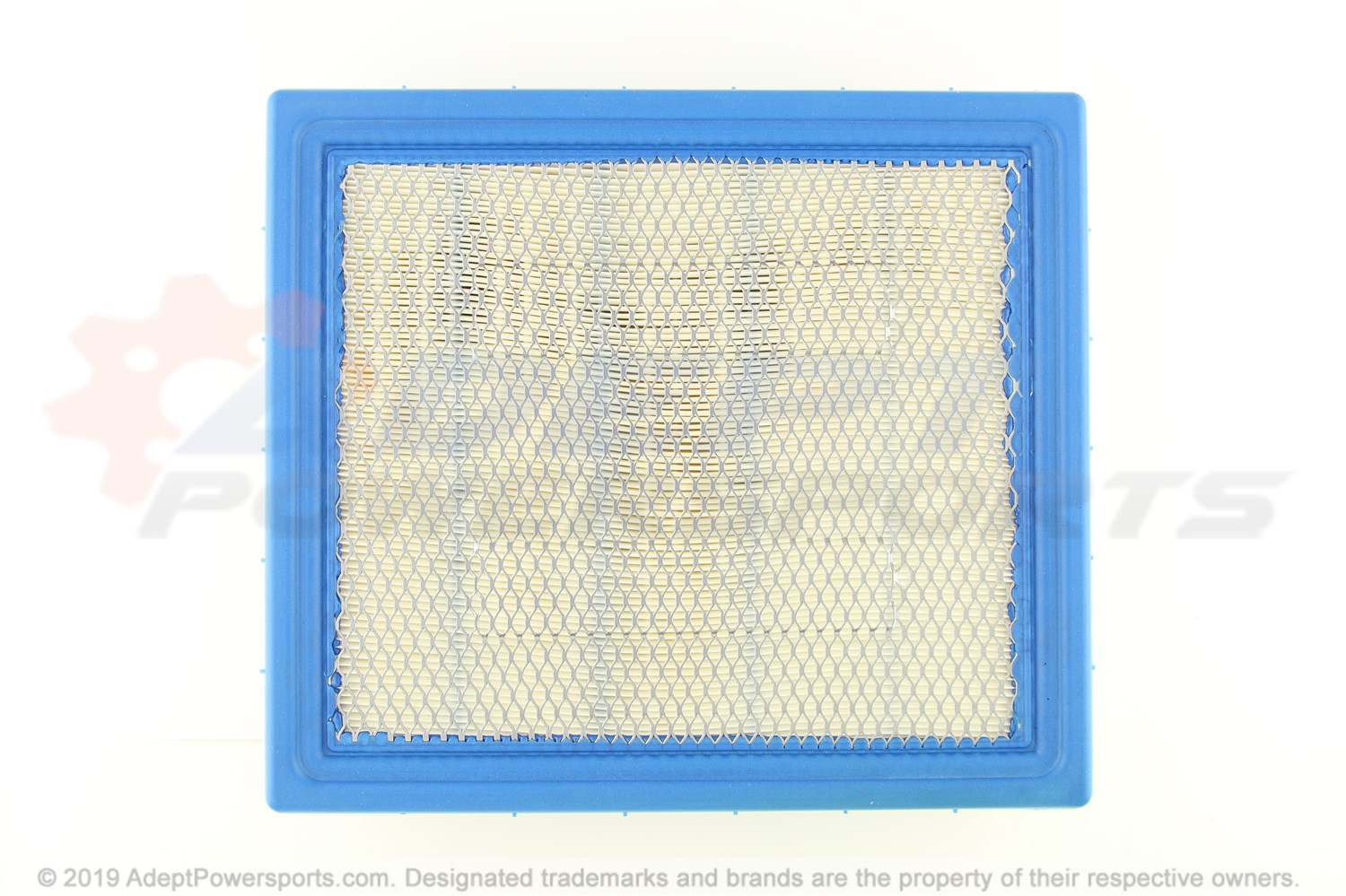

27	ASSEMBLY, FILTER, INTAKE Part #: 7081889 Required per assembly: 1 Currently Not Available
28	CLAMP, BAND, NARROW Part #: 7080413 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
29	SCREW Part #: 7517685 Required per assembly: 4 Note: Screw Currently Not Available
29	SCREW Part #: 7517685 Required per assembly: 4 Note: Screw Currently Not Available
30	LINE, CRANKCASE, VENT Part #: 5414497 Required per assembly: 1 Currently Not Available
31	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 1 Currently Not Available
