OEM Parts Polaris 2014 Polaris RZR 800 Clutch Cover And Ducting - Z14vh76ac/Ad/Eai/Eak/Eaj

2014 Polaris RZR 800 Z14VH76AC/AD/EAI/EAK/EAJ - Clutch Cover And Ducting - Z14vh76ac/Ad/Eai/Eak/Eaj

Clutch Cover and Ducting - Z14VH76AC/AD/EAI/EAK/EAJ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

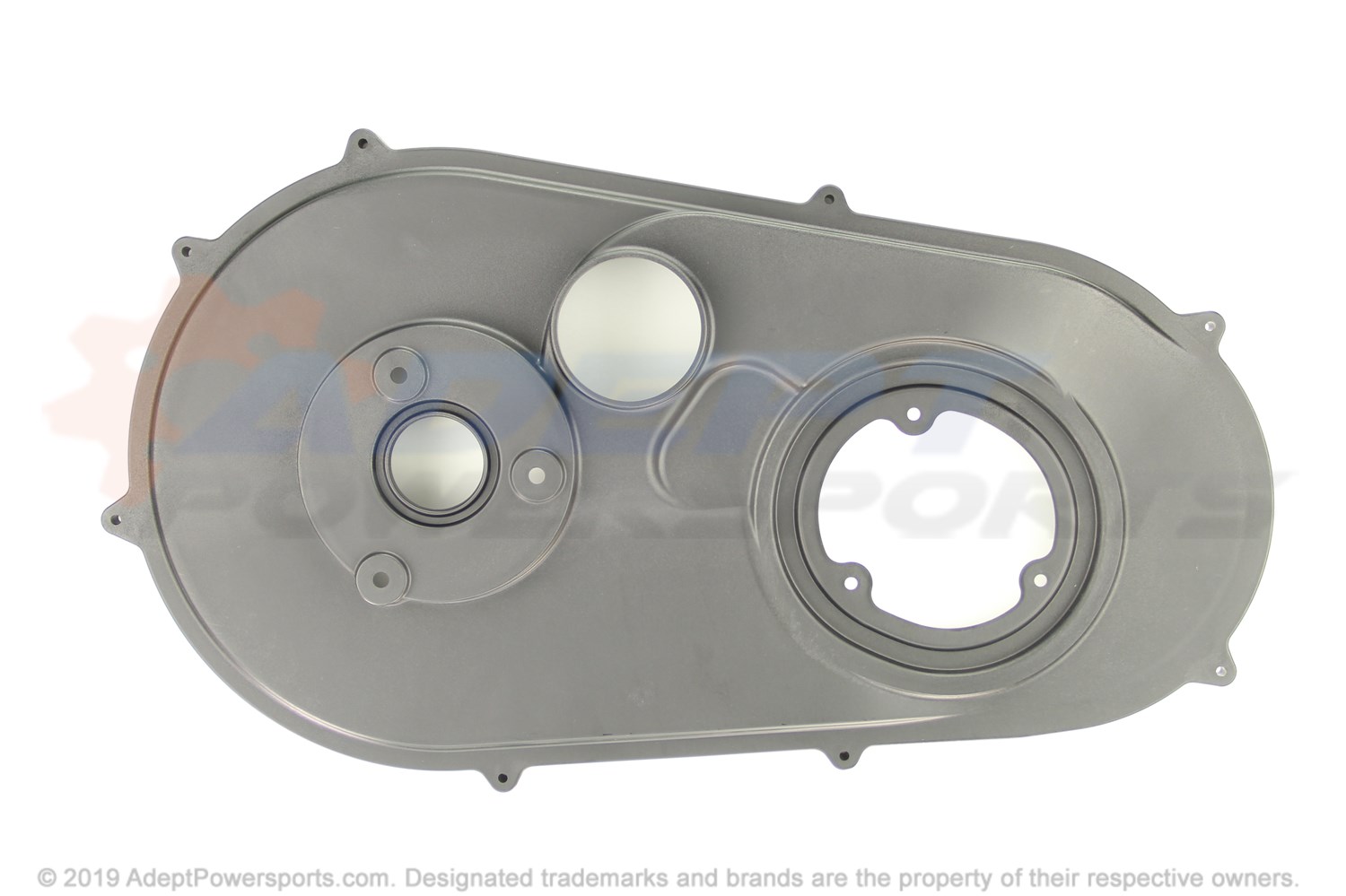

Polaris 5438307 Cover-Clutch Inner

COVER-CLUTCH INNER

Part #: 5438307 Required per assembly: 1
Currently Not Available
2

DUCT-CLUTCH AIR IN

Part #: 5438616 Required per assembly: 1
Currently Not Available
3

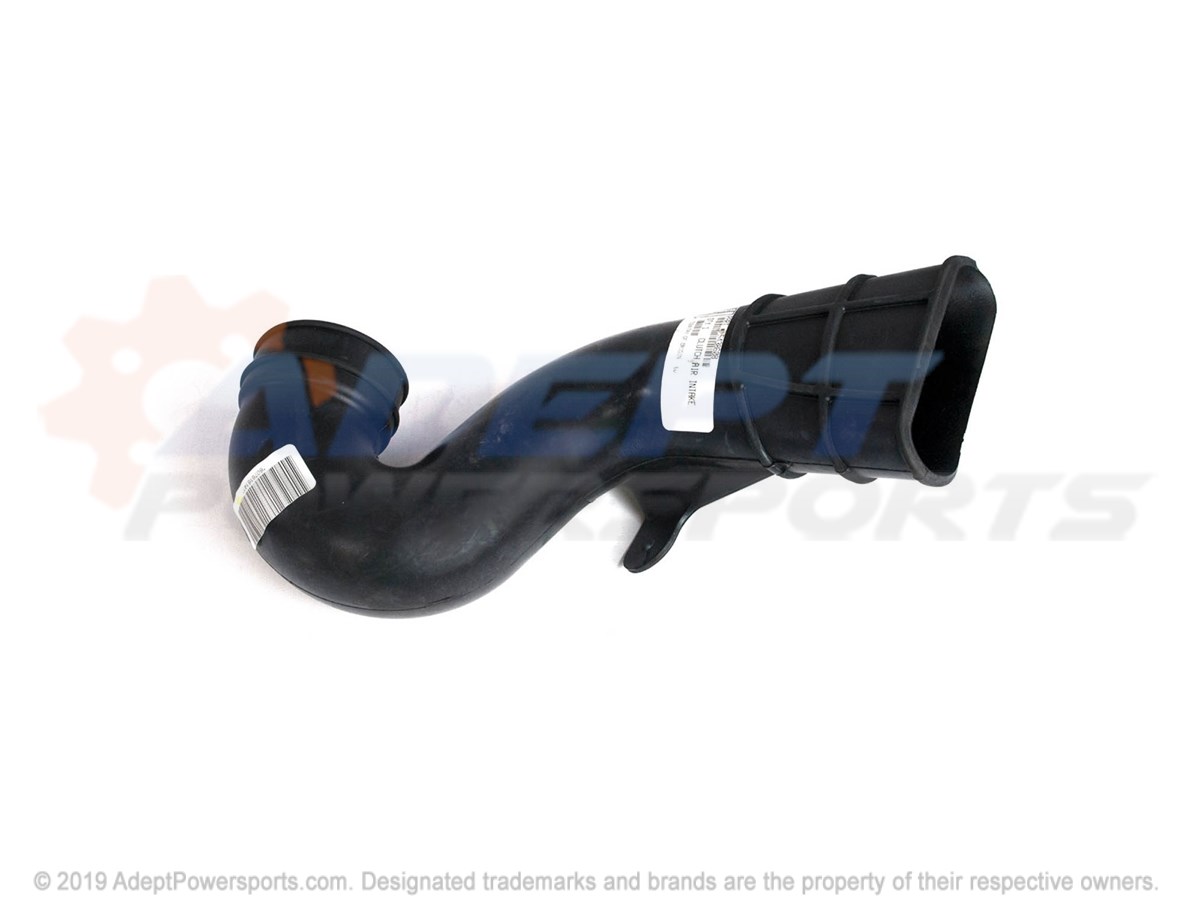

Polaris 5438608 Duct-Clutch Air Outlet

DUCT-CLUTCH AIR OUTLET

Part #: 5438608 Required per assembly: 1
Currently Not Available
4
Polaris 7080909 Clamp, Narrow, Band(1.77/2.75)

CLAMP, NARROW, BAND(1.77/2.75)

Part #: 7080909 Required per assembly: 1 Note: Clamp, Narrow Band
Currently Not Available
5

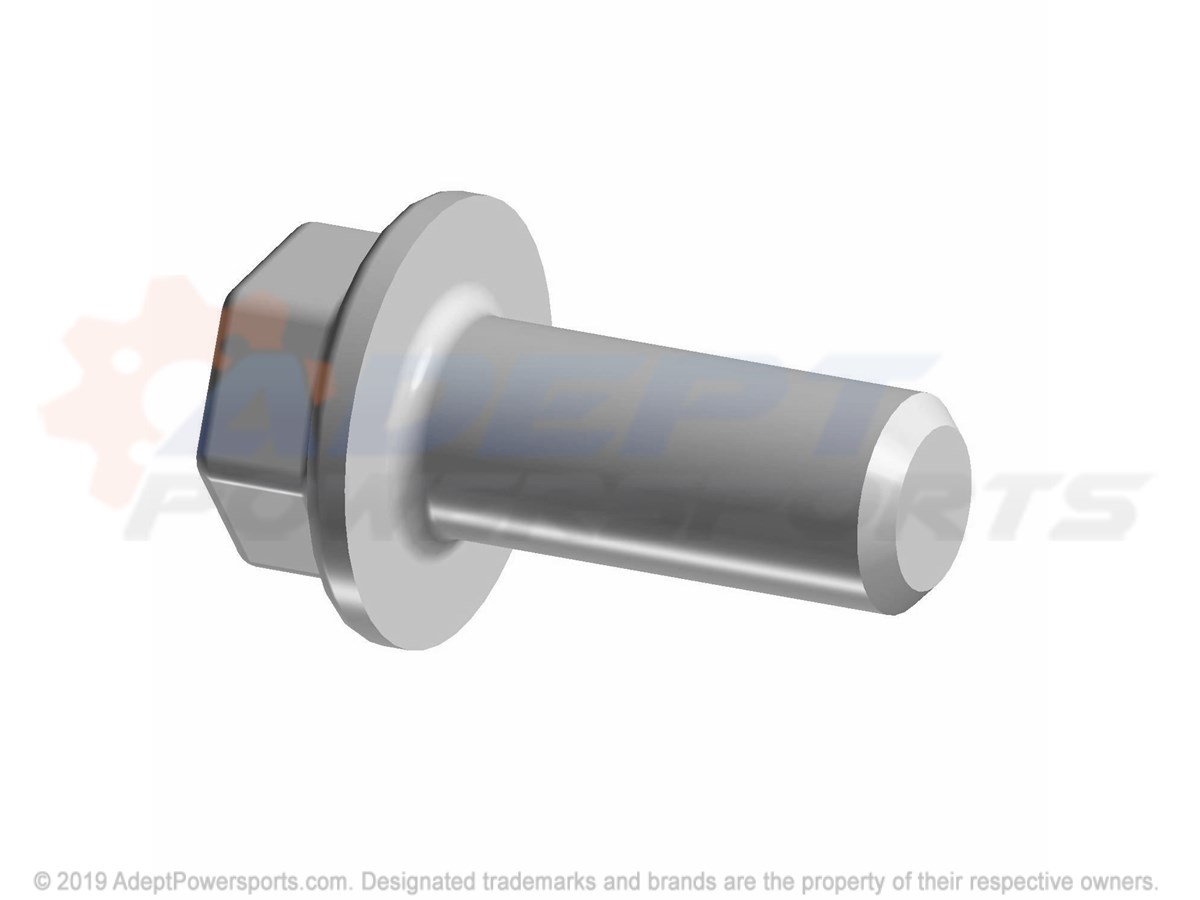

Polaris 7517599 Bolt /Washer.88

BOLT /WASHER.88

Part #: 7517599 Required per assembly: 3 Note: Asm., Bolt/Washer [Incl. 3,4]
Currently Not Available
6
Polaris 7512094 Screw (For Ref. 33 W/O Inserts)

SCREW (FOR REF. 33 W/O INSERTS)

Part #: 7512094 Required per assembly: 8 Note: Screw
$2.99
$1.73
-
+
Add to cart
7
Polaris 5438142-070 Cover, Clutch, Outer, Black

COVER, CLUTCH, OUTER, BLACK

Part #: 5438142-070 Required per assembly: 1 Note: Cover, Clutch, Outer, Black
Currently Not Available
8

SEAL, CLUTCH, COVER, OUTER

Part #: 5526450 Required per assembly: 1 Note: Seal, Cover, Clutch, Outer
Currently Not Available
9
Polaris 7518894 Bolt

BOLT

Part #: 7518894 Required per assembly: 3
Currently Not Available
10

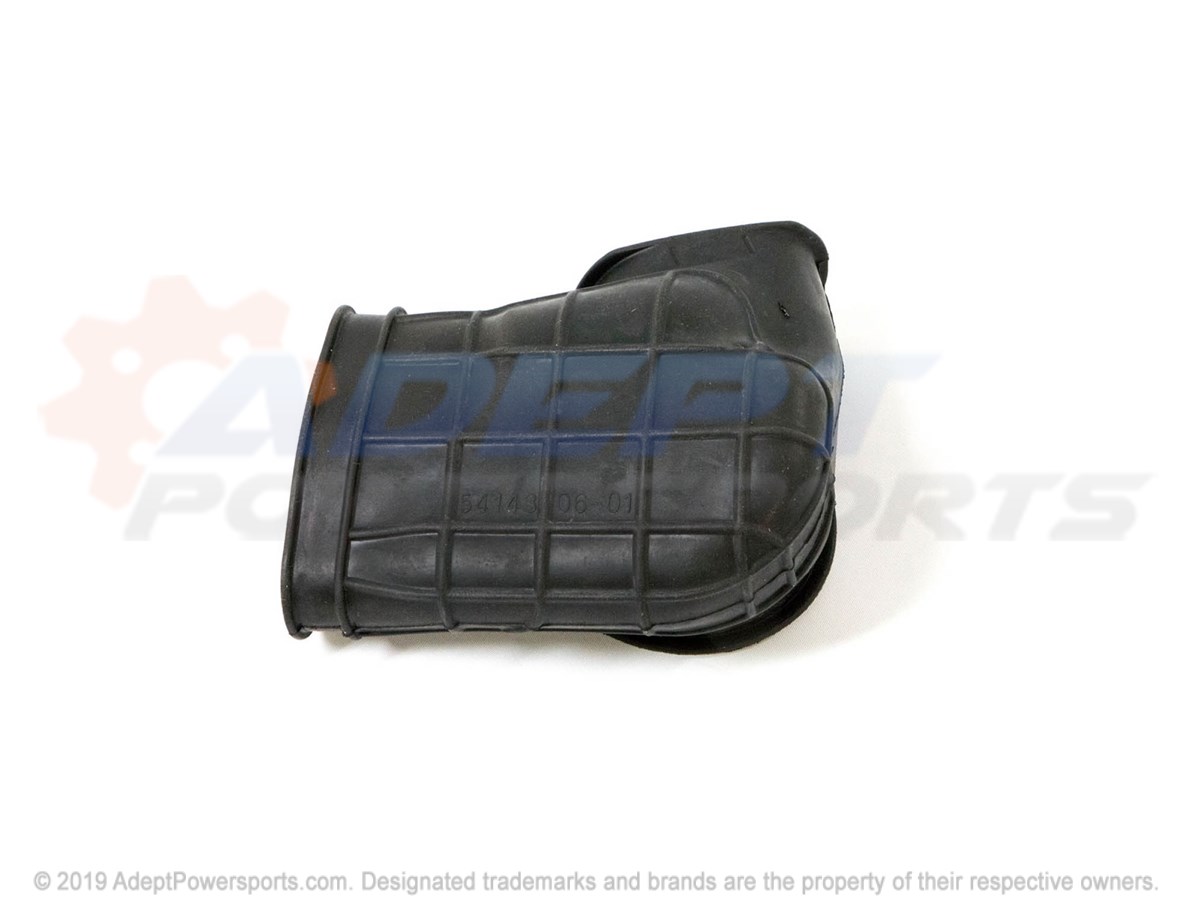

Polaris 5414306 Boot-Clutch Inlet

BOOT-CLUTCH INLET

Part #: 5414306 Required per assembly: 1
Currently Not Available
11
Polaris 7080707 Clamp, Band, Narrow

CLAMP, BAND, NARROW

Part #: 7080707 Required per assembly: 3 Note: Clamp, Narrow Band
$4.99
$2.88
-
+
Add to cart
11
Polaris 7080707 Clamp, Band, Narrow

CLAMP, BAND, NARROW

Part #: 7080707 Required per assembly: 3 Note: Clamp, Narrow Band
$4.99
$2.88
-
+
Add to cart
12
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
