OEM Parts Polaris 2014 Polaris Scrambler XP 1000 HO EPS Rear Cab And Heat Shields - A14gh9eaw

2014 Polaris Scrambler XP 1000 HO EPS A14GH9EAW - Rear Cab And Heat Shields - A14gh9eaw

Rear Cab and Heat Shields - A14GH9EAW Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-

ASSEMBLY, CAB, REAR

Part #: 2634789 Required per assembly: 1
Currently Not Available
1
Polaris 5256534 Shield, Heat

SHIELD, HEAT

Part #: 5256534 Required per assembly: 1
Currently Not Available
2

ASSEMBLY, CAB, REAR, LH, WHITE, LIGHTNING

Part #: 2635065-599 Required per assembly: 1
Currently Not Available
3

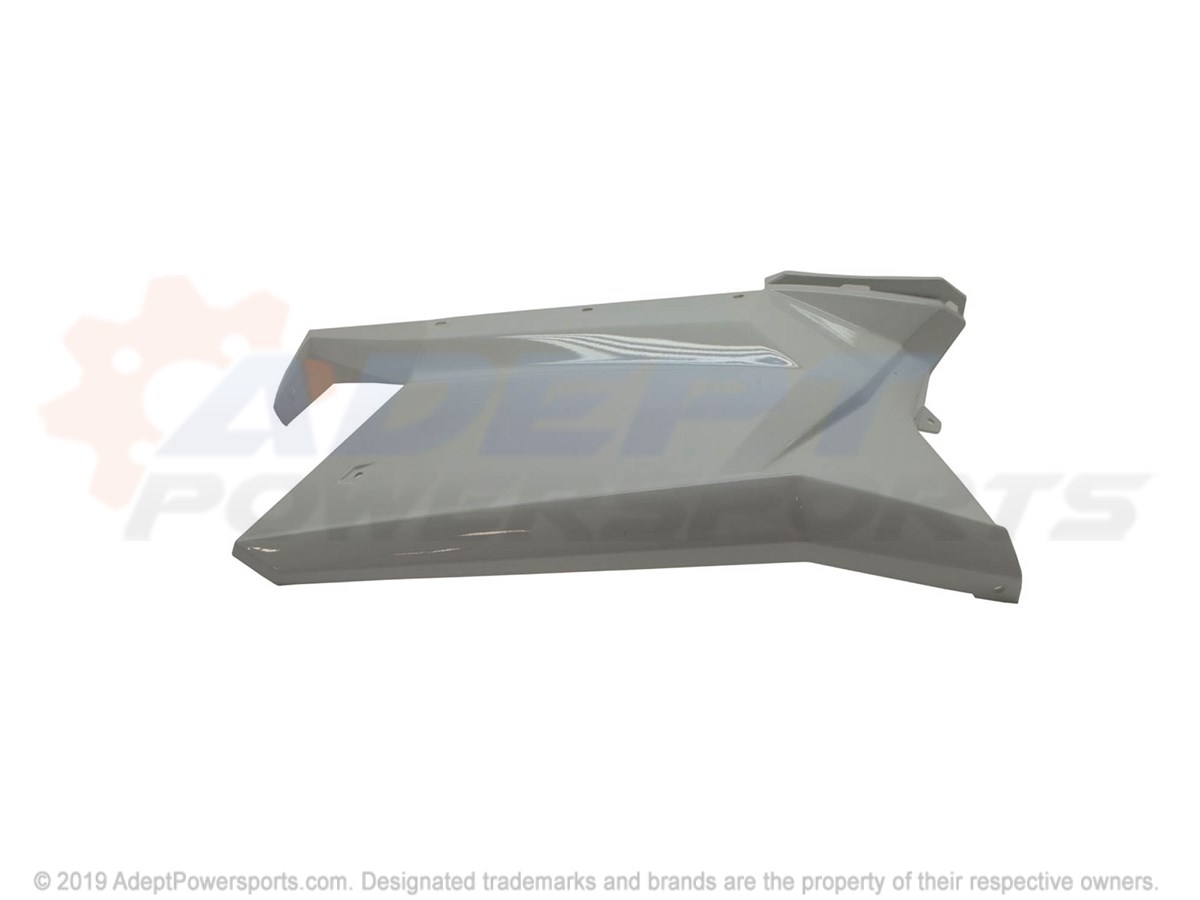

Polaris 5439706-599 Cab, Rear, Rh, White, Lightning

CAB, REAR, RH, WHITE, LIGHTNING

Part #: 5439706-599 Required per assembly: 1
Currently Not Available
4
Polaris 5813924 Foil, Fiber, Box, Rear

FOIL, FIBER, BOX, REAR

Part #: 5813924 Required per assembly: 1
Currently Not Available
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 15
$2.99
$1.73
-
+
Add to cart
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 15
$2.99
$1.73
-
+
Add to cart
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 15
$2.99
$1.73
-
+
Add to cart
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 15
$2.99
$1.73
-
+
Add to cart
6
Polaris 5259457 Shield, Heat, Exhaust, Crosstube

SHIELD, HEAT, EXHAUST, CROSSTUBE

Part #: 5259457 Required per assembly: 1
Currently Not Available
7

FOIL-ARIBOX, RH

Part #: 5812111 Required per assembly: 1
Currently Not Available
8
Polaris 5814112 Shield, Heat, Foil, Storage, Rh

SHIELD, HEAT, FOIL, STORAGE, RH

Part #: 5814112 Required per assembly: 1
Currently Not Available
9
Polaris 5814113 Shield, Heat, Foil, Frame

SHIELD, HEAT, FOIL, FRAME

Part #: 5814113 Required per assembly: 2
Currently Not Available
