OEM Parts Polaris 2014 Polaris Sportsman 850 WV Seat - A14yn8eaj/Eat

2014 Polaris Sportsman 850 WV A14YN8EAJ/EAT - Seat - A14yn8eaj/Eat

Seat - A14YN8EAJ/EAT Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

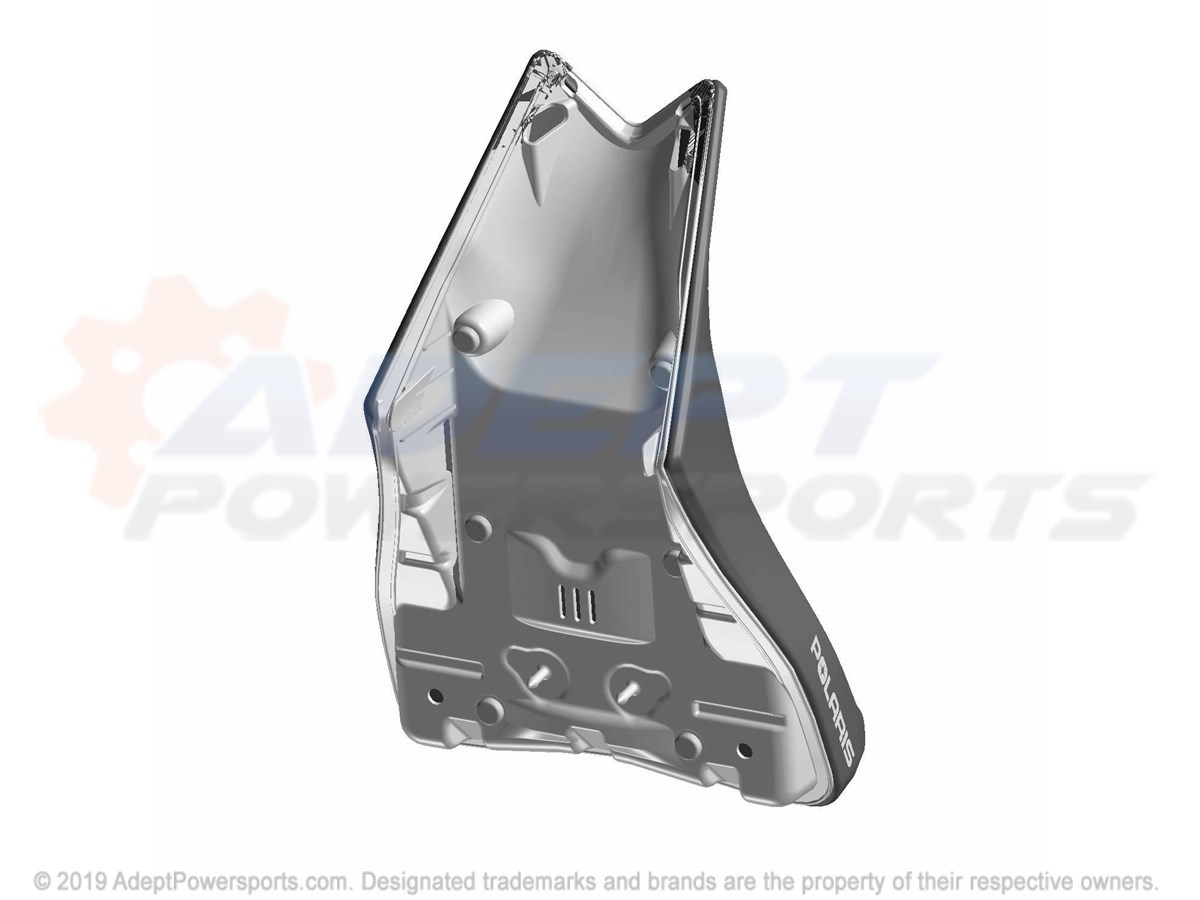

Polaris 2686144-070 Assembly, Seat, Stx, Blk

ASSEMBLY, SEAT, STX, BLK

Part #: 2686144-070 Required per assembly: 1 Note: INCL. 5, COVERING
Currently Not Available
1

ASSEMBLY, COVER, WHITE, DECAL

Part #: 2686157 Required per assembly: 1
Currently Not Available
2

GROMMET, SEAT, LATCH

Part #: 5413691 Required per assembly: 2
Currently Not Available
3
Polaris 5412067 Bumper-Rubber

BUMPER-RUBBER

Part #: 5412067 Required per assembly: 6 Note: Bumper, Rubber
Currently Not Available
4
Polaris 5250682 Bracket, Seat, Base

BRACKET, SEAT, BASE

Part #: 5250682 Required per assembly: 2
Currently Not Available
5
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
5
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 4
Currently Not Available
