Front Bumper And Mounting - A14zn5efm replacement parts for 2014 Polaris Sportsman Forest 550

OEM Parts Polaris 2014 Polaris Sportsman Forest 550 Front Bumper And Mounting - A14zn5efm

Front Bumper and Mounting - A14ZN5EFM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

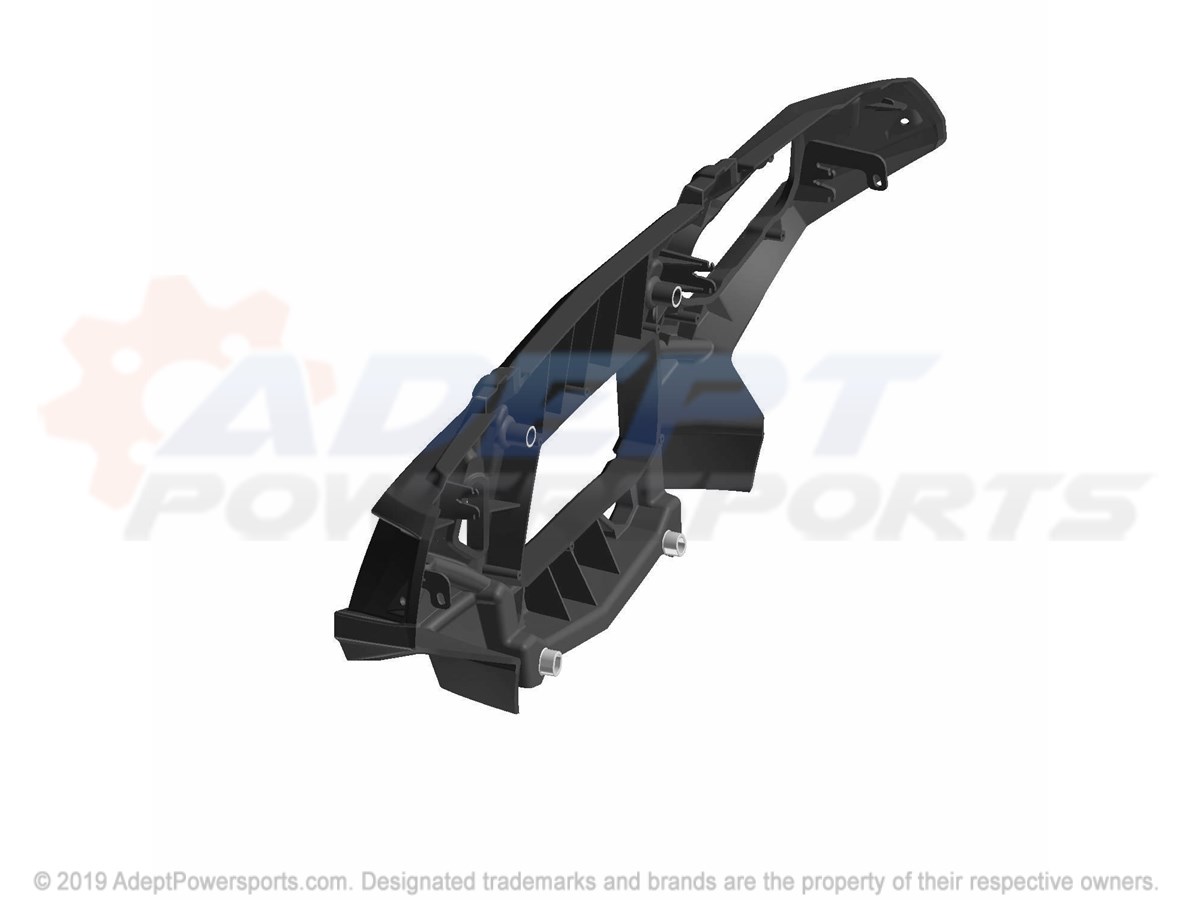

1	BUMPER, FRONT, BLACK Part #: 5435807-070 Required per assembly: 1 Currently Not Available
2	COVER-FANG FRONT BLK INT L Part #: 5438342-070 Required per assembly: 1 Currently Not Available

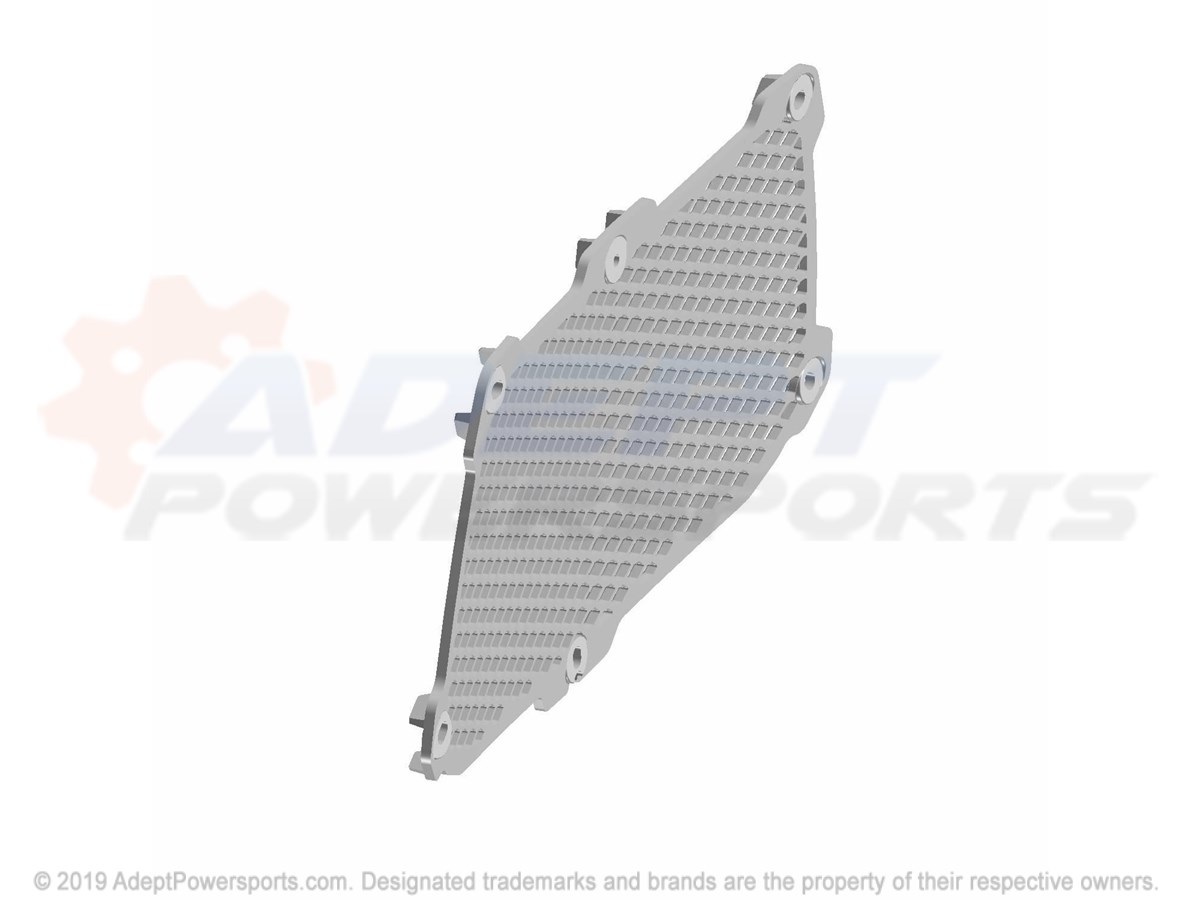

3	SCREEN, RADIATOR, BLACK Part #: 5437424-070 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
5	SCREW Part #: 7512026 Required per assembly: 6 Note: Screw Currently Not Available
6	BOLT Part #: 7518677 Required per assembly: 4 Currently Not Available
6	BOLT Part #: 7518677 Required per assembly: 4 Currently Not Available
7	WASHER Part #: 7556216 Required per assembly: 4 Currently Not Available
7	WASHER Part #: 7556216 Required per assembly: 4 Currently Not Available
8	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
8	RIVET Part #: 7661855 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
9	NUT, NYLOK Part #: 7547144 Required per assembly: 4 ~~$1.99~~ $1.15 - + Add to cart
