Transmission replacement parts for 2014 Suzuki LT-Z400

OEM Parts Suzuki 2014 Suzuki LT Z400 Transmission

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SHAFT, COUNTER, (NT:13) Part #: 24120-07G00 Required per assembly: 1 $313.57 $282.21 - + Add to cart
2	GEAR, 2ND, DRIVE, (NT:18) Part #: 24221-33H00 Required per assembly: 1 Not Available
3	GEAR, 3RD, DRIVE Part #: 24231-33H10 Required per assembly: 1 Note: NT:21 $160.81 $144.73 - + Add to cart
4	GEAR, 4TH, DRIVE, (NT:23) Part #: 24241-33H00 Required per assembly: 1 Not Available
5	GEAR, 5TH, DRIVE, (NT:26) Part #: 24251-33H00 Required per assembly: 1 Not Available
6	WASHER (25.1X31X1.0) Part #: 09167-25012 Required per assembly: 1 $4.03 $3.63 - + Add to cart
7	WASHER, 2ND, (17X30X1.0) Part #: 09181-17223 Required per assembly: 1 Note: WASHER (17X30X1.0); $3.79 $3.41 - + Add to cart
8	WASHER, SHIFT, CAM, SPRING Part #: 09181-25139 Required per assembly: 2 Note: 25X32X1.0 $3.61 $3.25 - + Add to cart
9	BEARING, LH, (17X40X12) Part #: 09262-17027 Required per assembly: 1 Note: LH $36.53 $32.88 - + Add to cart
10	CIRCLIP Part #: 09380-25003 Required per assembly: 2 $3.89 $3.50 - + Add to cart
11	BEARING, CNTR, SHAFT, RH Part #: 09262-25122 Required per assembly: 1 Note: RH $47.90 $40.94 - + Add to cart
12	DRIVE SHAFT Part #: 24130-07G00 Required per assembly: 1 $235.44 $211.90 - + Add to cart
13	GEAR, 1ST, DRIVEN, (NT:33) Part #: 24311-07G00 Required per assembly: 1 $129.31 $116.38 - + Add to cart
14	GEAR, 2ND, DRIVEN, (NT:30) Part #: 24321-33H00 Required per assembly: 1 Not Available
15	GEAR, 3RD, DRIVEN, (NT:28) Part #: 24331-33H00 Required per assembly: 1 $136.29 $122.66 - + Add to cart
16	BUSH Part #: 24332-24510 Required per assembly: 1 $20.17 $18.15 - + Add to cart
17	GEAR, 4TH, DRIVEN, (NT:23) Part #: 24341-33H00 Required per assembly: 1 Not Available
18	GEAR, 5TH, DRIVEN, (NT:22) Part #: 24351-33H00 Required per assembly: 1 Not Available
19	GEAR, REVERSE, DRIVEN, (NT:28) Part #: 24571-07G01 Required per assembly: 1 $127.53 $114.78 - + Add to cart
20	DOG, REVERSE Part #: 24581-07G00 Required per assembly: 1 $63.18 $54.01 - + Add to cart
21	BUSH, 3RD, DRIVEN Part #: 29215-07G00 Required per assembly: 1 $24.00 $20.52 - + Add to cart
22	LOCK WASHER Part #: 09167-25016 Required per assembly: 1 $3.91 $3.52 - + Add to cart
23	LOCK WASHER Part #: 09167-25016 Required per assembly: 1 $3.91 $3.52 - + Add to cart
24	WASHER, 2ND, (17X30X1.0) Part #: 09181-17223 Required per assembly: 1 Note: RH $3.79 $3.41 - + Add to cart
25	WASHER (20X30X1.0) Part #: 09181-20195 Required per assembly: 1 Note: LH $3.13 $2.82 - + Add to cart
26	WASHER, 2ND, (25X34X1.0) Part #: 09181-25167 Required per assembly: 1 Note: SHIM, SEC DRIVEN; 25X34X1.00,MODEL K3/K4/K5 $3.97 $3.57 - + Add to cart
27	BEARING, DRIVE, SHAFT, LH Part #: 09262-25125 Required per assembly: 1 Note: LH $75.19 $64.28 - + Add to cart
28	SEAL, DRIVE, SHAFT, OIL Part #: 09283-25086 Required per assembly: 1 Note: 25X38X6 $52.63 $45.00 - + Add to cart
29	BUSH, 1ST, DRIVEN Part #: 09300-20033 Required per assembly: 1 $20.50 $18.45 - + Add to cart
30	BUSH Part #: 09300-25020 Required per assembly: 1 $17.71 $15.94 - + Add to cart
31	CIRCLIP Part #: 09380-25003 Required per assembly: 2 $3.89 $3.50 - + Add to cart
32	CIRCLIP Part #: 09380-25003 Required per assembly: 1 $3.89 $3.50 - + Add to cart
33	BEARING Part #: 09262-17023 Required per assembly: 1 Note: RH $21.01 $17.96 - + Add to cart
34	RETAINER Part #: 24741-05G00 Required per assembly: 1 $7.96 $7.16 - + Add to cart
35	SCREW (6X12) Part #: 09126-06011 Required per assembly: 2 Note: SCREW, RETAINER LH; $2.53 $2.28 - + Add to cart
36	RETAINER, DRIVE, SHAFT, OIL, SEA Part #: 24751-07G00 Required per assembly: 1 $9.37 $8.43 - + Add to cart
37	BOLT, RETAINER Part #: 09126-06007 Required per assembly: 2 Note: BOLT, RETAINER (6X14); $2.53 $2.28 - + Add to cart
38	SHAFT, REVERSE, IDLE Part #: 24551-05G00 Required per assembly: 1 Not Available
39	GEAR, REVERSE, IDLE, (NT:24) Part #: 24561-07G00 Required per assembly: 1 $102.86 $92.57 - + Add to cart
40	BUSH Part #: 24562-05G00 Required per assembly: 1 $21.14 $19.03 - + Add to cart
41	WASHER, REVERSE, RH Part #: 09181-17195 Required per assembly: 1 Note: WASHER (17X28X1.0); $3.93 $3.54 - + Add to cart
42	WASHER (17X36X1.0) Part #: 09181-17021 Required per assembly: 1 Note: RH $4.14 $3.73 - + Add to cart
43	WAVE WASHER Part #: 09164-22011 Required per assembly: 1 $6.37 $5.73 - + Add to cart
44	CIRCLIP Part #: 08331-31179 Required per assembly: 1 $49.55 $42.37 - + Add to cart

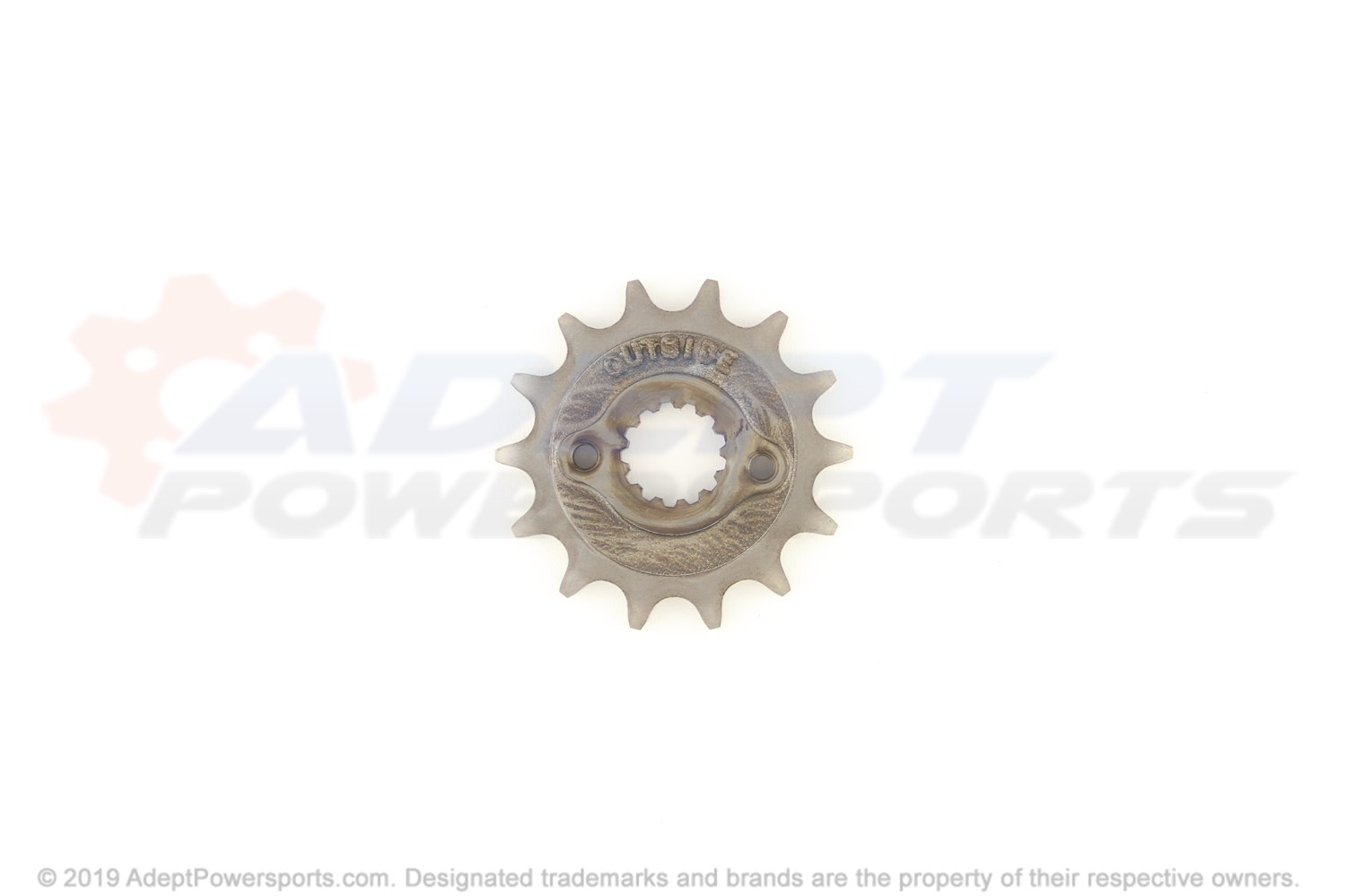

45	SPROCKET, ENGINE, (NT:14) Part #: 27511-07G00 Required per assembly: 1 $38.99 $33.33 - + Add to cart
46	PLATE, SPROCKET Part #: 27512-07G00 Required per assembly: 1 $5.20 $4.68 - + Add to cart
47	CHAIN, ASSEMBLY, (RK520SM0Z10S, 96L) Part #: 27600-43B20-096 Required per assembly: 1 $153.69 $131.39 - + Add to cart
48	JOINT SET Part #: 27620-43B20 Required per assembly: 1 Note: OPT $22.80 $20.52 - + Add to cart
49	BOLT Part #: 09111-06039 Required per assembly: 2 $7.55 $6.80 - + Add to cart
